WIRING HARNESS

GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

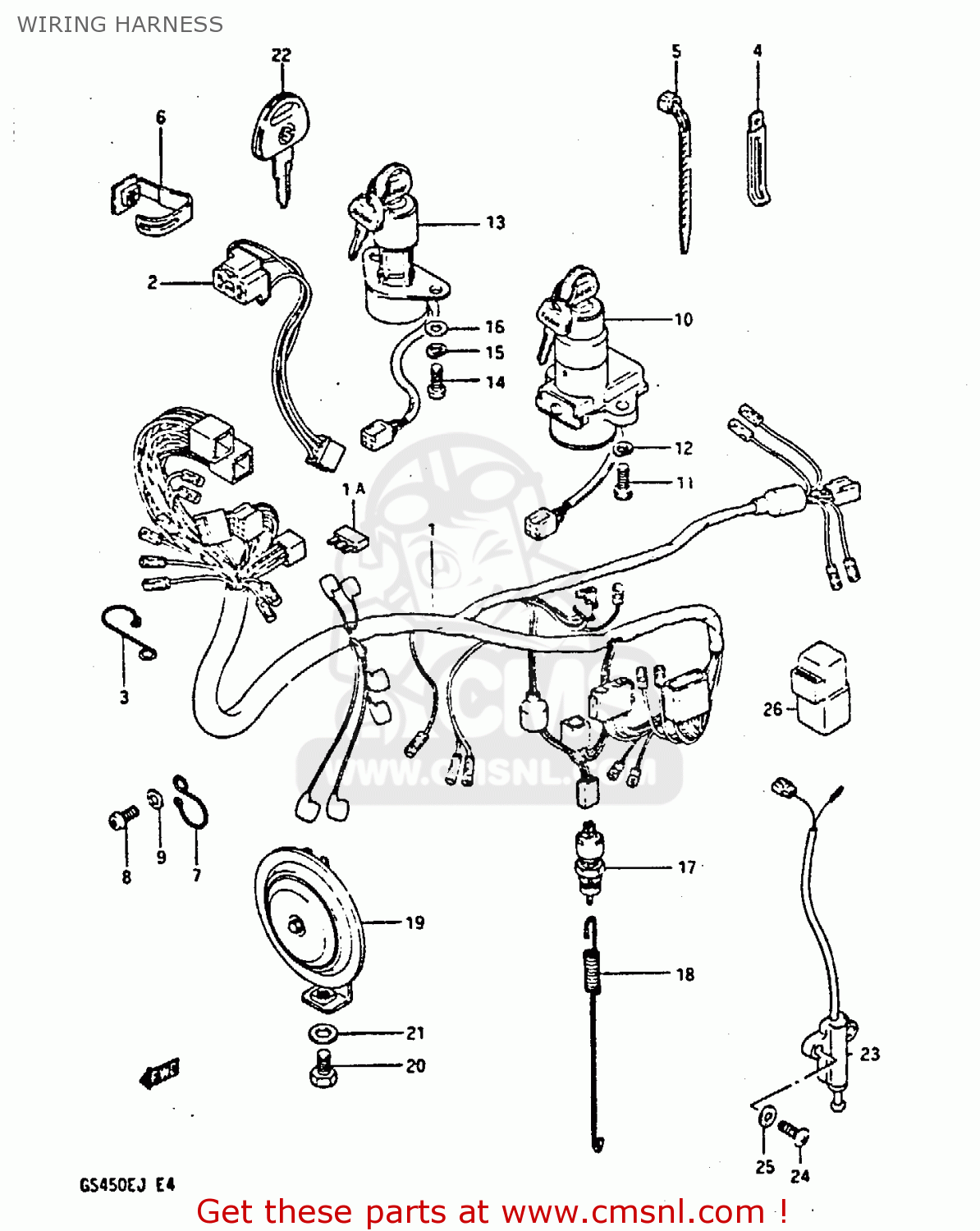

Wiring harness diagram GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

WIRING HARNESS GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
WIRING HARNESS GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
WIRING HARNESS GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
prices are in EUR
ref
part #
description
quantity
1-1
3661044410
ref: 1-1
MODEL E/F/G/H
WIRING HARNESS
€ 118.50
1-2
3661044450
ref: 1-2
MODEL J
WIRING HARNESS
€ 0.00
1A
3661138A00
ref: 1A
MODEL J
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
2
3685330500
ref: 2
LEAD WIRE,HEADLAMP
3685330500
€ 13.00
3
3661944401
ref: 3
CLIP,WIRING HARNESS
€ 0.00
4-1
0940406401
ref: 4-1
MODEL J
CLAMP L:35
0940406401
€ 2.50
4-2
0940410403
ref: 4-2
CLAMP
€ 2.50
5-1
0940714403
ref: 5-1
CLAMP(L:125)
0940714403
€ 2.50
5-2
0940714403
ref: 5-2
CLAMP(L:125)
0940714403
€ 2.50
6
3665033201
ref: 6
CLAMP,WIRING HARNESS
€ 0.00
7
3661944002
ref: 7
CLIP,WIRING HARNESS
3661944002
€ 2.50
8
0211206125
ref: 8
SCREW
0211206125
€ 1.50
9
0832221064
ref: 9
WASHER
0832221064
€ 2.00
10
3710031301
ref: 10
E2, E4, E6, E21, E34
LOCK ASSEMBLY,STEERING
€ 108.50
11
3715247011
ref: 11
BOLT
€ 3.00
12
0832121067
ref: 12
WASHER,LOCK
0832121067
€ 2.50
13
3711005301
ref: 13
E15, E22, E77
SWITCH ASSY,IGNITION
3711005301
€ 121.00
14
0211206164
ref: 14
SCREW
€ 2.00
15
0832121064
ref: 15
WASHER,LOCK
0832121064
€ 2.00
16
0832221064
ref: 16
WASHER
0832221064
€ 2.00
17
3774024A00
ref: 17
FROM 37740-07900
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
18
0944306035
ref: 18
SPRING
0944306035
€ 4.50
19-1
3850044410
ref: 19-1
HORN ASSEMBLY
3850044410
€ 45.00
19-2
3850044490
ref: 19-2
E4, E34, E39, E77
HORN
€ 45.00
20
0110708125
ref: 20
BOLT
€ 1.50
21
0832211084
ref: 21
WASHER
0832211084
€ 1.50
22
3714647010
ref: 22
OPT
KEY,BLANK
3714647010
€ 15.00
23
3784044A10
ref: 23
MODEL J
SWITCH ASSEMBLY,SIDE STAND
3784044A10
€ 75.50
24
0211206205
ref: 24
SCREW
€ 2.00
25
0832221064
ref: 25
WASHER
0832221064
€ 2.00
26
3874024B10
ref: 26
MODEL J
RELAY ASSEMBLY
3874024B10
€ 37.50
