CYLINDER

GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

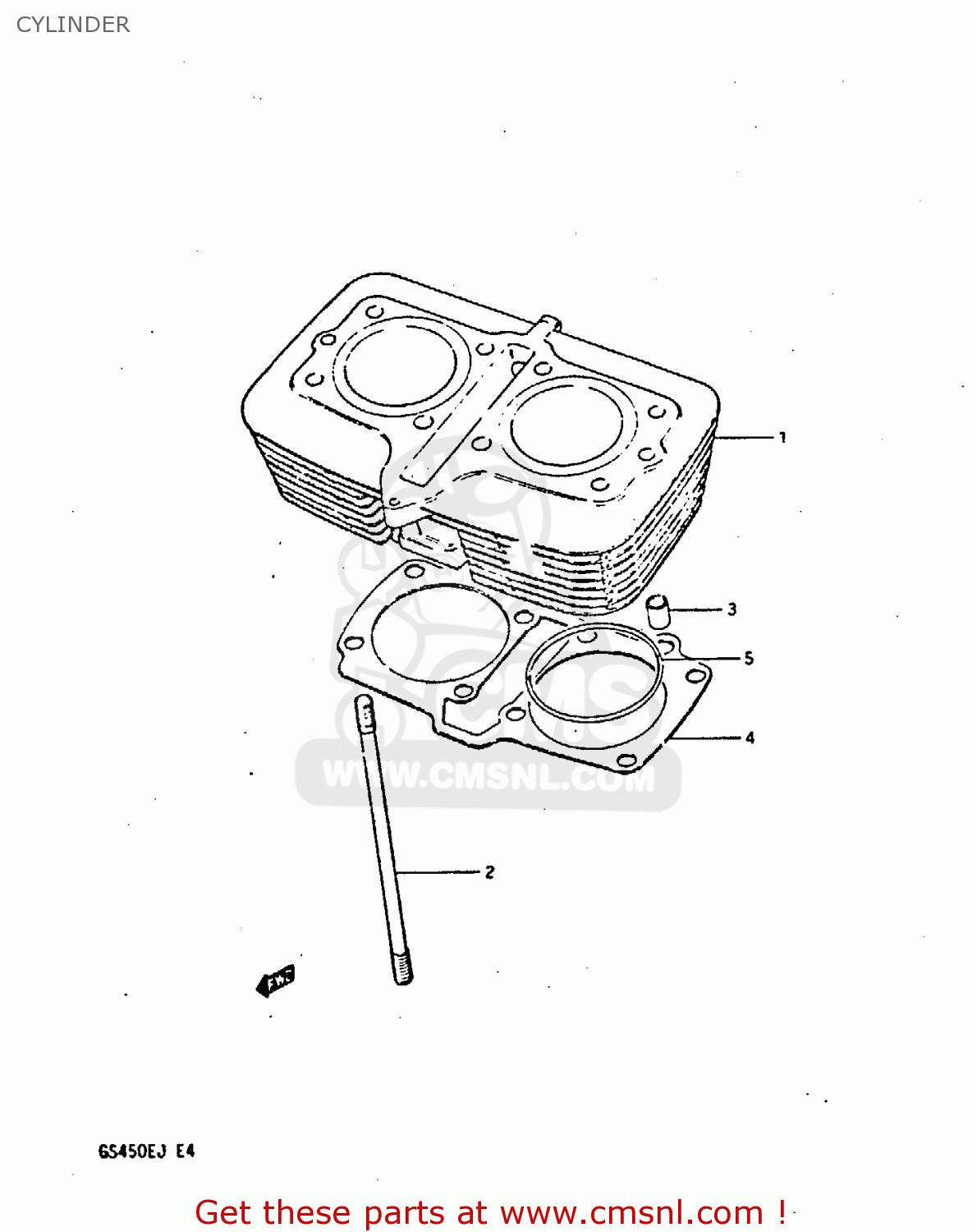

Cylinder diagram GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

CYLINDER GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

CYLINDER GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

prices are in EUR

ref

part #

description

quantity

1

1121044110
ref: 1

CYLINDER

€ 522.00

2

0910810071
ref: 2

STUD

€ 9.00

3

0421111189
ref: 3

PIN

€ 2.00

4

1124144100
ref: 4

GASKET,CYLINDER (MCA)

€ 12.50

5

0928074002
ref: 5

O RING(D:2,ID:74)

€ 6.00
