AIR CLEANER
GS450S 1988 (J) (E04 E22 E34 E77)

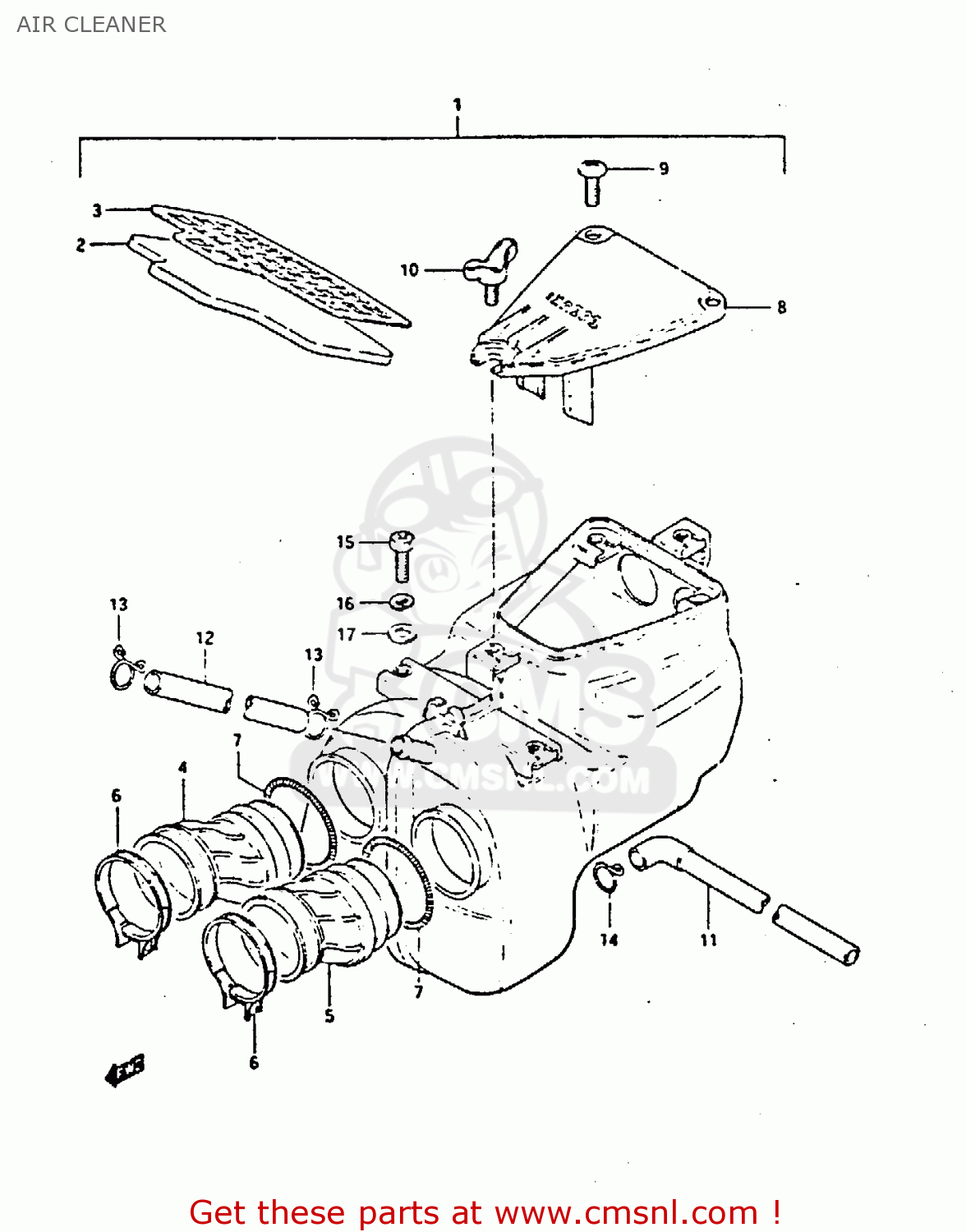

Air cleaner diagram GS450S 1988 (J) (E04 E22 E34 E77)
AIR CLEANER GS450S 1988 (J) (E04 E22 E34 E77)
×
prices are in EUR
ref
part #
description
quantity
1
1370044502
ref: 1
CLEANER ASSEMBLY,AIR
€ 136.50
2
1378144500
ref: 2
FILTER
€ 18.00
3
1379244500
ref: 3
HOLDER,OUTER
€ 14.50
4
1388144500
ref: 4
TUBE,OUTLET,R
€ 22.50
5
1388244500
ref: 5
TUBE,OUTLET,L
€ 13.00
6
0940256207
ref: 6
CLAMP
€ 3.50
7
1393102100
ref: 7
CLAMP,CLEANER SIDE
€ 4.00
8
1374044500
ref: 8
CAP,AIR CLEANER
€ 49.50
9
0214206167
ref: 9
SCREW
€ 2.00
10
1383144500
ref: 10
BOLT, WING
€ 2.50
11
1387021291
ref: 11
DRAIN TUBE
€ 16.50
12
1385100260
ref: 12
TUBE,BREATHER
€ 13.50
13
1387914301
ref: 13
CLAMP
€ 2.00
14
1382400A00
ref: 14
CLIP
€ 2.50
15
0912806011
ref: 15
SCREW(6X12)
€ 3.00
16
0832121067
ref: 16
WASHER,LOCK
€ 2.50
17
0832221067
ref: 17
WASHER
€ 2.00
