CRANKSHAFT
GS450S 1988 (J) (E04 E22 E34 E77)

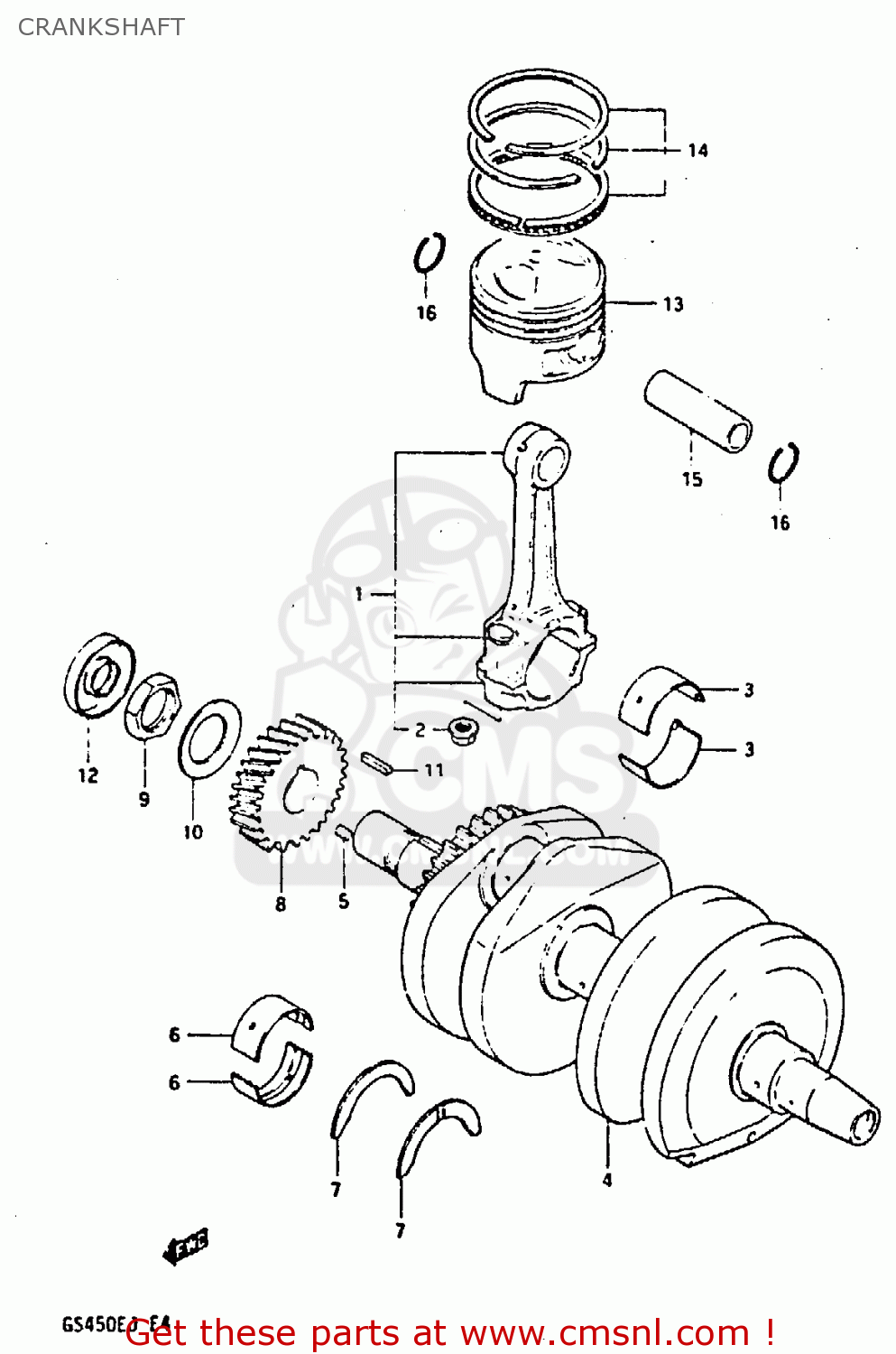

Crankshaft diagram GS450S 1988 (J) (E04 E22 E34 E77)
CRANKSHAFT GS450S 1988 (J) (E04 E22 E34 E77)
×
prices are in EUR
ref
part #
description
quantity
1
1216044100
ref: 1
ROD ASSEMBLY,CONNECTING
€ 135.50
2
0915908033
ref: 2
NUT
€ 2.50
3-1
1216444110010
ref: 3-1
BEARING,CRANK PIN
€ 13.50
3-2
1216444110020
ref: 3-2
BEARING,CRANK PIN
€ 14.50
3-3
1216444110030
ref: 3-3
BEARING,CRANK PIN
€ 14.50
3-4
1216444110040
ref: 3-4
METAL CRANK PIN
€ 15.00
3-5
1216444100025
ref: 3-5
OPT
BEARING,CRANK PIN(US:0.25)
€ 15.50
3-6
1216444100050
ref: 3-6
OPT
BEARING,CRANK PIN(US:0.5)
€ 14.50
4
1222044102
ref: 4
CRANKSHAFT
€ 1,167.50
5
0621103052
ref: 5
PIN 3X5
€ 1.50
6-1
1222944100010
ref: 6-1
METAL CRANKSHAFT
€ 10.50
6-2
1222944100020
ref: 6-2
METAL CRANKSHAFT
€ 11.00
6-3
1222944100030
ref: 6-3
METAL CRANKSHAFT
€ 11.00
6-4
1222944100040
ref: 6-4
METAL CRANKSHAFT
€ 11.00
6-5
1222944100025
ref: 6-5
OPT
BEARING,CRANKSHAFT(US:0.25)
€ 21.50
6-6
1222944100050
ref: 6-6
OPT
BEARING,CRANKSHAFT(US:0.5)
€ 9.50
7
1222844106
ref: 7
BEARING,CRANK THRUST
€ 8.50
8
2111144100
ref: 8
GEAR,PRIMARY DRIVE NO.28
€ 57.50
9
0914024007
ref: 9
NUT
€ 4.50
10
0916425001
ref: 10
WASHER
€ 4.50
11
0834131059
ref: 11
KEY
€ 3.00
12
0928322015
ref: 12
SEAL,OIL(22X40X8)
€ 10.50
13-1
1211144100
ref: 13-1
PISTON
€ 69.00
13-2
1211144100050
ref: 13-2
OPT
PISTON
€ 116.50
13-3
1211144100100
ref: 13-3
OPT
PISTON
€ 86.00
14-1
1214044110
ref: 14-1
RING SET,PISTON
€ 61.50
14-2
1214044110050
ref: 14-2
OPT
RING SET,PISTON (OS:0.5)
€ 33.00
14-3
1214044111100
ref: 14-3
OPT
RING SET,PISTON (OS:1.0)
€ 36.00
15
1215145501
ref: 15
PIN,PISTON (18MM)
€ 14.00
16
0938118002A
ref: 16
CIRCLIP,PISTON PIN
€ 1.50
