CLUTCH
GS450S 1988 (J) (E04 E22 E34 E77)

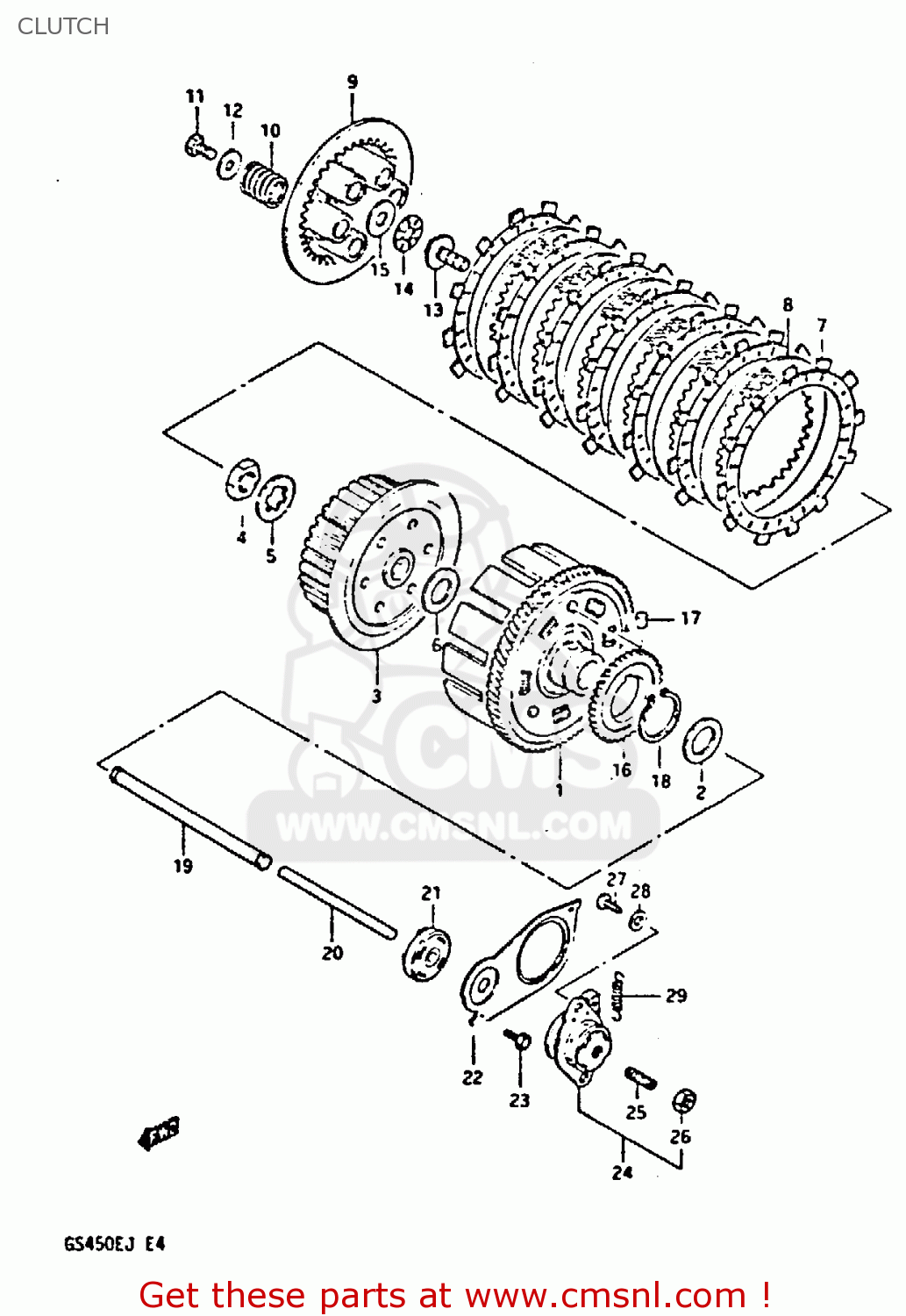

Clutch diagram GS450S 1988 (J) (E04 E22 E34 E77)
CLUTCH GS450S 1988 (J) (E04 E22 E34 E77)
×
prices are in EUR
ref
part #
description
quantity
1
2120044100
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 333.00
2
0821125381
ref: 2
WASHER
€ 3.00
3
2141144100
ref: 3
HUB,CLUTCH SLEEVE
€ 56.50
4
0914020002
ref: 4
NUT (20MM)
€ 3.50
5
0916720006
ref: 5
WASHER,LOCK
€ 3.00
6
0916020015
ref: 6
WASHER(20X44X3)
€ 4.50
7
2144137400
ref: 7
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
8
2145145000
ref: 8
PLATE,CLUTCH DRIVEN (NAS)
€ 10.50
9
2146216501
ref: 9
DISC,CLUTCH PRESSURE
€ 51.00
10
0944019013
ref: 10
SPRING
€ 5.50
11
0110706167
ref: 11
BOLT
€ 3.00
12
0916006020
ref: 12
WASHER
€ 2.00
13
2312144100
ref: 13
PIECE,CLUTCH PUSH
€ 21.50
14
0926315003
ref: 14
BEARING(15X28X2)
€ 7.00
15
0916015015
ref: 15
WASHER
€ 4.00
16
1632144001
ref: 16
GEAR,OIL PUMP DRIVE
€ 26.00
17
0926106002
ref: 17
PIN(6X6)
€ 1.50
18
0833131389
ref: 18
CIRCLIP
€ 2.50
19
2311044111
ref: 19
ROD,PUSH,R
€ 13.00
20
2311144111
ref: 20
ROD,CLUTCH PUSH
€ 13.50
21
0928506011
ref: 21
SEAL,OIL(6X34X10)
€ 9.50
22
2311744101
ref: 22
PLATE,CLUTCH PUSH ROD
€ 6.50
23
0110706127
ref: 23
BOLT
€ 2.00
24
2320044101
ref: 24
SCREW ASSY,CLUTCH RELEASE
€ 63.00
25
0913406010
ref: 25
SCREW(6X25)
€ 3.00
26
0831022067
ref: 26
NUT 6MM
€ 2.50
27
0311106168
ref: 27
SCREW
€ 1.50
28
0832221067
ref: 28
WASHER
€ 2.00
29
0944308001
ref: 29
SPRING
€ 3.00
