REAR BRAKE
GS450S 1988 (J) (E04 E22 E34 E77)

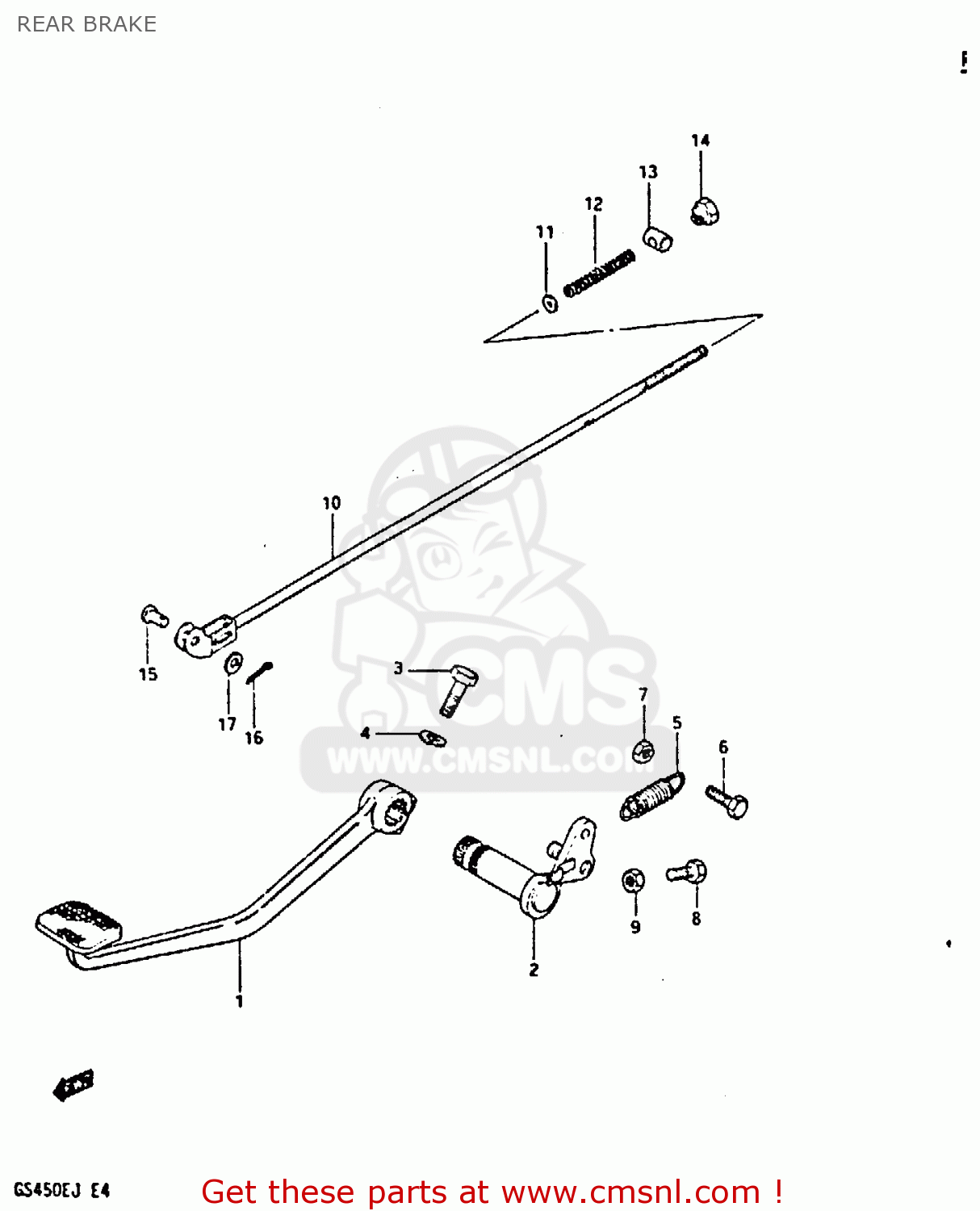

Rear brake diagram GS450S 1988 (J) (E04 E22 E34 E77)
REAR BRAKE GS450S 1988 (J) (E04 E22 E34 E77)
×
prices are in EUR
ref
part #
description
quantity
1
4311044401
ref: 1
PEDAL,BRAKE
€ 65.50
2
4312011501
ref: 2
ARM,BRAKE PEDAL
€ 21.00
3
0110708258
ref: 3
BOLT
€ 2.50
4
0832121088
ref: 4
LOCK WASHER
€ 2.00
5
0944314020
ref: 5
SPRING
€ 3.00
6
0110706257
ref: 6
BOLT
€ 2.00
7
0831011067
ref: 7
NUT 6MM
€ 2.50
8
0110706207
ref: 8
BOLT
€ 2.00
9
0831011067
ref: 9
NUT 6MM
€ 2.50
10
4330044401
ref: 10
ROD ASSY,RR BRAKE
€ 16.00
11
0832221067
ref: 11
WASHER
€ 2.00
12
0944009004
ref: 12
SPRING
€ 2.00
13
0920913005
ref: 13
PIN
€ 3.50
14
0915006009
ref: 14
NUT (6MM)
€ 3.50
15
0920006013
ref: 15
PIN(L:13.5)
€ 2.00
16
0411120208
ref: 16
PIN 20X20
€ 1.50
17
0832221067
ref: 17
WASHER
€ 2.00
