AIR CLEANER
GS500E 1991 (M) USA (E03)

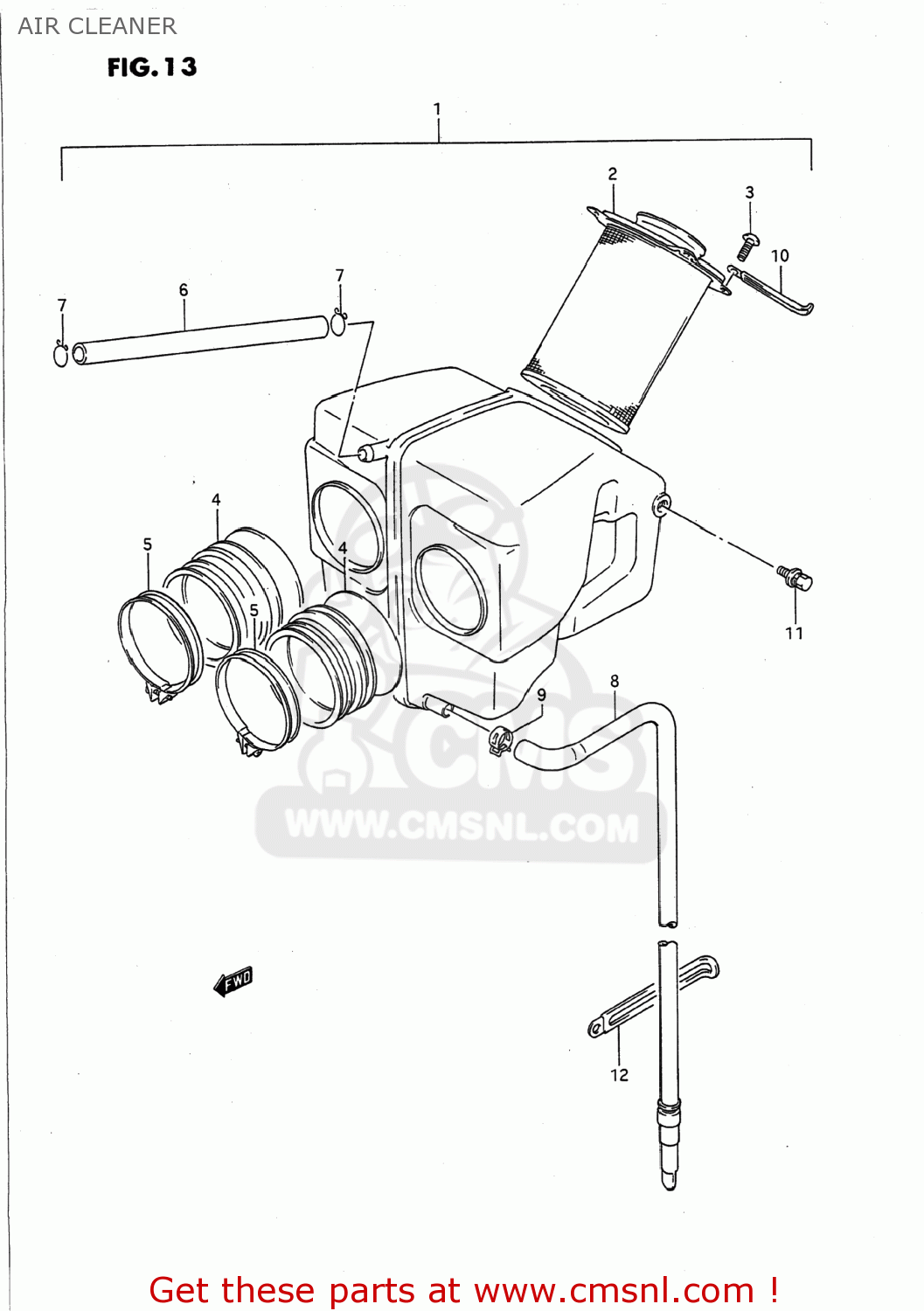

Air cleaner diagram GS500E 1991 (M) USA (E03)
AIR CLEANER GS500E 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370001D00
ref: 1-1
13700-01D02
CLEANER ASSEMBLY,AIR
€ 138.00
1-2
1370001D20
ref: 1-2
13700-01D02
CLEANER ASSEMBLY,AIR
€ 138.00
1-3
1370001D01
ref: 1-3
13700-01D02
CLEANER ASSEMBLY,AIR
€ 138.00
2
1378001D00
ref: 2
FILTER ASSY
€ 30.50
3
0214205087
ref: 3
SCREW
€ 2.00
4
1388101D00
ref: 4
13881-01D01
TUBE,OUTLET
€ 20.00
5
0940268208
ref: 5
CLAMP
€ 6.00
6-1
1385301D01
ref: 6-1
09352-11153-600
TUBE,BREATHER
€ 13.50
6-2
0935211153600
ref: 6-2
HOSE(11X15X600)
€ 13.50
7
0940114301
ref: 7
CLIP
€ 2.00
8-1
1387021411
ref: 8-1
13870-21458
DRAIN TUBE
€ 23.50
8-2
1387021428
ref: 8-2
13870-21458
DRAIN TUBE
€ 23.50
8-3
1387021628
ref: 8-3
TUBE,DRAIN
€ 23.50
8-4
1387021458
ref: 8-4
TUBE,DRAIN
€ 23.50
9-1
1382738B00
ref: 9-1
09401-13417
CLAMP
€ 2.50
9-2
1382400A00
ref: 9-2
09401-13409
CLIP
€ 2.50
9-3
0940113409
ref: 9-3
CLIP
€ 2.50
10-1
0940406404
ref: 10-1
09404-06433
CLAMP
€ 3.00
10-2
0940406413
ref: 10-2
09404-06432
CLAMP
€ 2.50
11-1
0911806088
ref: 11-1
BOLT 6X16
€ 0.00
11-2
0211276165
ref: 11-2
02112-7616A
VIS
€ 2.00
11-3
0211276163
ref: 11-3
02112-7616A
SCREW
€ 2.00
12-1
0940406426
ref: 12-1
09404-06433
CLAMP
€ 3.00
12-2
0940406433
ref: 12-2
CLAMP(L:80)
€ 3.00
