REAR FENDER

GS500E 1991 (M) USA (E03)

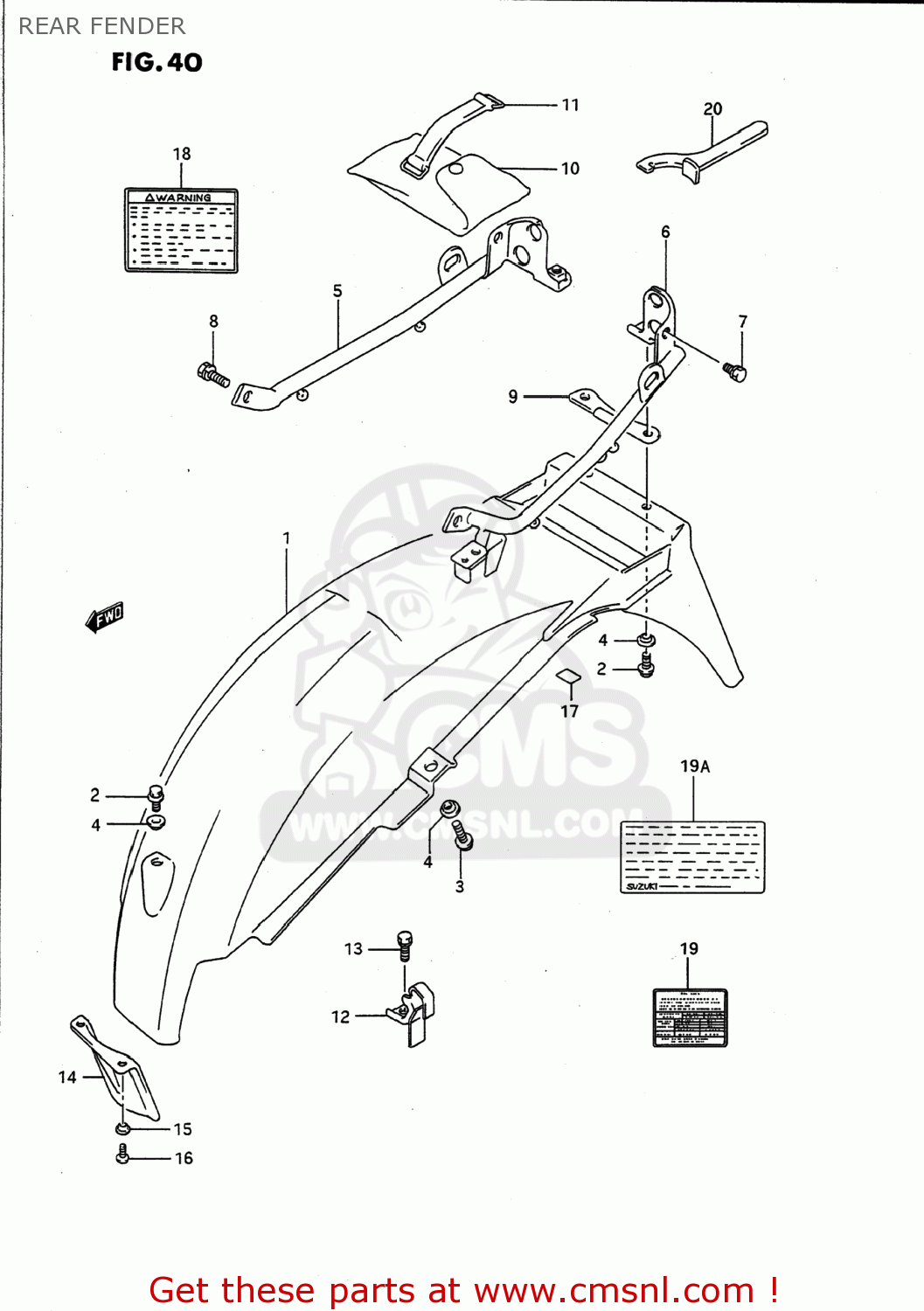

Rear fender diagram GS500E 1991 (M) USA (E03)

REAR FENDER GS500E 1991 (M) USA (E03)
REAR FENDER GS500E 1991 (M) USA (E03)
REAR FENDER GS500E 1991 (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6311101D30
ref: 1
63111-01D31-291
BODY,REAR FENDER
€ 20.50
2-1
0151706123
ref: 2-1
01550-0612A
BOLT
0151706123
€ 2.50
2-2
0155006123
ref: 2-2
01550-0612A
BOLT
0155006123
€ 2.50
3-1
0151706203
ref: 3-1
01550-0620A
BOLT,SIDE
€ 1.50
3-2
0155006203
ref: 3-2
01550-0620A
BOLT
0155006203
€ 2.50
3-3
0155006163
ref: 3-3
01550-0616A
BOLT
0155006163
€ 2.50
4-1
0916906037
ref: 4-1
WASHER
0916906037
€ 6.50
4-2
0916906011
ref: 4-2
WASHER
0916906011
€ 6.50
5-1
6321001D00
ref: 5-1
63210-01D10
BRACE,REAR FENDER
€ 73.50
5-2
6321001D10
ref: 5-2
BRACE,RR FENDER,R
6321001D10
€ 73.50
6-1
6322001D00
ref: 6-1
BRACE,REAR FENDER
€ 73.50
6-2
6322001D10
ref: 6-2
BRACE,RR FENDER,L
6322001D10
€ 73.50
7-1
0157008123
ref: 7-1
BOLT
€ 1.50
7-2
0151708126
ref: 7-2
01550-0812A
BOLT
€ 3.50
7-3
0155008123
ref: 7-3
01550-0812A
BOLT
0155008123
€ 3.50
8-1
0157008203
ref: 8-1
01570-0820A
BOLT
0157008203
€ 2.00
8-2
0151708206
ref: 8-2
01550-0820A
BOLT
€ 3.00
8-3
0155008203
ref: 8-3
01550-0820A
BOLT
0155008203
€ 3.00
9
4742501D00
ref: 9
PLATE,TOOL HOLDER
4742501D00
€ 4.50
10-1
0980020017
ref: 10-1
09800-21017
TOOL ASSY
€ 59.00
10-2
0980021017
ref: 10-2
TOOL ASSY
0980021017
€ 59.00
11
0946200046
ref: 11
BAND
0946200046
€ 4.50
12-1
9572001D00
ref: 12-1
HOLDER,HELMET
€ 7.00
12-2
9572001D00
ref: 12-2
HOLDER,HELMET
€ 7.00
13-1
0113706205
ref: 13-1
01570-0620A
BOLT
€ 2.50
13-2
0113706205
ref: 13-2
01570-0620A
BOLT
€ 2.50
13-3
0157006203
ref: 13-3
01570-0620A
BOLT
0157006203
€ 2.50
14
6341142A00
ref: 14
63411C42A00J000
GUARD,RR UNIT MUD
6341142A00
€ 3.50
15-1
0916906025
ref: 15-1
09169-06010
WASHER,LOCK
€ 3.00
15-2
0916906010
ref: 15-2
WASHER
0916906010
€ 3.00
16-1
0214206167
ref: 16-1
SCREW
0214206167
€ 2.00
16-2
0214206163
ref: 16-2
02142-0616A
SCREW
0214206163
€ 2.50
17
6311506C00
ref: 17
TAPE,RR FENDER
6311506C00
€ 7.00
18
6831940C00
ref: 18
68319-33E01
LABEL
6831940C00
€ 8.00
19
6833201D00
ref: 19
LABEL,TIRE AIR PRESSURE
6833201D00
€ 4.50
19A
6835326E00
ref: 19A
68353-26E02
LABEL
€ 3.50
20
0982200005
ref: 20
CLAMP
0982200005
€ 22.00
21
6838701D00
ref: 21
LABEL (VACUUM HOSE ROUTING)
€ 0.00
21
6838701D00
ref: 21
LABEL (VACUUM HOSE ROUTING)
€ 0.00
22-1
9901101D5003A
ref: 22-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
22-2
9901101D5103A
ref: 22-2
MANUAL, OWNER'S
€ 0.00
22-3
9901101D5203A
ref: 22-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 10.00
22-4
9901101D5303A
ref: 22-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 10.00
22-5
9901101D5403A
ref: 22-5
NO PRODUCT DESCRIPTION AVAILABLE
€ 10.00
22-6
9901101D5503A
ref: 22-6
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.00
22-7
9901101D5603A
ref: 22-7
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.00
22-8
9901101D5703A
ref: 22-8
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
22-8
9901101D5703A
ref: 22-8
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
