HEADLAMP (MODEL K/L/M/N/P)

GS500E 1991 (M) USA (E03)

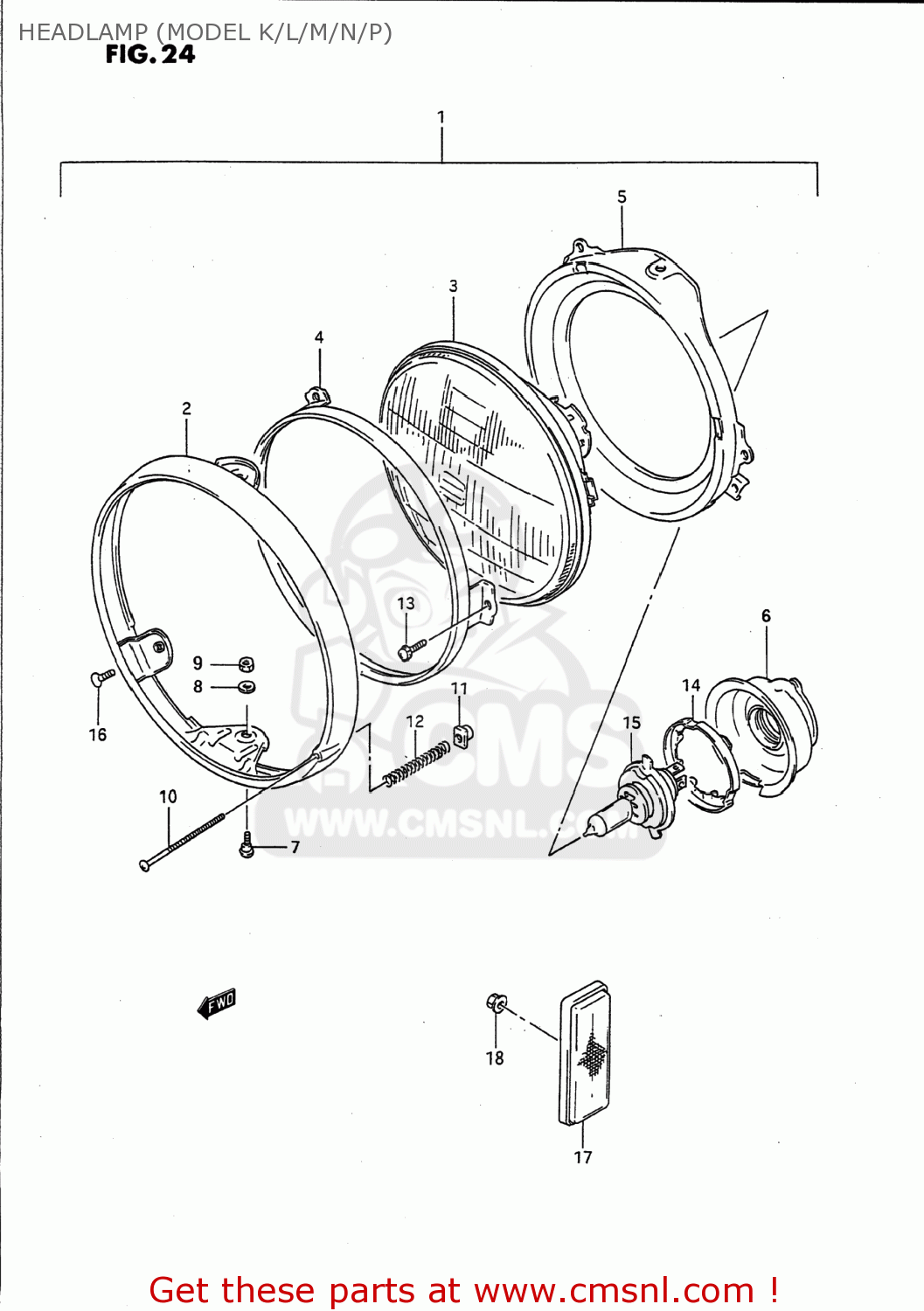

Headlamp (model k/l/m/n/p) diagram GS500E 1991 (M) USA (E03)

HEADLAMP (MODEL K/L/M/N/P) GS500E 1991 (M) USA (E03)
HEADLAMP (MODEL K/L/M/N/P) GS500E 1991 (M) USA (E03)
HEADLAMP (MODEL K/L/M/N/P) GS500E 1991 (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3510001D30
ref: 1
HEADLAMP ASSY
€ 244.50
2
3511101D20
ref: 2
RIM,HEADLAMP
3511101D20
€ 55.50
3
3512134430
ref: 3
LAMP UNIT
3512134430
€ 100.00
4
3512745030
ref: 4
RETAINING RING
3512745030
€ 19.50
5
3513045030
ref: 5
RING
3513045030
€ 29.50
6
3517345000
ref: 6
35173-20A01
COVER,HEADLAMP SOCKET
3517345000
€ 14.50
7
3518115611
ref: 7
H/LAMP LENS UNIT FITING SCRE
3518115611
€ 3.00
8
0832121057
ref: 8
08321-0105A
LOCK WASHER
0832121057
€ 2.00
9
0831011056
ref: 9
08310-0005A
NUT
€ 2.50
10
3515145030
ref: 10
35151-45900
SCREW,HEADLAMP ADJUST
3515145030
€ 4.00
11
3515215611
ref: 11
NUT
3515215611
€ 3.50
12
3515431900
ref: 12
SPRING,ADJUSTING
3515431900
€ 3.50
13
0211204106
ref: 13
02112-0410A
SCREWM4X0.7X10
€ 1.00
14
3513634400
ref: 14
SETTING,BULB
3513634400
€ 4.50
15
0947112060
ref: 15
BULB(12V60/55W,H4)
0947112060
€ 8.00
16
0213205127
ref: 16
02122-05127
SCREW 5X12
0213205127
€ 2.50
17
3595043431
ref: 17
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
18
0831626055
ref: 18
08316-2005A
NUT
0831626055
€ 2.00
