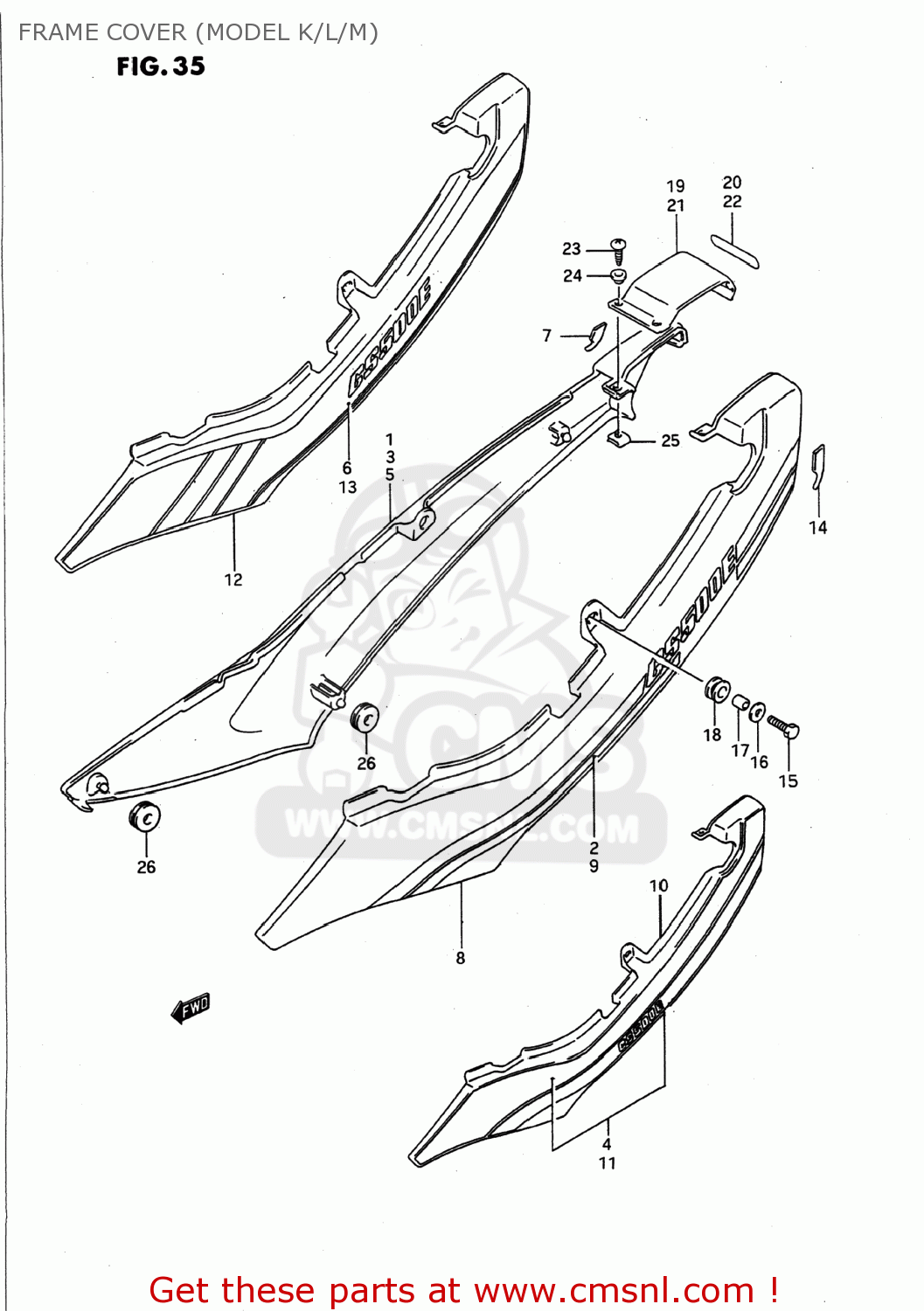

FRAME COVER (MODEL K/L/M)

ref

part #

description

quantity

1-1

4711001D1022R
ref: 1-1
47111-01D00

COVER,FRAME,RIGHT

€ 123.50

1-2

4711001D1033J
ref: 1-2
47111-01D00

COVER,FRAME,RIGHT

€ 123.50

2-1

6813001D103HP
ref: 2-1

TAPE SET,FRAME COVER,RIGHT

€ 46.00

2-2

6813001D103HS
ref: 2-2

TAPE SET,FRAME COVER,RIGHT

€ 0.00

3-1

4711001D3028V
ref: 3-1
47111-01D00

COVER,FRAME,RIGHT

€ 123.50

3-2

4711001D3033J
ref: 3-2
47111-01D00

COVER,FRAME,RIGHT

€ 123.50

4-1

6813001D303YR
ref: 4-1

TAPE SET,FRAME COVER,RIGHT

€ 76.50

4-2

6813001D303WG
ref: 4-2

TAPE SET,FRAME COVER,RIGHT

€ 51.00

5-1

4711001D600FL
ref: 5-1

COVER COMP,FRAME,RIGHT

€ 238.00

5-2

4711001D600ZK
ref: 5-2

COVER COMP,FRAME,RIGHT

€ 220.50

5-3

4711001D6028V
ref: 5-3
47111-01D00

COVER,FRAME,RIGHT

€ 123.50

5-4

4711001D6033J
ref: 5-4
47111-01D00

COVER,FRAME,RIGHT

€ 123.50

6-1

6813001D51F95
ref: 6-1

TAPE SET,FRAME COVER,RIGHT

€ 48.00

6-2

6813001D51F96
ref: 6-2

TAPE SET,FRAME COVER,RIGHT

€ 61.50

6-3

6813001D51F93
ref: 6-3

TAPE SET,FRAME COVER,RIGHT

€ 44.50

6-4

6813001D51F94
ref: 6-4

TAPE SET,FRAME COVER,RIGHT

€ 48.50

7

4711901D00
ref: 7

PROTECTOR,FRAME COVER,R

€ 7.00

8-1

4721001D1022R
ref: 8-1
47211-01D00

COVER,FRAME,LEFT

€ 124.50

8-2

4721001D1033J
ref: 8-2
47211-01D00

COVER,FRAME,LEFT

€ 124.50

9-1

6814001D103HP
ref: 9-1

TAPE SET,FRAME COVER,LEFT

€ 30.00

9-2

6814001D103HS
ref: 9-2

TAPE SET,FRAME COVER,LEFT

€ 0.00

10-1

4721001D3028V
ref: 10-1
47211-01D00

COVER,FRAME,LEFT

€ 124.50

10-2

4721001D3033J
ref: 10-2
47211-01D00

COVER,FRAME,LEFT

€ 124.50

11-1

6814001D303YR
ref: 11-1

TAPE SET,FRAME COVER,LEFT

€ 73.50

11-2

6814001D303WG
ref: 11-2

TAPE SET,FRAME COVER,LEFT

€ 86.00

12-1

4721001D600FL
ref: 12-1

COVER COMP,FRAME,LEFT

€ 238.00

12-2

4721001D600ZK
ref: 12-2

COVER COMP,FRAME,LEFT

€ 220.50

12-3

4721001D6028V
ref: 12-3
47211-01D00

COVER,FRAME,LEFT

€ 124.50

12-4

4721001D6033J
ref: 12-4
47211-01D00

COVER,FRAME,LEFT

€ 124.50

13-1

6814001D51F95
ref: 13-1

TAPE SET,FRAME COVER,LEFT

€ 48.00

13-2

6814001D51F96
ref: 13-2

TAPE SET,FRAME COVER,LEFT

€ 59.50

13-3

6814001D51F93
ref: 13-3

TAPE SET,FRAME COVER,LEFT

€ 44.50

13-4

6814001D51F94
ref: 13-4

TAPE SET,FRAME COVER,LEFT

€ 0.00

14

4721901D00
ref: 14

PROTECTOR,FRAME COVER,L

€ 7.00

15

0912806006
ref: 15
09128-06057

BOLT(6X20)

€ 2.00

16

0916006057
ref: 16
09160-06109

WASHER

€ 2.00

17

0918006011
ref: 17
09180-06263

SPACER (6.1X9X9)

€ 2.00

18

0932009016
ref: 18

CUSHION

€ 2.50

19-1

4731001D0022R
ref: 19-1
47215-01D00

COVER,FRAME,CENTER

€ 38.50

19-2

4731001D0028V
ref: 19-2

COVER,FRAME CTR

€ 38.50

19-3

4731001D0033J
ref: 19-3
47215-01D00

COVER,FRAME,CENTER

€ 38.50

19-4

4731001D0036X
ref: 19-4

COVER,FRAME CTR

€ 40.00

20-1

6816601D0033N
ref: 20-1

EMBLEM,FRAME COVER,CENTER

€ 3.50

20-2

6816601D00742
ref: 20-2
68166-01D00-0JW

EMBLEM

€ 6.00

20-3

6816601D00064
ref: 20-3
68166-01D00-0JW

EMBLEM

€ 6.00

21-1

4731001D200FL
ref: 21-1
47215-01D00

COVER,FRAME,CENTER

€ 38.50

21-2

4731001D200ZK
ref: 21-2
47215-01D00

COVER,FRAME,CENTER

€ 38.50

21-3

4731001D2028V
ref: 21-3
47215-01D00

COVER,FRAME,CENTER

€ 38.50

21-4

4731001D2033J
ref: 21-4

COVER,FRAME CTR

€ 37.50

22-1

6816601D0013L
ref: 22-1
68166-01D00-0JW

EMBLEM

€ 6.00

22-2

6816601D000FP
ref: 22-2

EMBLEM

€ 6.00

22-3

6816601D0022R
ref: 22-3
68166-01D00-0JW

EMBLEM

€ 6.00

23

0324105125
ref: 23
03241-0512A

SCREW

€ 1.50

24

0916105017
ref: 24

WASHER(5.2X14X1.5)

€ 3.00

25

0914805013
ref: 25

NUT

€ 1.50

26

0932008018
ref: 26

CUSHION

€ 4.00
