CYLINDER HEAD COVER

GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

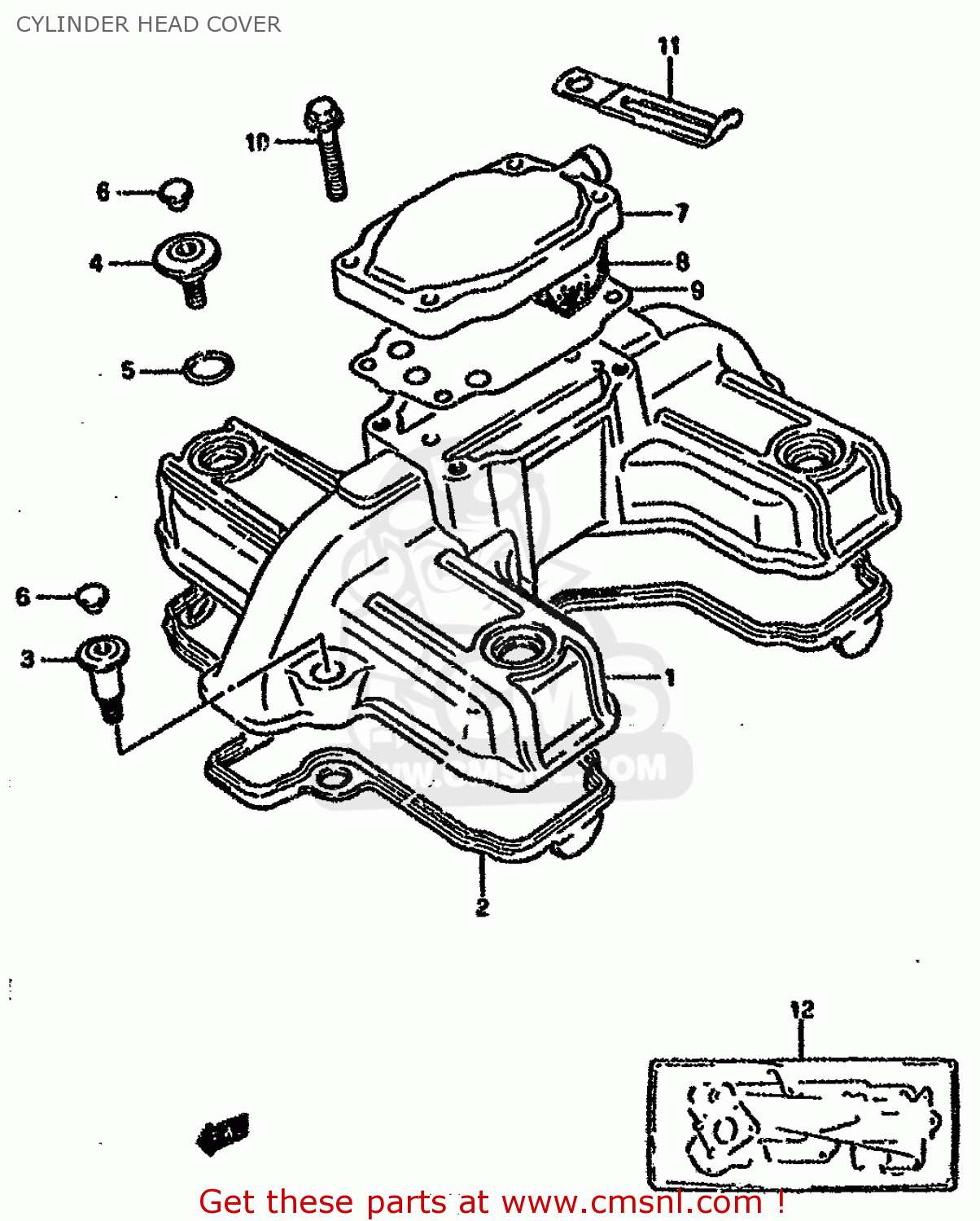

Cylinder head cover diagram GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

CYLINDER HEAD COVER GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)
CYLINDER HEAD COVER GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)
CYLINDER HEAD COVER GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
1117101D02
ref: 1
COVER,CYLINDER HEAD
1117101D02
€ 201.00
2
1117315502
ref: 2
GASKET,CYLINDER HEAD COVER (NAS)
1117315502
€ 32.50
3-1
0910607002
ref: 3-1
MODEL K/L
BOLT(7X19)
0910607002
€ 7.00
3-2
0910607010
ref: 3-2
MODEL M/N/P/R/S/T
BOLT(7X31)
0910607010
€ 4.50
4-1
0910607001
ref: 4-1
MODEL K/L
BOLT(7X5.5)
0910607001
€ 6.00
4-2
0910607009
ref: 4-2
MODEL M/N/P/R/S/T
BOLT(7X17.5)
0910607009
€ 4.50
5
0928015006
ref: 5
O RING(D:1.9,ID:14.5)
0928015006
€ 3.00
6
0925006008
ref: 6
MODEL K/L/M
CAP(OD:10)
0925006008
€ 3.00
7
1117633201
ref: 7
COVER,BREATHER
1117633201
€ 25.50
8-1
1118615500
ref: 8-1
MODEL K/L/M/N/P
SEPARATOR,OIL BREATHER CO
€ 6.00
8-2
1118615501
ref: 8-2
MODEL R/S/T
SEPARATOR,OIL BREATHER COVER
1118615501
€ 6.00
9
1117715510H17
ref: 9
-11177-15510
GASKET,BREATHER COVER (NAS)
1117715510H17
€ 7.50
10-1
0151706257
ref: 10-1
MODEL K/L/M/N/P
BOLT 6X25
€ 2.50
10-2
0155006253
ref: 10-2
MODEL R/S/T
BOLT
0155006253
€ 2.50
11-1
0940406413
ref: 11-1
MODEL K/L/M/N/P/R/S
CLAMP
0940406413
€ 2.50
11-2
0940406431
ref: 11-2
MODEL T
CLAMP(L:65)
0940406431
€ 2.50
12
1140001861
ref: 12
GASKET SET (NAS)
€ 227.50
