GEAR SHIFTING

GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

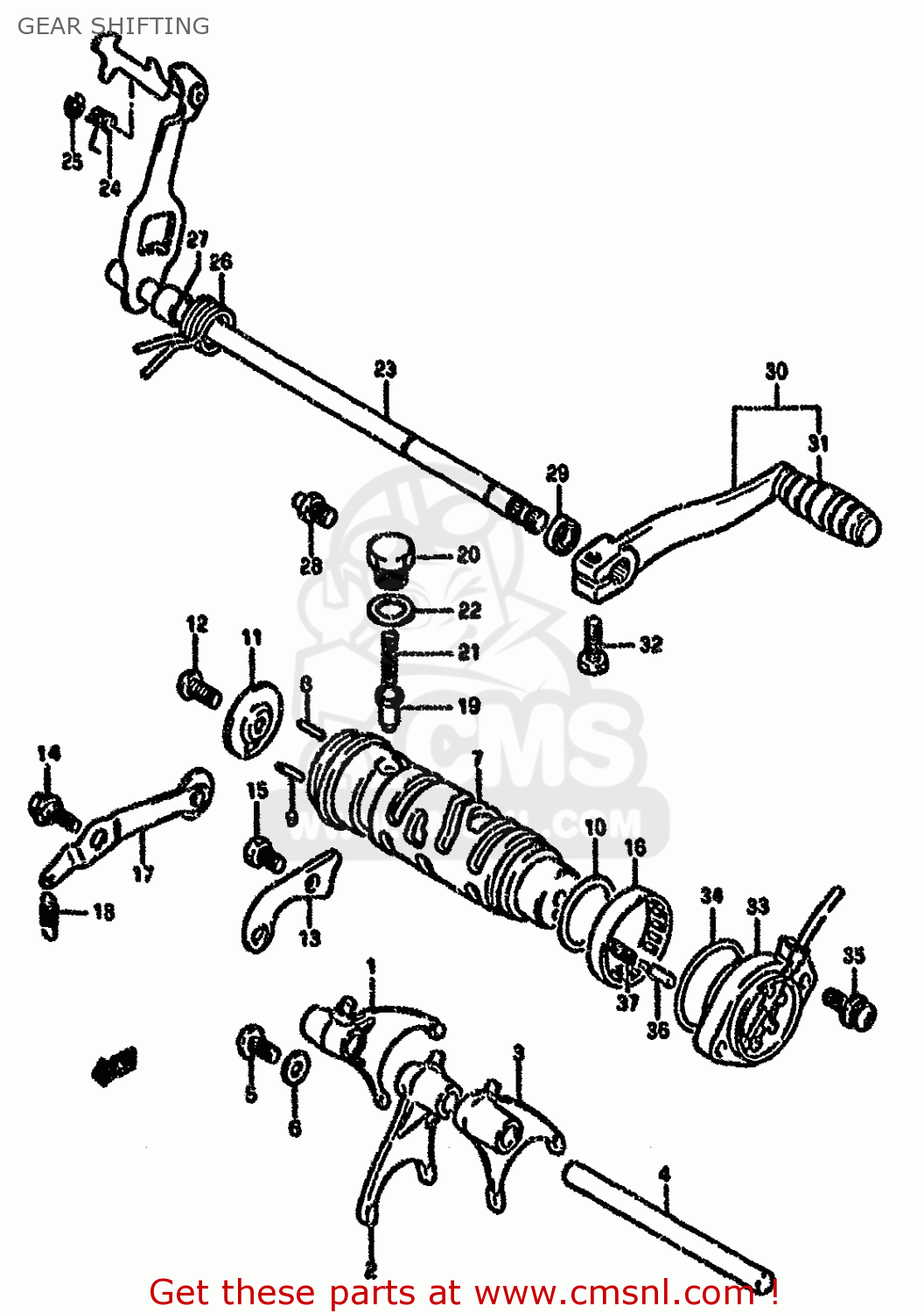

Gear shifting diagram GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

GEAR SHIFTING GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)
GEAR SHIFTING GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)
GEAR SHIFTING GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
2521144001
ref: 1
FORK,GEAR SHIFT NO.1
2521144001
€ 70.00
2
2522144001
ref: 2
FORK,GEAR SHIFT NO.2
2522144001
€ 74.50
3
2523144000
ref: 3
FORK,GEAR SHIFT NO.2
2523144000
€ 74.50
4-1
2541131301
ref: 4-1
MODEL K/L/M/N/P/R/S
SHAFT,GEAR SHIFT FORK
2541131301
€ 14.50
4-2
2541118900
ref: 4-2
MODEL T
SHAFT,GEAR SHIFT FORK
2541118900
€ 14.50
5-1
0214206107
ref: 5-1
MODEL K/L/M/N/P/R/S
SCREW
0214206107
€ 2.00
5-2
0214206083
ref: 5-2
MODEL T
SCREW
0214206083
€ 1.50
6
0821106141
ref: 6
WASHER
0821106141
€ 2.50
7
2531101D00
ref: 7
CAM,GEAR SHIFT
€ 128.00
8
0926104001
ref: 8
PIN(4X18.5)
0926104001
€ 1.50
9
0920904013
ref: 9
PIN
0920904013
€ 5.00
10
0918126001
ref: 10
SHIM(26X32.5X0.3)
€ 2.00
11
2532244000
ref: 11
RETAINER,GEAR SHIFT CAM DR PIN
2532244000
€ 2.50
12
0211206163
ref: 12
SCREW 6X16
0211206163
€ 2.00
13
2534133300
ref: 13
GUIDE,GEAR SHIFT CAM
€ 6.00
14-1
0911106019
ref: 14-1
MODEL K/L/M/N/P/R
BOLT
€ 1.50
14-2
0911106054
ref: 14-2
MODEL S/T
BOLT(6X14.6)
0911106054
€ 1.50
15-1
0110706167
ref: 15-1
MODEL K/L/M/N/P
BOLT
0110706167
€ 3.00
15-2
0150006163
ref: 15-2
MODEL R/S/T
BOLT
0150006163
€ 2.00
16
0926340001
ref: 16
BEARING(40X47X12)
0926340001
€ 21.00
17
2535044000
ref: 17
STOPPER,GEAR SHIFT CAM NO.1
2535044000
€ 10.50
18
0944309007
ref: 18
SPRING
0944309007
€ 14.50
19
2535130010
ref: 19
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
20
2535430000
ref: 20
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
21
0944006020
ref: 21
SPRING
0944006020
€ 14.00
22-1
0916814004
ref: 22-1
MODEL K/L/M/N/P
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
22-2
0916814002
ref: 22-2
MODEL R/S/T
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
23
2551044100
ref: 23
SHAFT,GEAR SHIFT
2551044100
€ 83.50
24
0944813008
ref: 24
SPRING
0944813008
€ 7.00
25
0833211076
ref: 25
E RING
0833211076
€ 2.00
26
0944426013
ref: 26
-09444-26012
SPRING
0944426013
€ 3.50
27
0918012068
ref: 27
SPACER(12X20X15.3)
0918012068
€ 3.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
29
0928512002
ref: 29
OIL SEAL
0928512002
€ 7.00
30
2560001D02
ref: 30
LEVER ASSY,GEAR SHIFT
2560001D02
€ 38.50
31
2565220C00
ref: 31
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
32-1
0110706207
ref: 32-1
MODEL K/L/M/N/P-0910
BOLT
0110706207
€ 2.00
32-2
0150006203
ref: 32-2
MODEL R/S/T
BOLT
0150006203
€ 2.00
33-1
3772044400
ref: 33-1
MODEL K/L/M/N/P
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 103.50
33-2
3772047D00
ref: 33-2
MODEL R/S/T
BASE ASSY,NEUTRAL SW TERMINAL
3772047D00
€ 103.50
34
0928026003
ref: 34
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
35
0211275203
ref: 35
SCREW
€ 3.00
36
0920905011
ref: 36
PIN(5X15.5)
0920905011
€ 2.00
37
0944004010
ref: 37
SPRING
0944004010
€ 1.50
