GENERATOR

GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

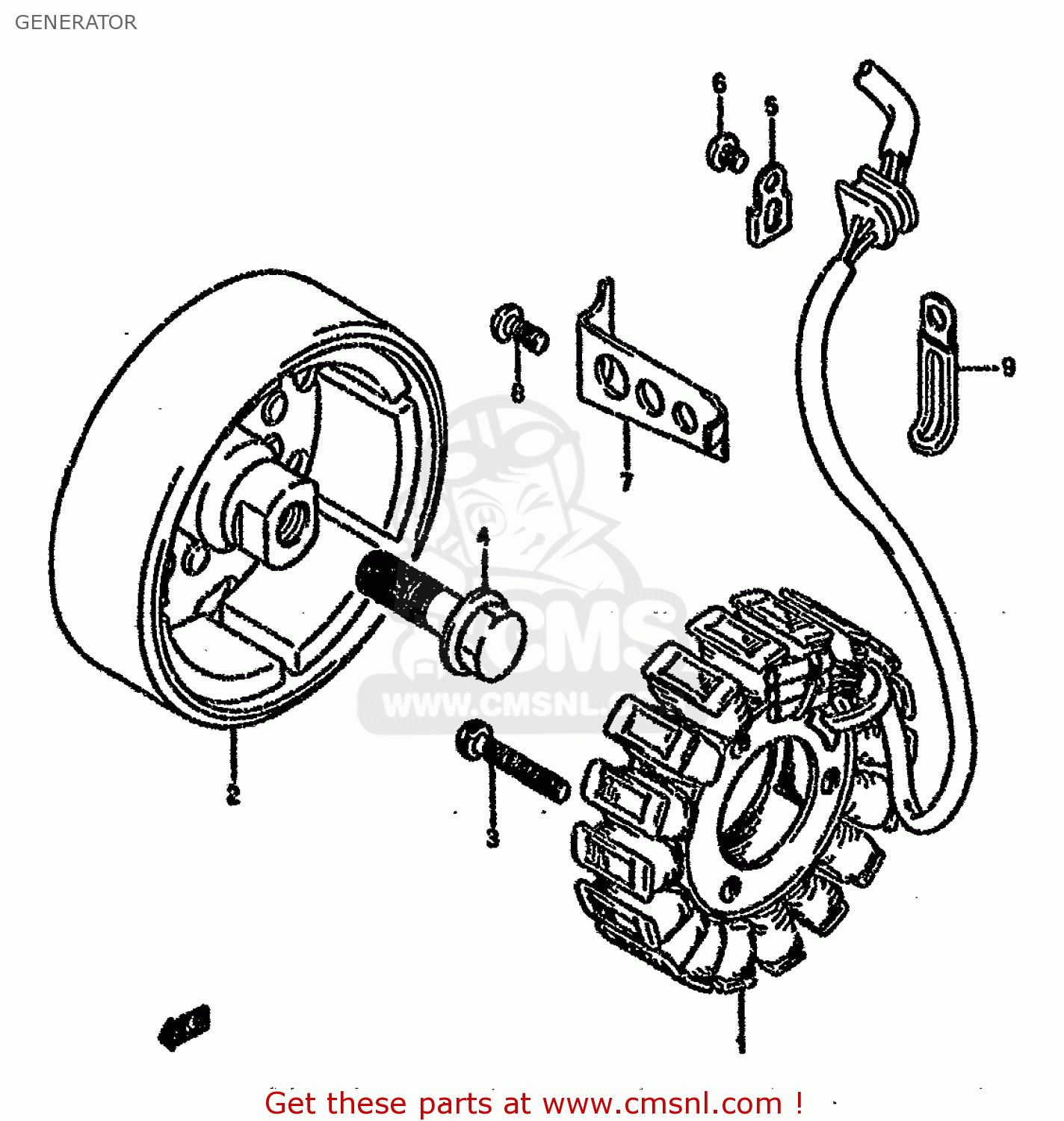

Generator diagram GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

prices are in EUR

ref

part #

description

quantity

3140147030
ref: 1

STARTER ASSY

€ 371.00

3140245030
ref: 2
-31402-47031

ROTOR ASSY

€ 385.00

0211235303
ref: 3

SCREW

€ 2.50

0910312004
ref: 4

BOLT(12X40)

€ 3.00

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205083
ref: 6

SCREW

€ 2.00

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206103
ref: 8

SCREW

€ 1.50

9-1

0940406402
ref: 9-1
MODEL K/L/M/N/P/R/S

CLAMP

€ 2.50

9-2

0940406429
ref: 9-2
MODEL T

CLAMP(L:45)

€ 2.50
