SIGNAL GENERATOR

GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

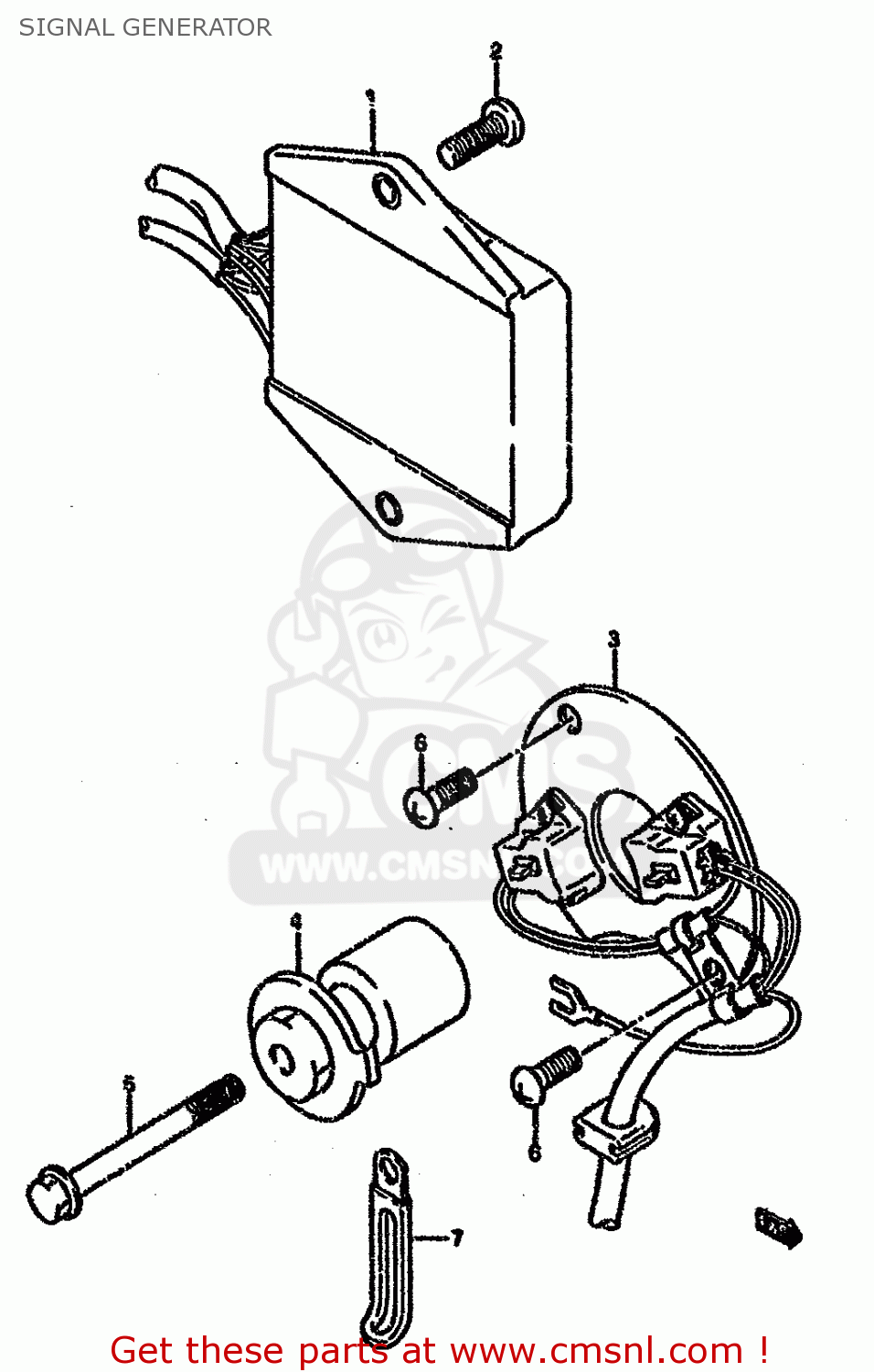

Signal generator diagram GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

SIGNAL GENERATOR GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

SIGNAL GENERATOR GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

prices are in EUR

ref

part #

description

quantity

1

3290001D20
ref: 1
-32900-01D00

IGNITOR ASSY

€ 487.50

2-1

0215206165
ref: 2-1
MODEL K/L/M/N/P/R

SCREW

€ 2.00

2-2

0214206163
ref: 2-2
MODEL S/T

SCREW

€ 2.50

3

3311044420
ref: 3

SIGNAL GENERATOR ASSY

€ 292.50

4

3312001D00
ref: 4

ROTOR,SIGNAL

€ 90.50

5-1

0910306121
ref: 5-1
MODEL K/L/M/N/P/R

BOLT

€ 2.50

5-2

0910306064
ref: 5-2
MODEL S/T

BOLT(6X60)

€ 2.50

6-1

0912505024
ref: 6-1
MODEL K/L/M/N/P

SCREW(5X12)

€ 2.00

6-2

0211205103
ref: 6-2
MODEL R/S/T

SCREW

€ 2.00

7-1

0940406422
ref: 7-1
MODEL K/L/M/N/P/R/S

CLAMP

€ 2.50

7-2

0940406429
ref: 7-2
MODEL T

CLAMP(L:45)

€ 2.50

all assemblies
