FRONT MASTER CYLINDER

GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

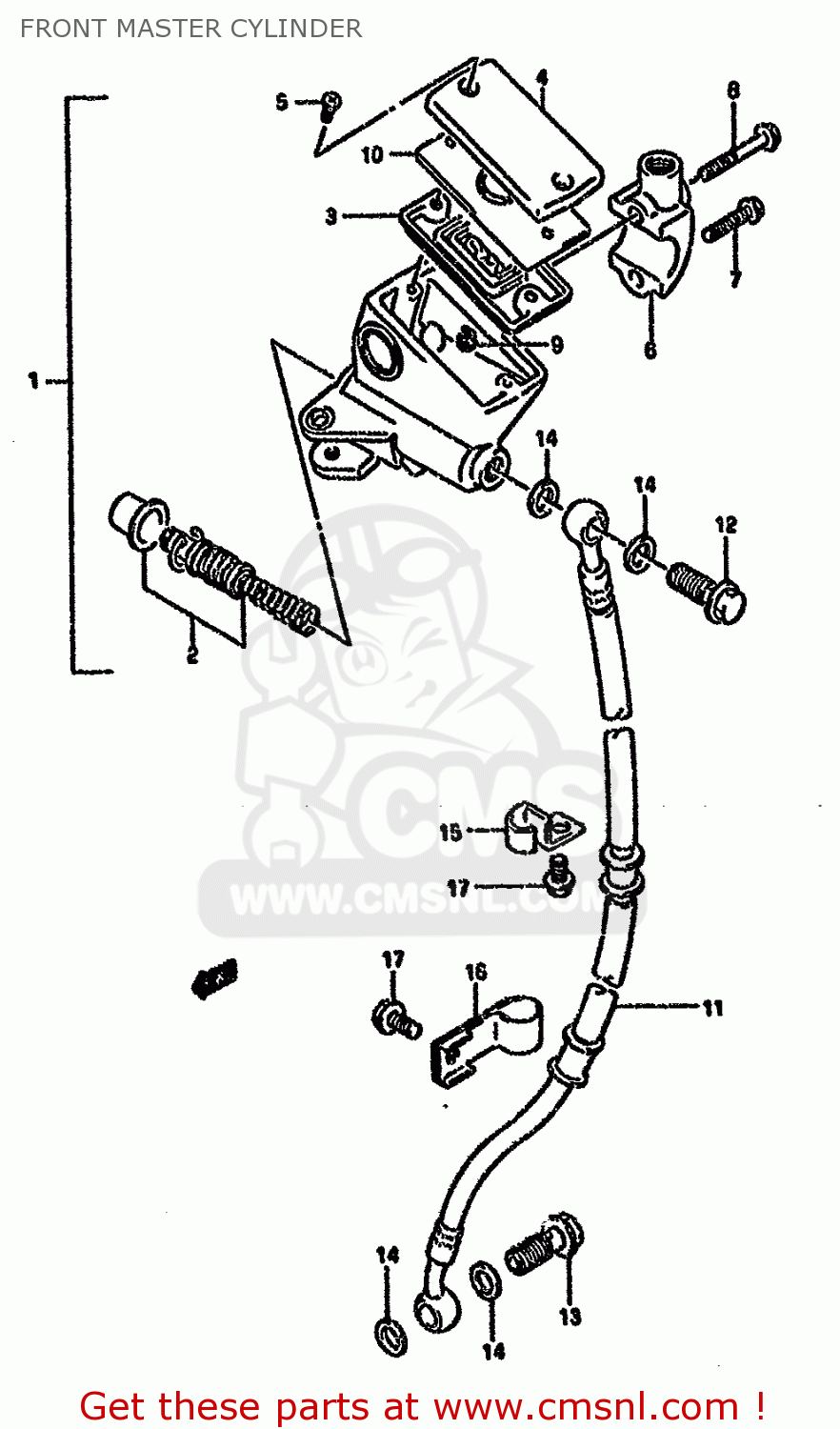

Front master cylinder diagram GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)

FRONT MASTER CYLINDER GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)
FRONT MASTER CYLINDER GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)
FRONT MASTER CYLINDER GS500EU 1993 (P) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
5960038C00
ref: 1
CYLINDER ASSY,FR MASTER
5960038C00
€ 202.50
2
5960036820
ref: 2
CUP SET,MASTER CYLINDER
5960036820
€ 37.50
3
5966749460
ref: 3
5966749460
4-1
5966934C00
ref: 4-1
MODEL K/L/M/N-59669-
CAP
€ 30.00
4-2
5966941C00
ref: 4-2
MODEL P/R/S/T
CAP
5966941C00
€ 30.00
5
6968949300
ref: 5
SCREW
6968949300
€ 1.50
6
5967144300
ref: 6
HOLDER
5967144300
€ 14.50
7
5967519C00
ref: 7
BOLT(6X25)
5967519C00
€ 3.00
8
5967519C10
ref: 8
BOLT(6X38)
5967519C10
€ 4.00
9
5966448B00
ref: 9
PROTECTOR
5966448B00
€ 8.00
10
5966841C00
ref: 10
MODEL P/R/S/T
PLATE,DIAPHRAGM
5966841C00
€ 8.00
11-1
5948001D00
ref: 11-1
MODEL K
HOSE COMP,FRONT BRAKE
€ 65.00
11-2
5948001D10
ref: 11-2
MODEL L/M/N/P
HOSE,FR BRAKE,R
€ 82.00
11-3
5948001D20
ref: 11-3
MODEL R/S/T
HOSE,FR BRAKE,R
€ 82.00
12-1
0936010017
ref: 12-1
MODEL K/L/M/N/P
BOLT UNION
0936010017
€ 6.50
12-2
0936010039
ref: 12-2
MODEL R/S/T
BOLT UNION
€ 6.50
13-1
0936010033
ref: 13-1
MODEL K/L/M/N/P
BOLT 10X1.25X24
€ 5.00
13-2
0936010040
ref: 13-2
MODEL R/S/T
BOLT UNION
0936010040
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
0916110009
€ 2.00
15
5926801D01
ref: 15
CLAMP,FR BRAKE HOSE
5926801D01
€ 8.00
16
5926801D10
ref: 16
CLAMP,FRONT BRAKE NO.2
5926801D10
€ 6.00
17-1
0151706125
ref: 17-1
MODEL K/L/M/N/P
BOLT 6X12
0151706125
€ 2.50
17-2
0155006123
ref: 17-2
MODEL R/S/T
BOLT
0155006123
€ 2.50
