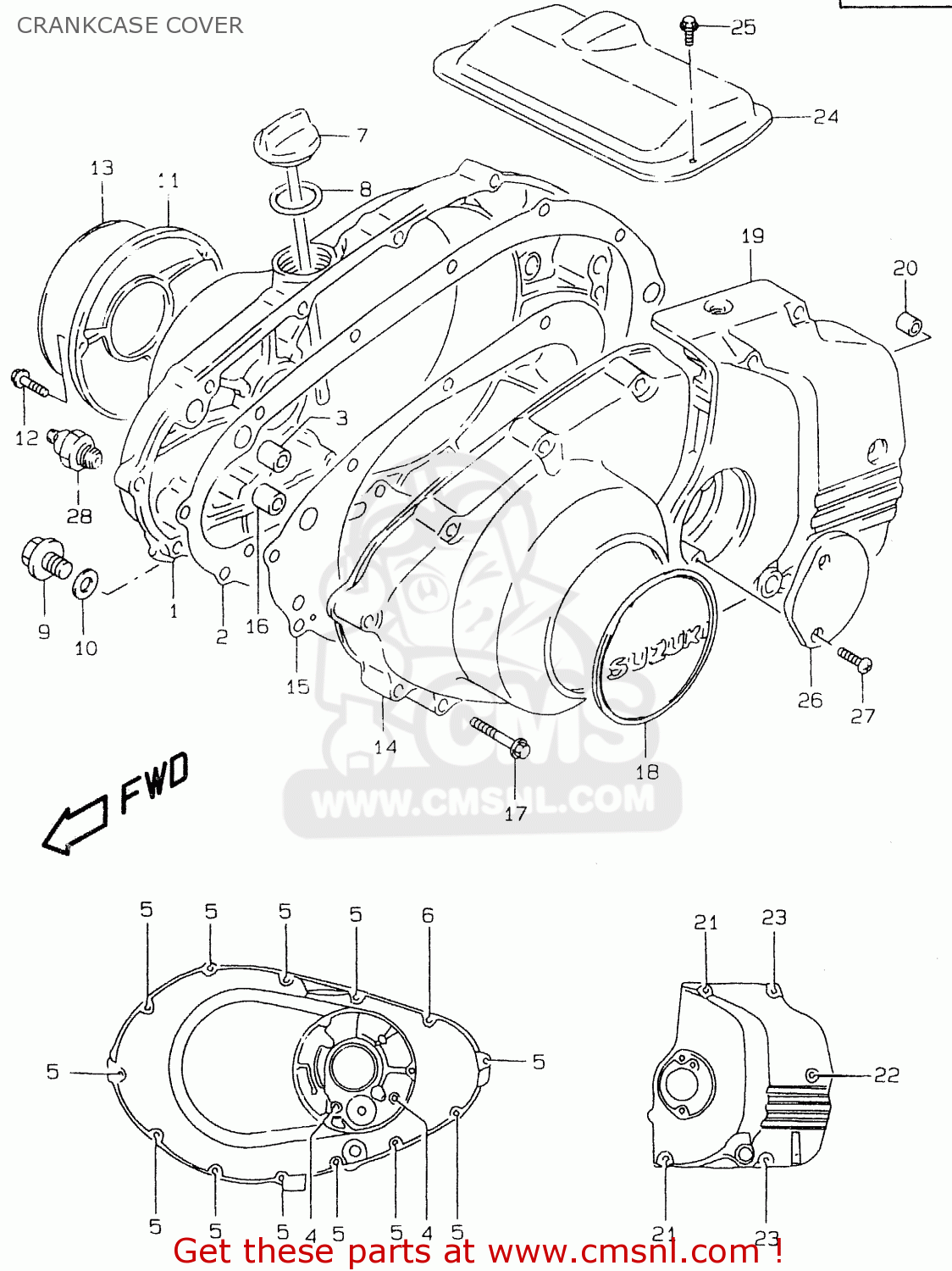

CRANKCASE COVER

ref

part #

description

quantity

1

1134101D10
ref: 1

COVER,CLUTCH

€ 148.50

2

1148244110
ref: 2

GASKET,CLUTCH COVER (NAS)

€ 17.50

3

0421113189
ref: 3

PIN

€ 2.50

4

0154706557
ref: 4

BOLT

€ 2.50

5

0154706357
ref: 5

BOLT

€ 2.50

6

0154706257
ref: 6

BOLT

€ 2.50

7

1197044110
ref: 7

GAUGE,OIL LEVEL

€ 20.50

8

0928026006
ref: 8

O RING(D:3.1,ID:26.4)

€ 3.00

9

0924714026
ref: 9

PLUG(14X12)

€ 3.50

10

0916814002
ref: 10

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

11

1138101D10
ref: 11

COVER,CONTACT BREAKER

€ 41.00

12

0154705167
ref: 12

BOLT

€ 2.00

13

6823301D00
ref: 13

EMBLEM,CONTACT BREAKER COVER

€ 21.00

14

1135101D10
ref: 14

COVER,MAGNETO

€ 150.00

15

1148344110
ref: 15

GASKET,MAGNETO COVER (NAS)

€ 12.50

16

0421113189
ref: 16

PIN

€ 2.50

17

0154706357
ref: 17

BOLT

€ 2.50

18

6823301D00
ref: 18

EMBLEM,CONTACT BREAKER COVER

€ 21.00

19

1136101D10
ref: 19

COVER,ENGINE SPROCKET

€ 110.00

20

0421109129
ref: 20

PIN

€ 2.00

21

0154706657
ref: 21

BOLT

€ 2.00

22

0154706507
ref: 22

BOLT

€ 2.50

23

0154706407
ref: 23

BOLT

€ 2.50

24

1138244111
ref: 24

COVER,STARTER MOTOR

€ 20.50

25

0154705083
ref: 25

BOLT

€ 2.50

26

1138701D10
ref: 26

CAP,CLUTCH RELEASE ADJUST

€ 30.50

27

0212205127
ref: 27

SCREW

€ 2.50

28

3782033D00
ref: 28

SWITCH ASSEMBLY,OIL PRESSURE

€ 29.00
