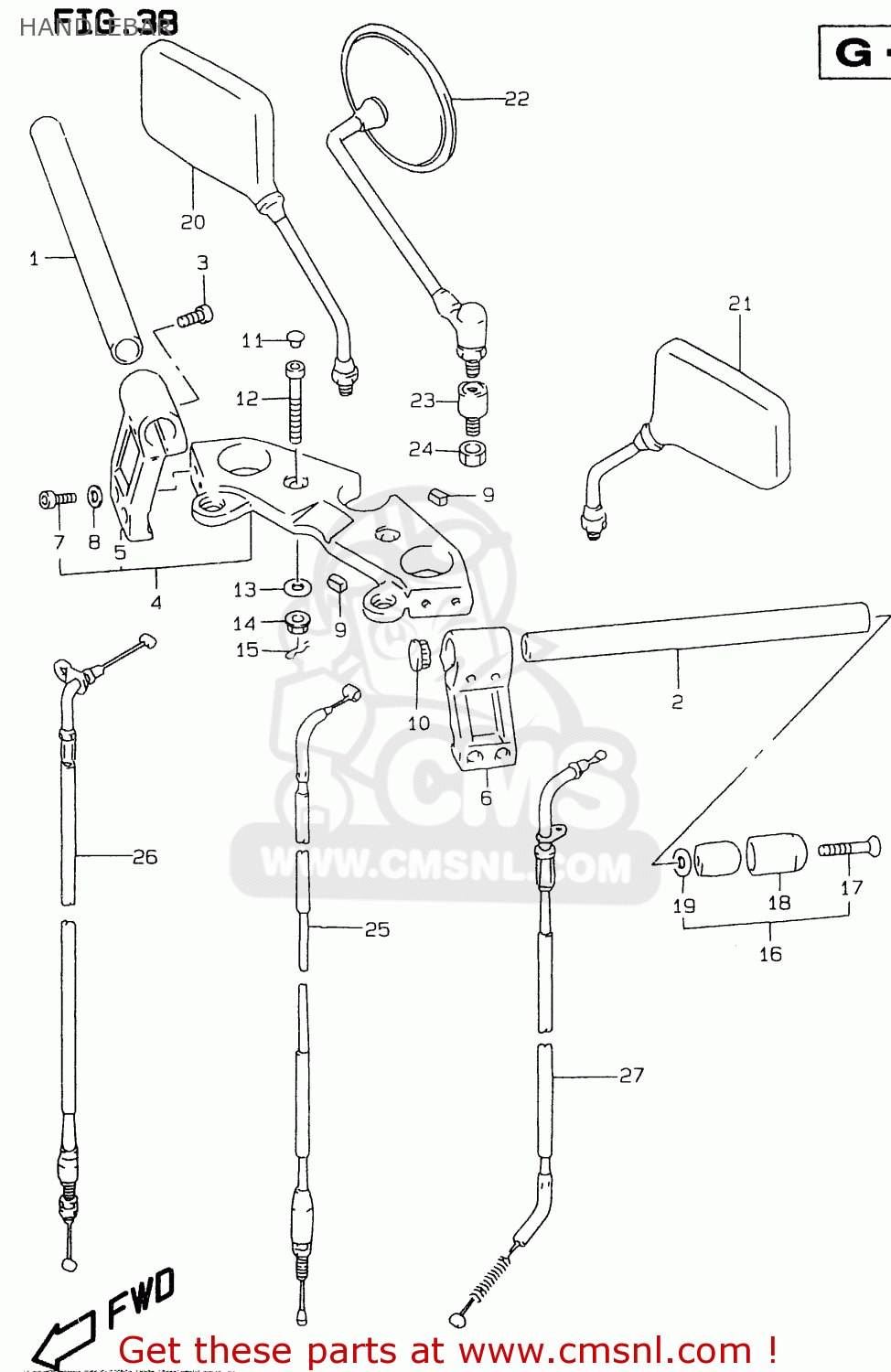

HANDLEBAR

ref

part #

description

quantity

1

5611001D10
ref: 1

HANDLEBAR,R

€ 45.50

2

5615001D10
ref: 2

HANDLEBAR,L

€ 47.50

3

0713006253
ref: 3

BOLT,CL.COVER

€ 3.00

4

5620001D810FP
ref: 4

HOLDER ASSY,HANDLEBAR

€ 410.50

5

5621101D800FP
ref: 5

HOLDER,HANDLEBAR,R(SILVER)

€ 83.50

6

5622101D800FP
ref: 6

HOLDER,HANDLEBAR,L(SILVER)

€ 118.00

7

0713008253
ref: 7

BOLT

€ 3.50

8

0916408015
ref: 8

WASHER

€ 3.00

9

5624101D00
ref: 9

CUSHION,HANDLE HOLDER

€ 5.50

10

5721533400
ref: 10

CAP,HANDLEBAR

€ 4.00

11

0925006011
ref: 11
MODEL V/W

CAP(OD:11)

€ 2.50

11

0925006009
ref: 11
MODEL X

CAP(OD:14.5)

€ 3.50

12

0910610055
ref: 12

BOLT(10X66)

€ 8.00

13

0916010094
ref: 13

WASHER(10.5X30X3.2)

€ 3.50

14

0831931107
ref: 14

NUT

€ 3.00

15

0411120208
ref: 15

PIN 20X20

€ 1.50

16

5620001831
ref: 16

BALANCER SET,HANDLEBAR

€ 55.00

17

0212206603
ref: 17

SCREW

€ 3.00

18

5627449310
ref: 18

CAP,HANDLE BALANCER

€ 141.00

19

5627534401
ref: 19

SPACER,BALANCER

€ 2.50

20

5650001D01
ref: 20
E18,E25,E39

MIRROR ASSEMBLY,REAR VIEW

€ 113.00

20

5650001D11
ref: 20
E22,E24

MIRROR ASSY,RE

€ 56.00

21

5660001D01
ref: 21
E18,E25,E39

MIRROR ASSEMBLY,REAR VIEW

€ 113.00

21

5660001D11
ref: 21
E22,E24

MIRROR ASSY,LH

€ 56.00

22

5650008010
ref: 22

MIRROR ASSY,RH

€ 119.50

23

5670031001
ref: 23

CUSHION,REAR VIEW MIRROR

€ 18.00

24

0831000107
ref: 24

NUT

€ 2.50

25

5820001D11
ref: 25

CABLE ASSY,CLUTCH

€ 33.00

26

5830001D10
ref: 26

CABLE ASSY,THROTTLE

€ 36.00

26

5830001D70
ref: 26
MODEL W/X E4

CABLE ASSY,THROTTLE

€ 40.00

27

5841001D10
ref: 27
MODEL V/W

CABLE COMP,STARTER

€ 30.50

27

5841001D11
ref: 27
MODEL X

CABLE,STARTER

€ 30.50

all assemblies
