MUFFLER
GS500EU 1997 (V) (E04 E22 E39)

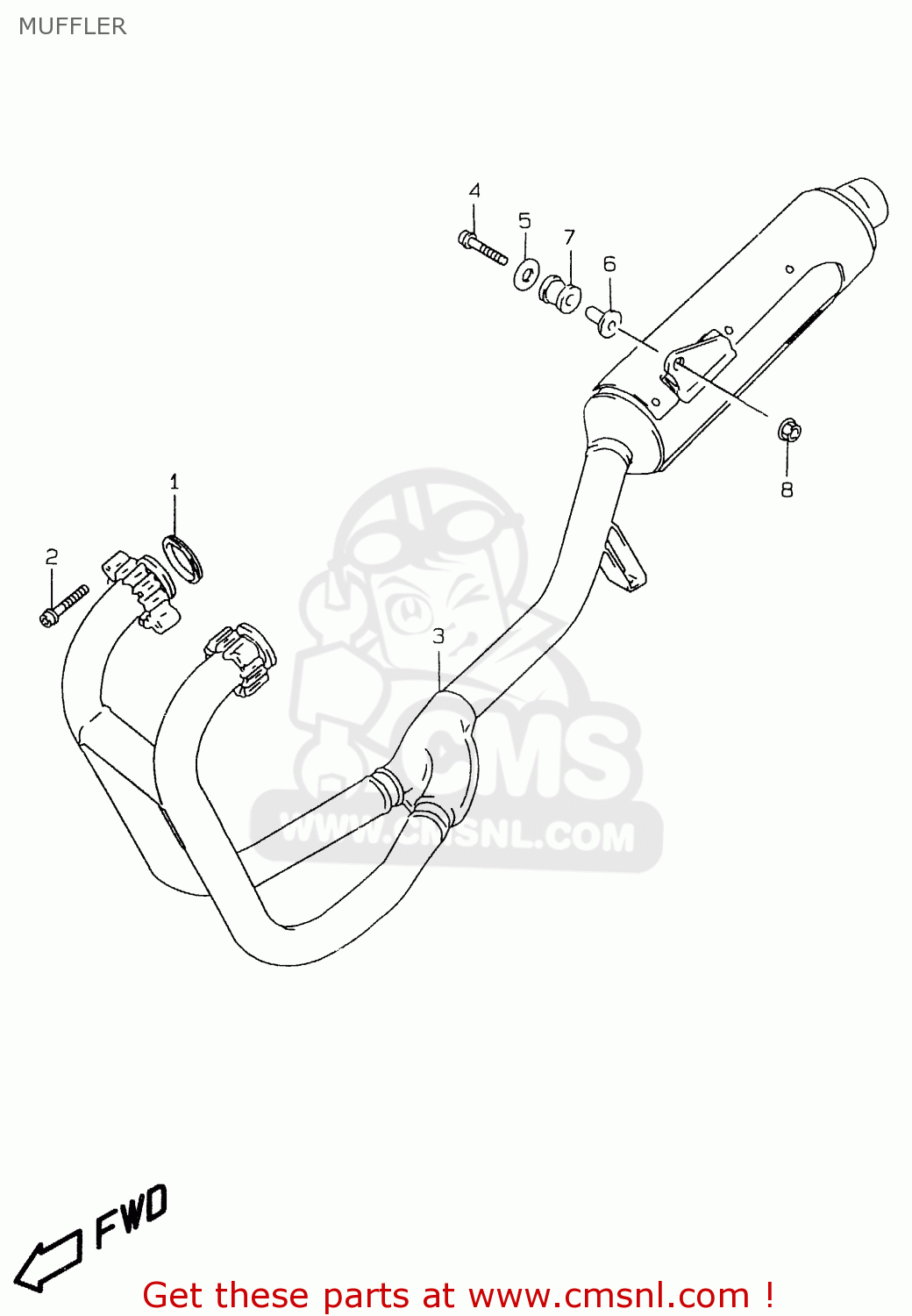

Muffler diagram GS500EU 1997 (V) (E04 E22 E39)
MUFFLER GS500EU 1997 (V) (E04 E22 E39)
×
prices are in EUR
ref
part #
description
quantity
1
1418101D00
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 8.00
2
0712008403
ref: 2
BOLT
€ 3.50
3
1430101DB0
ref: 3
MUFFLER ASSY
€ 688.00
3
1430101DD0
ref: 3
E18,E39
MUFFLER
€ 813.50
3
1430101DA0
ref: 3
MODEL W/X E4
MUFFLER
€ 559.00
4
0910308256
ref: 4
BOLT(8X40)
€ 6.00
5
0916008002
ref: 5
MODEL V
WASHER (8.5X29X1.6)
€ 2.00
5
0916008136
ref: 5
MODEL W/X
WASHER(8.5X28X1.6)
€ 3.50
6
0918008152
ref: 6
SPACER(8.6X12X24.2)
€ 6.00
7
0932012048
ref: 7
CUSHION
€ 5.00
8
0831610083
ref: 8
NUT
€ 3.00
