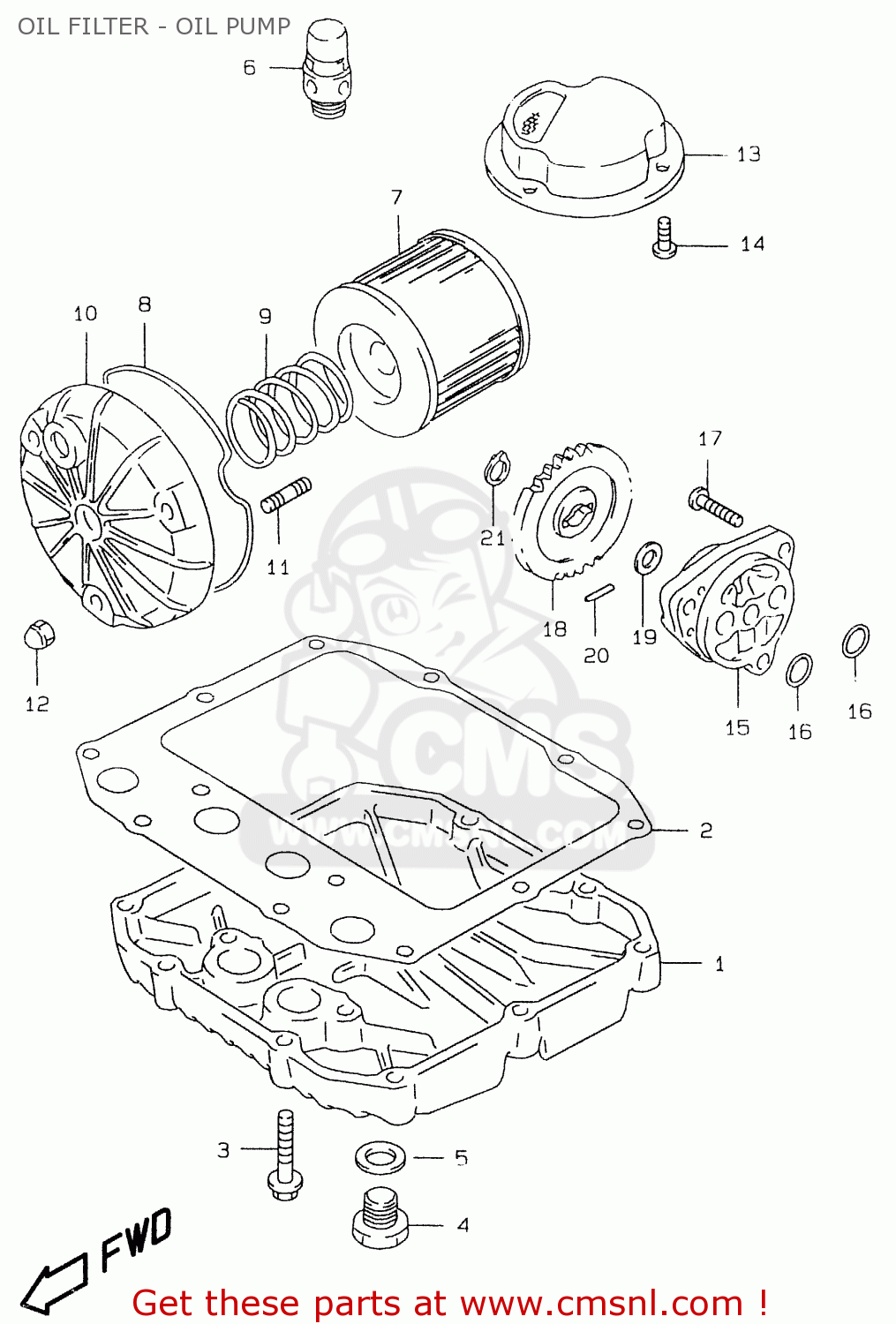

OIL FILTER - OIL PUMP - GS500EU 1997 (V) (E04 E22 E39)

ref

part #

description

quantity

1

1151144100
ref: 1

PAN,OIL

€ 83.50

2

1148944110
ref: 2

GASKET,OIL PAN(ASB) (NAS)

€ 11.00

3

0155006303
ref: 3

BOLT

€ 2.50

4

0924714026
ref: 4

PLUG(14X12)

€ 3.50

5

0916814002
ref: 5

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

6

1644005C01
ref: 6
MODEL V

REGULATOR ASSEMBLY,ENGINE

€ 37.00

6

1644011D00
ref: 6
MODEL W/X

REGULATOR,ENGINE OIL(6.5K)

€ 37.00

7

1651045040
ref: 7

FILTER ASSY,ENGINE OIL

€ 7.50

8

1651845000
ref: 8

O RING,OIL FILTER CHAMBER CAP

€ 7.50

9

0944032004
ref: 9

SPRING

€ 13.50

10

1651245D00
ref: 10

CAP,OIL FILTER

€ 47.00

11

0142106208
ref: 11

STUD 6X20

€ 2.50

12

0831320063
ref: 12

NUT

€ 2.00

13

1652001D01
ref: 13

STRAINER,ENGINE OIL

€ 12.50

14

0211206123
ref: 14
MODEL V

SCREW

€ 1.50

14

0157006123
ref: 14
MODEL W/X

BOLT

€ 1.50

15

1640044100
ref: 15

PUMP ASSY,ENGINE OIL

€ 164.50

16

0928013004
ref: 16

O RING(D:1.9,ID:13)

€ 2.50

17

0211206253
ref: 17

SCREW

€ 1.50

18

1633101D10
ref: 18

GEAR,OIL PUMP DRIVEN

€ 46.00

19

0822110185
ref: 19
MODEL V

SHIM

€ 2.00

19

0918110158
ref: 19
MODEL W/X

SHIM(10X18X0.5)

€ 2.50

20

0926104009
ref: 20

PIN(4X15.8)

€ 1.50

21

0833131106
ref: 21

CIRCLIP,10MM

€ 2.00
