GENERATOR

GS500EU 1997 (V) (E04 E22 E39)

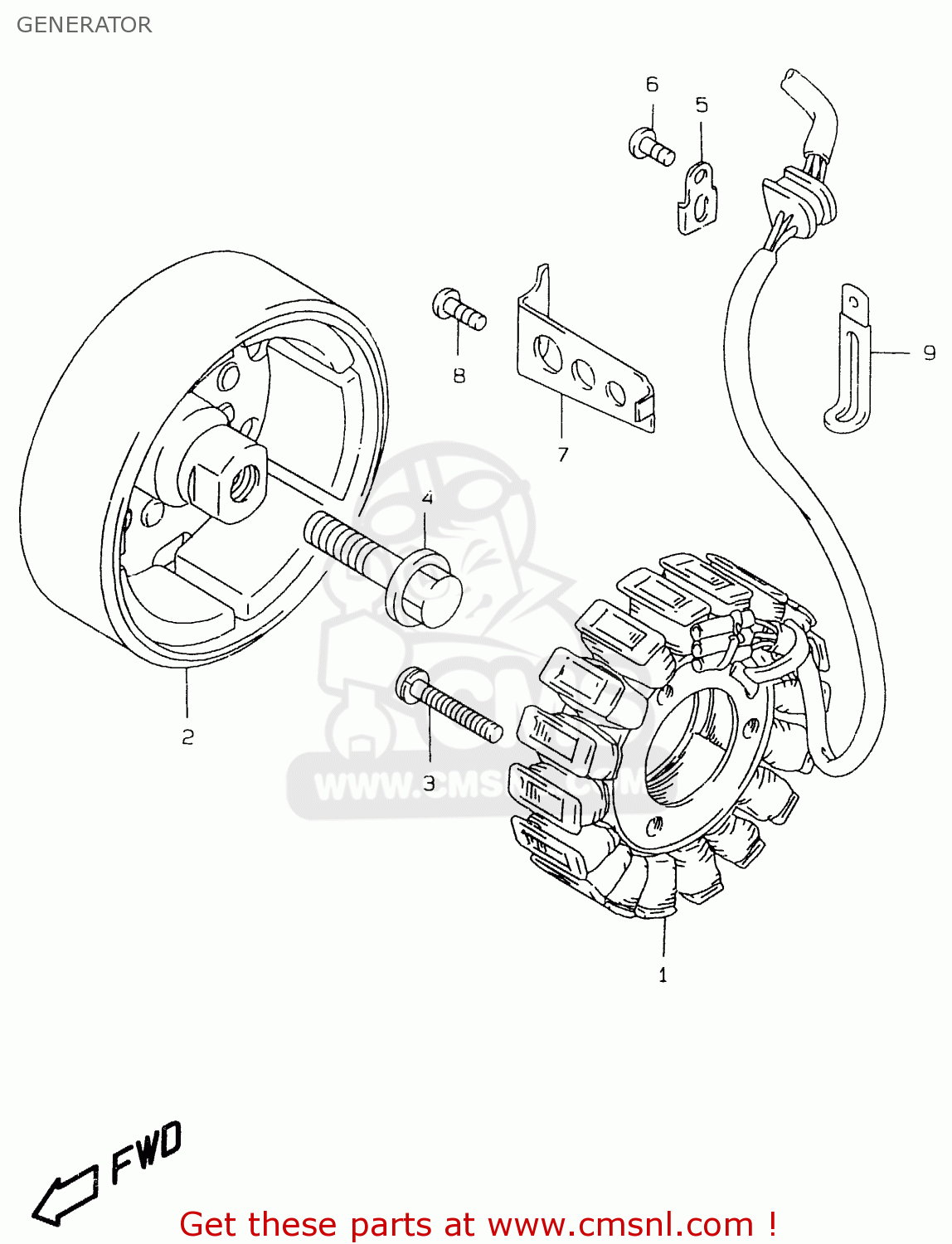

Generator diagram GS500EU 1997 (V) (E04 E22 E39)

GENERATOR GS500EU 1997 (V) (E04 E22 E39)

GENERATOR GS500EU 1997 (V) (E04 E22 E39)

prices are in EUR

ref

part #

description

quantity

1

3140147030
ref: 1

STARTER ASSY

€ 371.00

2

3140245030
ref: 2

ROTOR ASSY

€ 385.00

3

0211235303
ref: 3

SCREW

€ 2.50

4

0910312004
ref: 4

BOLT(12X40)

€ 3.00

5

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

6

0211205083
ref: 6

SCREW

€ 2.00

7

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

8

0211206103
ref: 8

SCREW

€ 1.50

9

0940406432
ref: 9
<-09404-06429

CLAMP(L:65)

€ 2.50
