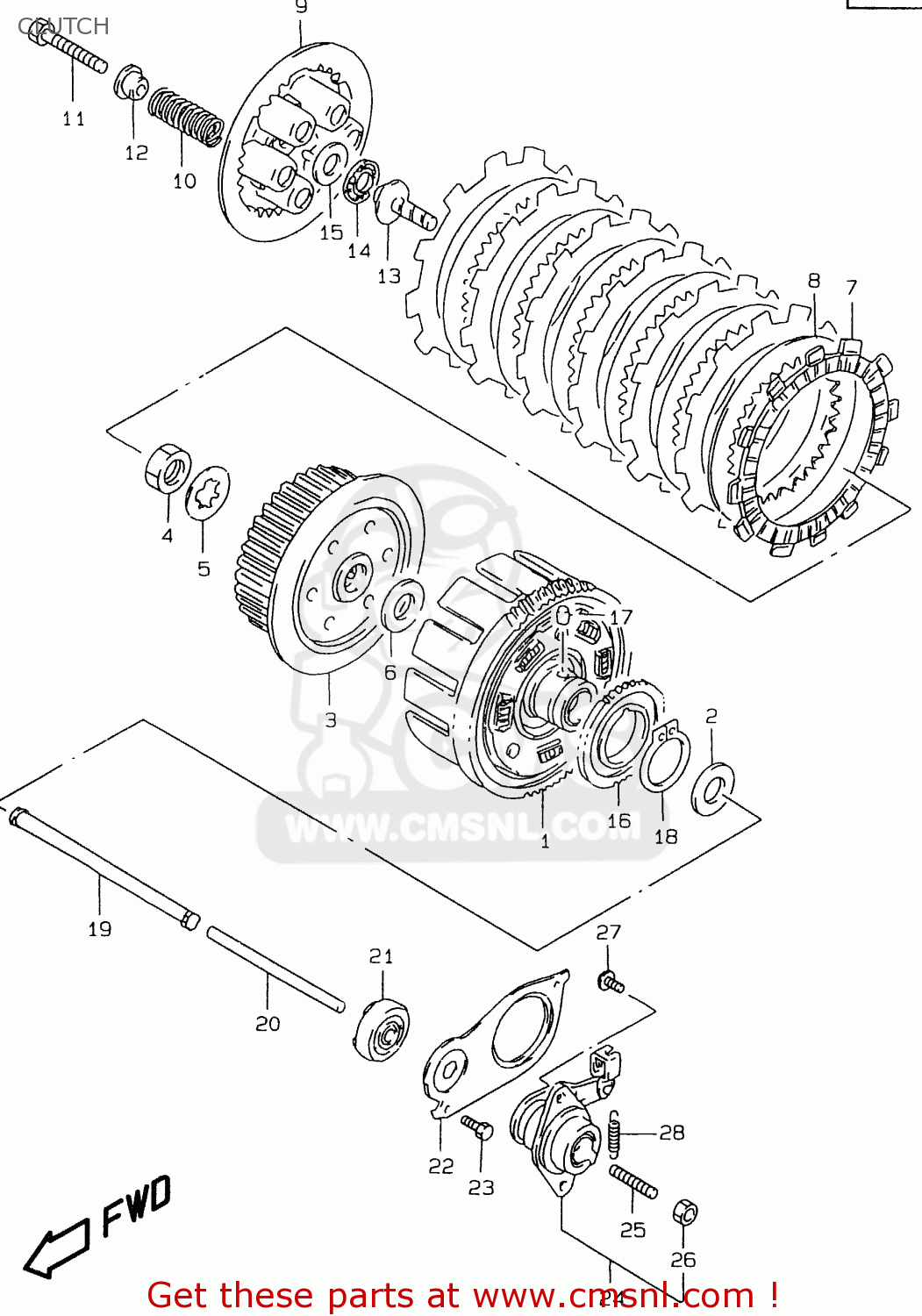

CLUTCH

ref

part #

description

quantity

1

2120044102
ref: 1

GEAR ASSY,PRI DRIVEN

€ 333.00

2

0821125381
ref: 2
MODEL V

WASHER

€ 3.00

2

0918125223
ref: 2
MODEL W/X

SHIM(25X38X1)

€ 3.00

3

2141144101
ref: 3

HUB,CLUTCH SLEEVE

€ 56.50

4

0914020001
ref: 4

NUT

€ 3.50

5

0916720006
ref: 5

WASHER,LOCK

€ 3.00

6

0916020015
ref: 6

WASHER(20X44X3)

€ 4.50

7

2144137400
ref: 7

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

8

2145128C31
ref: 8
<-21451-28C30

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 10.50

9

2146214301
ref: 9

DISC,CLUTCH PRESSURE

€ 51.00

10

0944020019
ref: 10

SPRING

€ 8.00

11

0910006145
ref: 11

BOLT(6X40)

€ 2.50

12

2141401D00
ref: 12

SPACER,CLUTCH SLEEVE HUB

€ 5.50

13

2312144100
ref: 13

PIECE,CLUTCH PUSH

€ 21.50

14

0926315003
ref: 14

BEARING(15X28X2)

€ 7.00

15

0916015045
ref: 15

WASHER(15.5X28X1)

€ 4.00

16

1632101D10
ref: 16

GEAR,OIL PUMP DRIVE(NT:39)

€ 53.00

17

0926106002
ref: 17

PIN(6X6)

€ 1.50

18

0833131383
ref: 18

CIRCLIP

€ 2.50

19

2311044111
ref: 19

ROD,PUSH,R

€ 13.00

20

2311124A01
ref: 20

ROD,CLUTCH PUSH,L

€ 15.00

21

0928506011
ref: 21

SEAL,OIL(6X34X10)

€ 9.50

22

2311744102
ref: 22

RETAINER,PUSH ROD OIL SEAL

€ 6.50

23

0150006123
ref: 23

BOLT

€ 2.00

24

2320001D00
ref: 24

SCREW ASSY,CLUTCH RELEASE

€ 78.00

25

0913406010
ref: 25

SCREW(6X25)

€ 3.00

26

0831000067
ref: 26

NUT

€ 2.50

27

0314106163
ref: 27

SCREW 6X16

€ 2.00

28

0944308001
ref: 28

SPRING

€ 3.00

all assemblies
