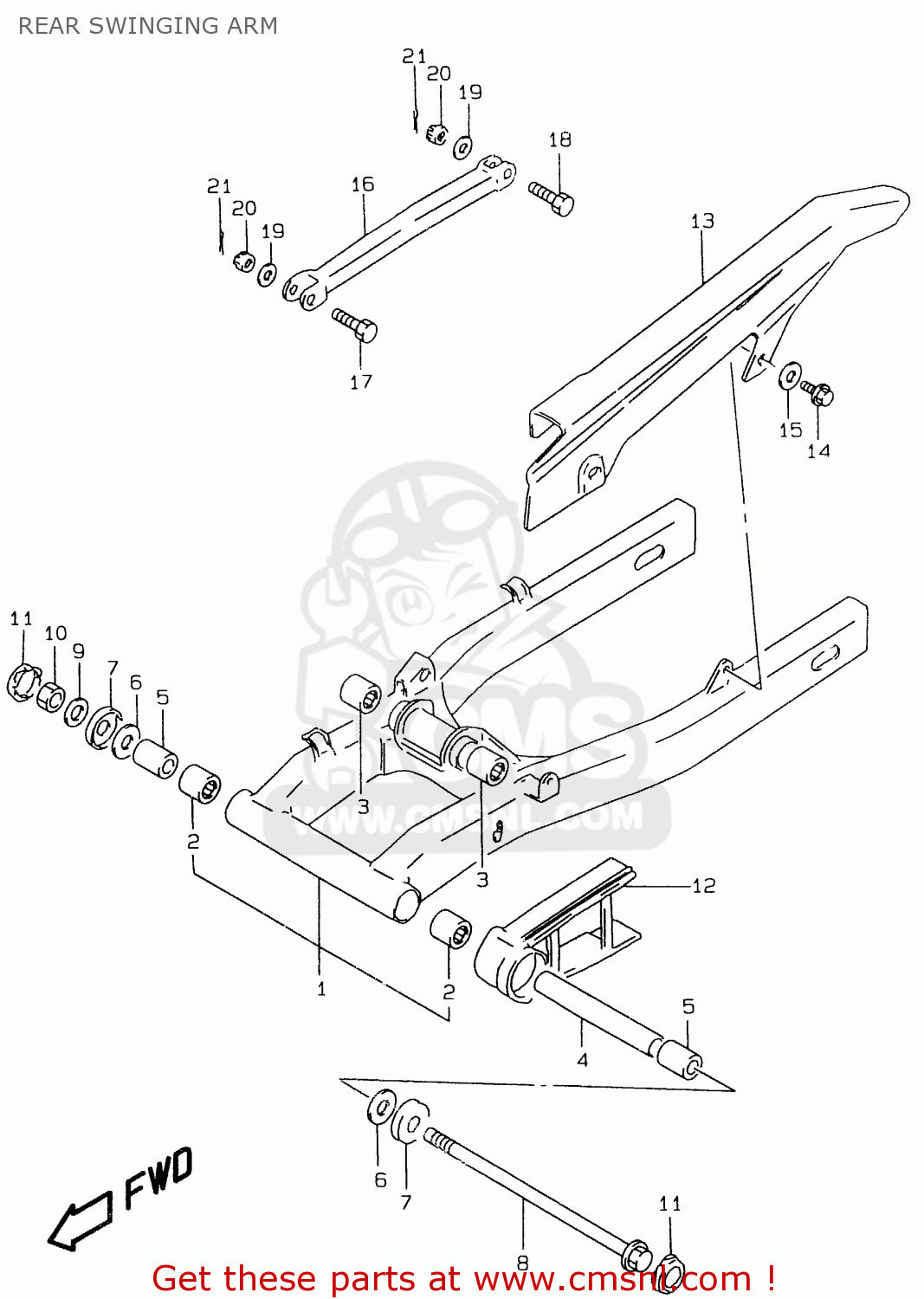

REAR SWINGING ARM

ref

part #

description

quantity

1

6100001D1013L
ref: 1

SWINGINGARM ASSY,RR

€ 569.50

2

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

6128201D00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 12.50

5

6125145001
ref: 5

SPACER,RR SWGARM PIVOT

€ 12.50

6

0916014020
ref: 6

WASHER(14.2X34X1)

€ 2.50

7

6126245002
ref: 7

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

8

6121130B00
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 22.50

9

0916014009
ref: 9

WASHER(14.5X29X2.3)

€ 3.50

10

0915914019
ref: 10

NUT

€ 8.50

11

6122248B00
ref: 11

CAP,RR SWINGING ARM PIVOT

€ 4.00

12

6127301D00
ref: 12

BUFFER,CHAIN TOUCH DEFENSE

€ 26.00

13

6131001D00
ref: 13

CASE,CHAIN

€ 38.50

14

0214206123
ref: 14

SCREW 6X12

€ 2.00

15

0916906026
ref: 15

WASHER

€ 2.00

16

6431001D02
ref: 16

TORQUELINK,RR

€ 19.50

17

0911110016
ref: 17

BOLT(10X41)

€ 6.50

18

0910110036
ref: 18

BOLT(10X35)

€ 4.50

19

0916010005
ref: 19

WASHER(10.5X20X3.2)

€ 2.00

20

0831440103
ref: 20

NUT

€ 2.50

21

0411120208
ref: 21

PIN 20X20

€ 1.50
