SIGNAL GENERATOR
GS500EU 2000 (Y)

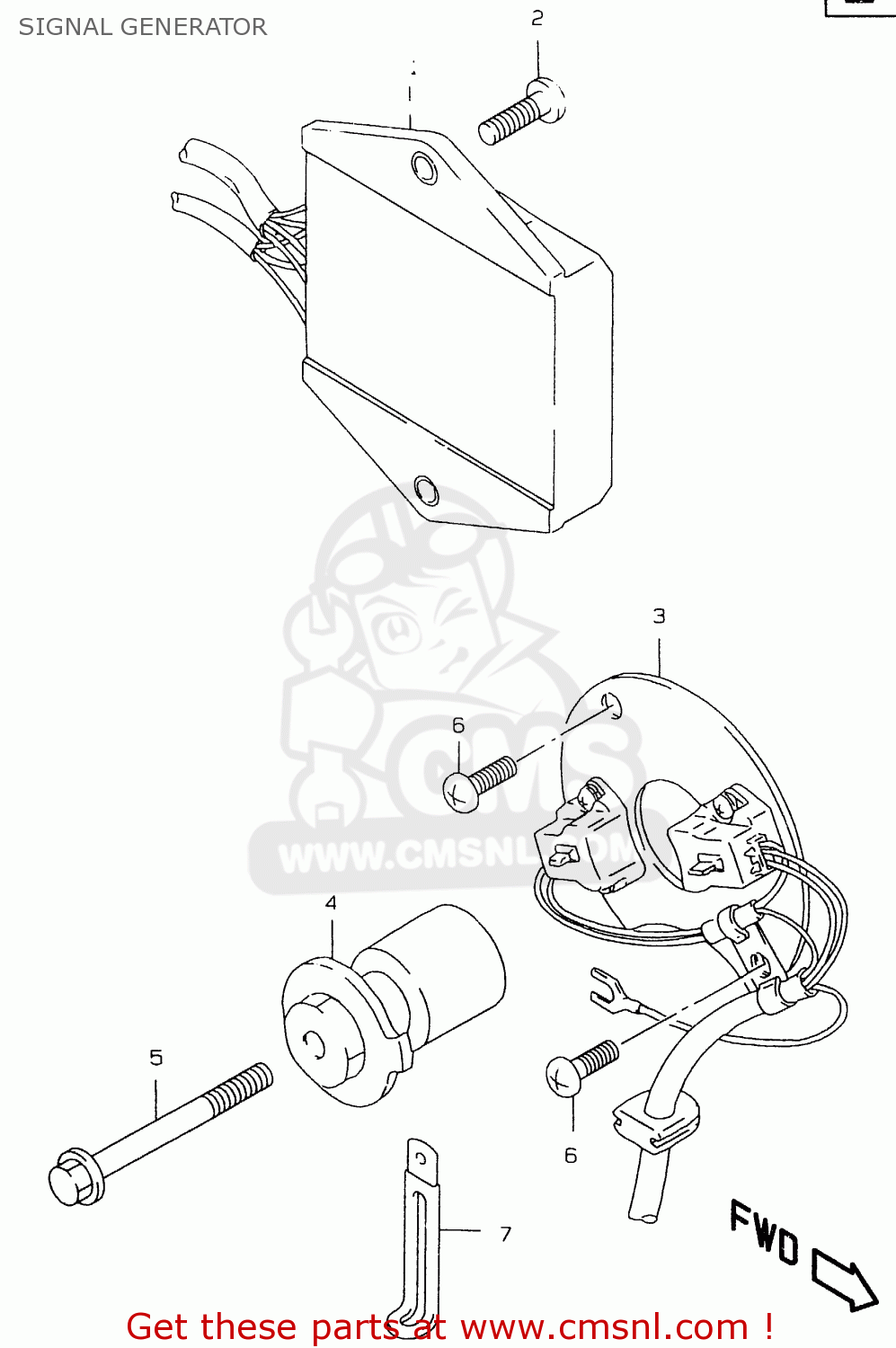

Signal generator diagram GS500EU 2000 (Y)
SIGNAL GENERATOR GS500EU 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
3290001D20
ref: 1
IGNITOR ASSY
€ 487.50
1
3290001D30
ref: 1
E4
IGNITER
€ 439.00
2
0214206163
ref: 2
SCREW
€ 2.50
3
3311044420
ref: 3
SIGNAL GENERATOR ASSY
€ 292.50
3
3311001D00
ref: 3
E4
SIGNAL GENERATOR ASSY
€ 205.50
4
3312001D00
ref: 4
ROTOR,SIGNAL
€ 90.50
4
3312001D20
ref: 4
E4
ROTOR,SIGNAL
€ 128.00
5
0910306064
ref: 5
BOLT(6X60)
€ 2.50
6
0211205103
ref: 6
SCREW
€ 2.00
7
0940406432
ref: 7
<-09404-06429
CLAMP(L:65)
€ 2.50
