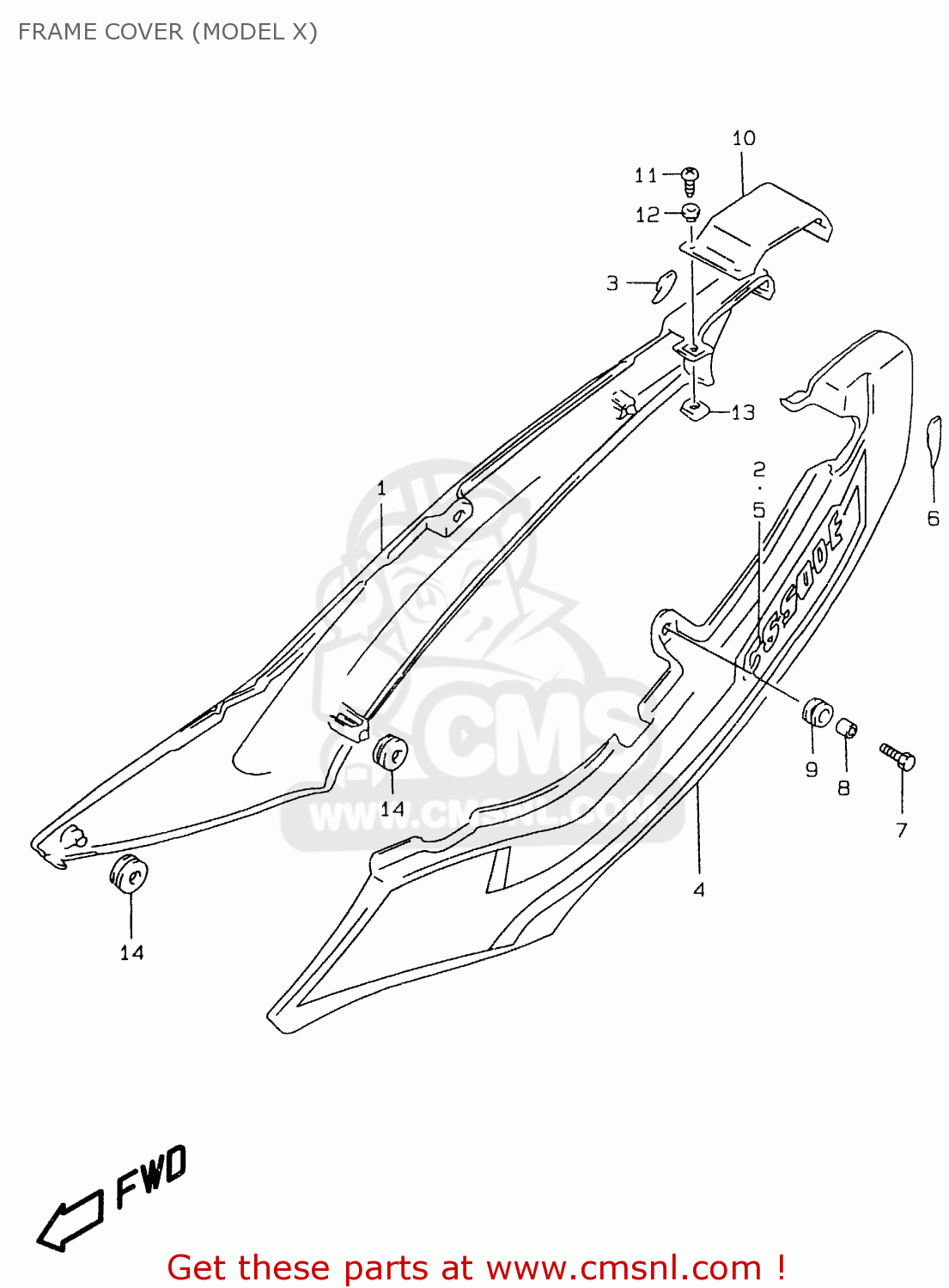

FRAME COVER (MODEL X)

ref

part #

description

quantity

1

4711001DG024K
ref: 1
FOR 33J

COVER,FRAME,R(CHARCOAL)

€ 224.50

1

4711001DG02XX
ref: 1
FOR Y98

COVER,FRAME,R(BLACK)

€ 237.00

1

4711001DG02VX
ref: 1
FOR Y0W

COVER,FRAME,R(BRACK)

€ 237.00

1

4711001DG01NX
ref: 1
FOR 163

COVER,FRAME,R(BLACK)

€ 123.50

2

6813501D20J6A
ref: 2
FOR 24K

TAPE,FRAME COVER,R

€ 53.50

2

6813501D20L6V
ref: 2
FOR 2XX

TAPE,FRAME COVER,R

€ 54.50

2

6813501D20L6W
ref: 2
FOR 2VX

TAPE,FRAME COVER,RIGHT

€ 64.00

2

6813501D20L9U
ref: 2
FOR 1NX

TAPE,FRAME COVER,R

€ 54.50

3

4711901D00
ref: 3

PROTECTOR,FRAME COVER,R

€ 7.00

4

4721001DG024K
ref: 4
FOR 33J

COVER,FRAME,L(CHARCOAL)

€ 224.50

4

4721001DG02XX
ref: 4
FOR Y98

COVER,FRAME,L(BLACK)

€ 237.00

4

4721001DG02VX
ref: 4
FOR Y0W

COVER,FRAME,L(BRACK)

€ 237.00

4

4721001DG01NX
ref: 4
FOR 163

COVER COMP,FRAME,LEFT

€ 219.00

5

6814501D20J6A
ref: 5
FOR 24K

TAPE,FRAME COVER,L

€ 54.50

5

6814501D20L6V
ref: 5
FOR 2XX

TAPE,FRAME COVER,L

€ 54.50

5

6814501D20L6W
ref: 5
FOR 2VX

TAPE,FRAME COVER,L

€ 54.50

5

6814501D20L9U
ref: 5
FOR 1NX

TAPE,FRAME COVER,L

€ 54.50

6

4721901D00
ref: 6

PROTECTOR,FRAME COVER,L

€ 7.00

7

0911606010
ref: 7

BOLT(6X20)

€ 2.00

8

0918006263
ref: 8

SPACER(6.5X9X9)

€ 2.00

9

0932009016
ref: 9

CUSHION

€ 2.50

10

4721501D0033J
ref: 10
FOR Y98,Y0W,163

COVER,FRAME CTR

€ 36.50

10

4721501D0024K
ref: 10
FOR 33J

COVER,FRAME CTR

€ 38.50

11

0324105123
ref: 11

SCREW L:12

€ 1.50

12

0916105017
ref: 12

WASHER(5.2X14X1.5)

€ 3.00

13

0914805004
ref: 13

NUT

€ 1.50

14

0932008018
ref: 14

CUSHION

€ 4.00

all assemblies
