CARBURETOR (NOT FOR U.S. MARKET)
GS500F 2005 (K5) USA (E03)

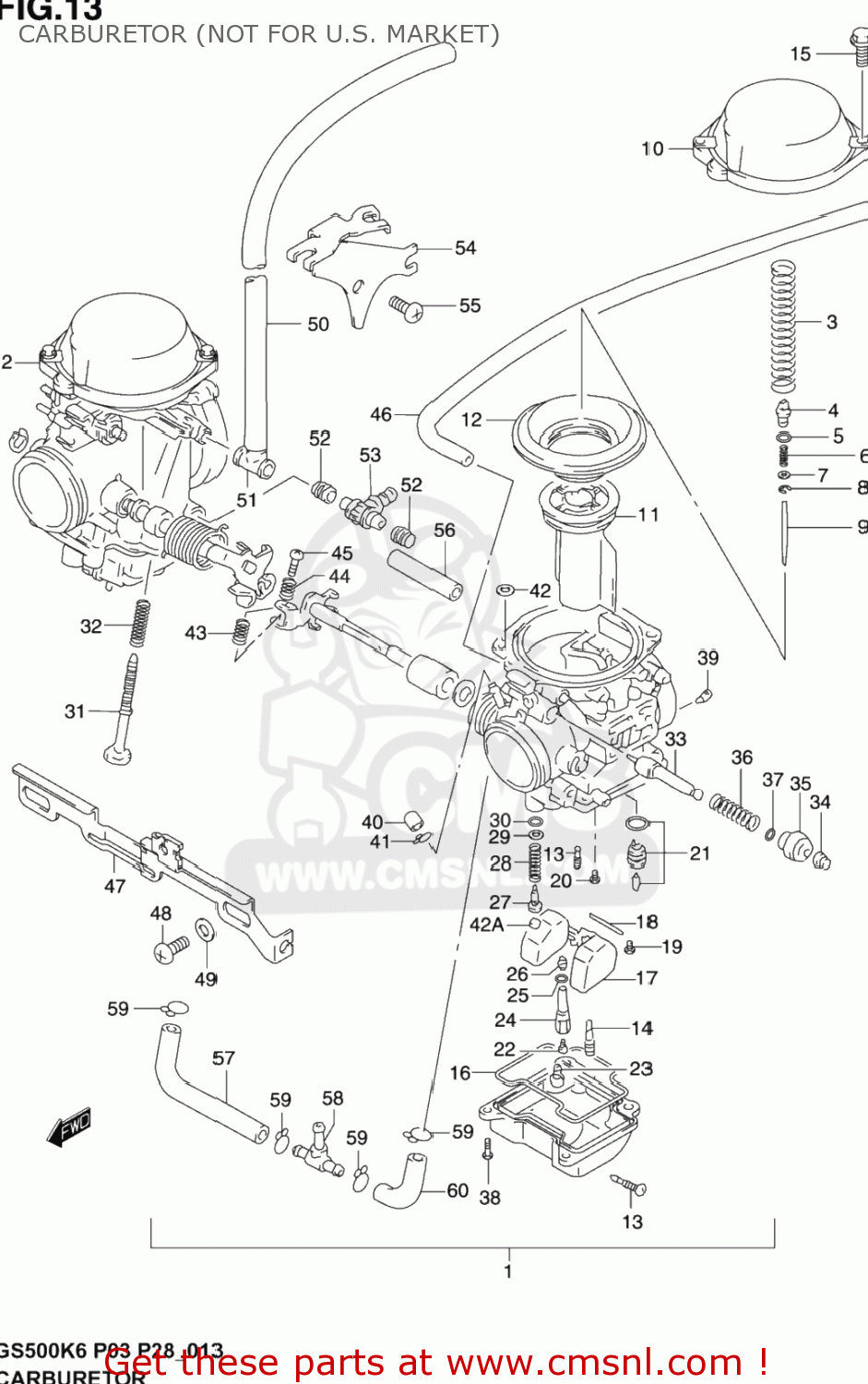

Carburetor (not for u.s. market) diagram GS500F 2005 (K5) USA (E03)
CARBURETOR (NOT FOR U.S. MARKET) GS500F 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320101DH0
ref: 1-1
CARBURETOR ASSY, LH
€ 0.00
1-2
1320101DJ0
ref: 1-2
CARBURETOR ASSY,L
€ 0.00
2-1
1320201DH0
ref: 2-1
CARBURETOR ASSY,R
€ 0.00
2-2
1320201DJ0
ref: 2-2
CARBURETOR ASSY,R
€ 0.00
3
1357319E00
ref: 3
SPRING
€ 7.50
4
1341833E00
ref: 4
HOLDER
€ 4.50
5
0928005004
ref: 5
O RING(D:1.9,ID:4.8)
€ 2.00
6
1348113F00
ref: 6
SPRING
€ 4.00
7
1338219E00
ref: 7
WASHER
€ 3.00
8
1338713F00
ref: 8
RING
€ 6.00
9
1338301DH0
ref: 9
NEEDLE,JET(5DH42-1)
€ 0.00
10
1350207F00
ref: 10
COVER ASSY,DIAPHRAGM
€ 47.00
11
1350129FA0
ref: 11
VALVE,PISTON
€ 57.50
12
1350717C01
ref: 12
DIAPHRAGM
€ 24.50
13
1324702340
ref: 13
PLUG,DRAIN
€ 5.50
14
0949217016
ref: 14
JET,PILOT(17.5)
€ 15.50
15
0211204107
ref: 15
SCREW
€ 2.00
16
1325844B00
ref: 16
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
17
1325004F00
ref: 17
FLOAT ASSY
€ 27.50
18
1325401010
ref: 18
PIN,FLOAT
€ 3.00
19
0211204083
ref: 19
02112-0408A
SCREW
€ 2.00
20
1360205A10
ref: 20
SCREW
€ 4.00
21
1337033E80
ref: 21
VALVE ASSY,NEEDLE(NI)
€ 61.00
22
0949125018
ref: 22
JET,MAIN(127.5)
€ 15.50
23
0949160010
ref: 23
JET,MAIN(60)
€ 16.00
24
1338507F00
ref: 24
HOLDER,JET
€ 29.00
25
1324643010
ref: 25
O RING
€ 4.00
26
0949400949
ref: 26
JET,NEEDLE(P-5M)
€ 38.00
27
1327933E00
ref: 27
ADJUSTER
€ 9.50
28
1326847070
ref: 28
SPRING
€ 5.00
29
1329129900
ref: 29
WASHER
€ 2.00
30
1329529900
ref: 30
O RING,PILOT AIR SCREW
€ 4.00
31
1326713F00
ref: 31
SCREW,ADJUST
€ 12.50
32
1327133C00
ref: 32
SPRING
€ 4.50
33
1341105300
ref: 33
PLUNGER
€ 23.50
34
1368231210
ref: 34
CAP,STARTER VALVE
€ 5.00
35
1341844080
ref: 35
GUIDE SCREW,PLUNGER
€ 8.00
36
1341726D00
ref: 36
SPRING
€ 5.50
37
1327847090
ref: 37
O RING
€ 2.00
38
1324733E00
ref: 38
SCREW
€ 3.00
39
0949332007
ref: 39
JET,AIR(160)
€ 11.50
40
1327484000
ref: 40
CAP
€ 5.50
41
0940106101
ref: 41
CLIP
€ 2.50
42
1329533010
ref: 42
O RING
€ 4.50
42A
1328105A00
ref: 42A
PLUG
€ 3.50
43
1326896111
ref: 43
SPRING,THROTTLE SCREW
€ 4.50
44
1327144B00
ref: 44
SPRING
€ 4.00
45
1326744B00
ref: 45
SCREW
€ 3.50
46
1368301DF0
ref: 46
HOSE
€ 17.50
47
1341301DE0
ref: 47
PLATE
€ 33.00
48
1360204F00
ref: 48
SCREW
€ 3.50
49
1355733E00
ref: 49
PACKING
€ 3.00
50
1368301DE0
ref: 50
HOSE
€ 18.50
51
1368301DB0
ref: 51
HOSE
€ 15.00
52
1367344B00
ref: 52
SEAL
€ 6.00
53
1368533EQ0
ref: 53
NIPPLE
€ 22.50
54
1356501DE0
ref: 54
BRACKET
€ 13.50
55
0212205103
ref: 55
02122-0510A
SCREW
€ 1.00
56
1368501DB0
ref: 56
PIPE
€ 11.00
57
1368448B10
ref: 57
HOSE
€ 19.50
58
1368548B00
ref: 58
NIPPLE
€ 9.00
59
0940110410
ref: 59
09401-10401
CLIP
€ 1.50
60
1368448B10
ref: 60
HOSE
€ 19.50
