CLUTCH

GS500F 2005 (K5) USA (E03)

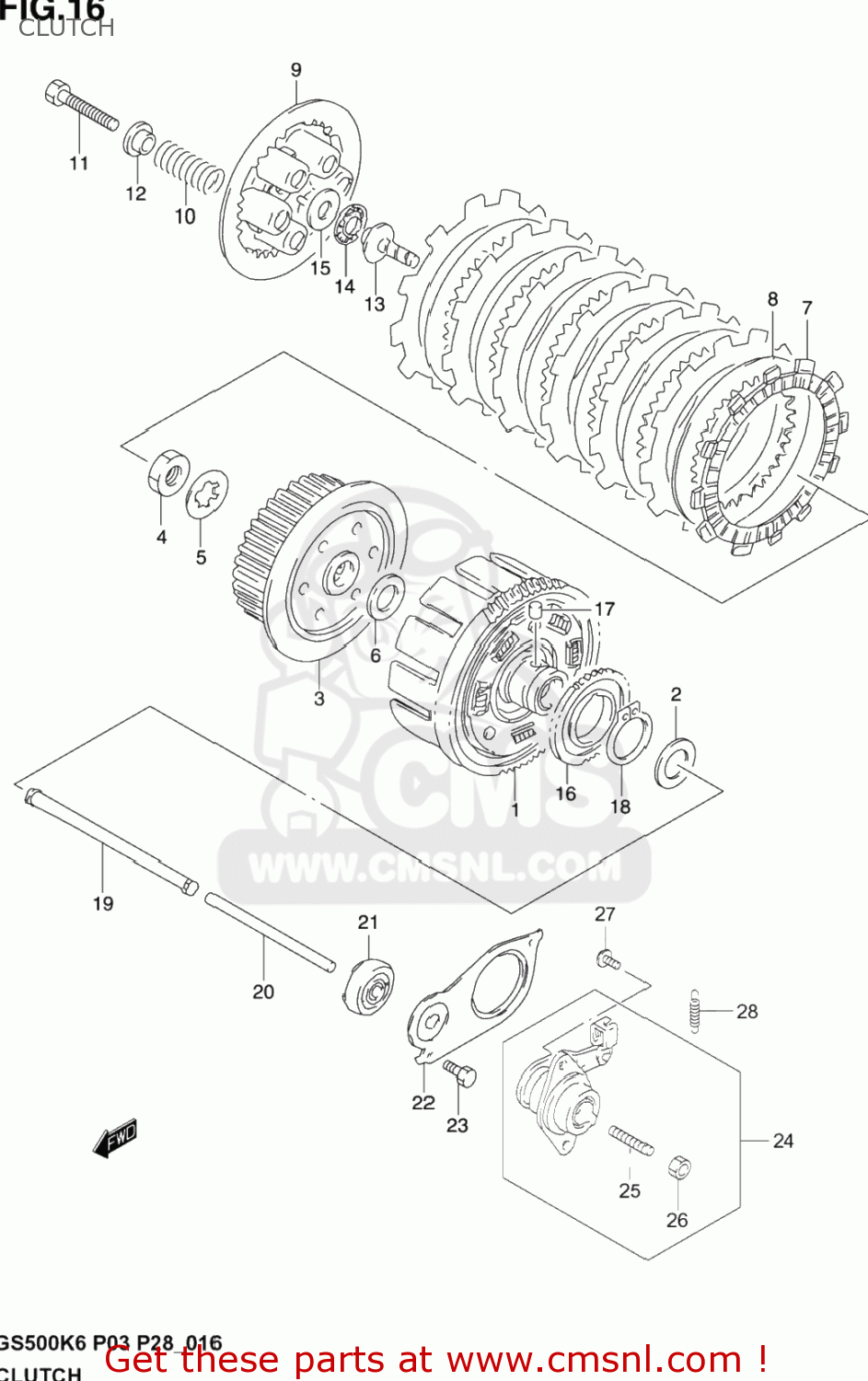

Clutch diagram GS500F 2005 (K5) USA (E03)

CLUTCH GS500F 2005 (K5) USA (E03)

CLUTCH GS500F 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2120044102
ref: 1

GEAR ASSY,PRI DRIVEN

€ 333.00

2

0918125223
ref: 2

SHIM(25X38X1)

€ 3.00

3

2141144101
ref: 3

HUB,CLUTCH SLEEVE

€ 56.50

4

0914020001
ref: 4

NUT

€ 3.50

5

0916720006
ref: 5
09167-20009

WASHER,LOCK

€ 3.00

6

0916020015
ref: 6

WASHER(20X44X3)

€ 4.50

7

2144137400
ref: 7

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

8

2145128C31
ref: 8

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 10.50

9

2146214301
ref: 9

DISC,CLUTCH PRESSURE

€ 51.00

10

0944020019
ref: 10

SPRING

€ 8.00

11

0910006145
ref: 11

BOLT(6X40)

€ 2.50

12

2141401D00
ref: 12

SPACER,CLUTCH SLEEVE HUB

€ 5.50

13

2312144100
ref: 13

PIECE,CLUTCH PUSH

€ 21.50

14

0926315003
ref: 14

BEARING(15X28X2)

€ 7.00

15

0916015045
ref: 15

WASHER(15.5X28X1)

€ 4.00

16

1632101D10
ref: 16

GEAR,OIL PUMP DRIVE(NT:39)

€ 53.00

17

0926106002
ref: 17

PIN(6X6)

€ 1.50

18

0833131383
ref: 18

CIRCLIP

€ 2.50

19

2311044111
ref: 19

ROD,PUSH,R

€ 13.00

20

2311124A01
ref: 20

ROD,CLUTCH PUSH,L

€ 15.00

21

0928506011
ref: 21

SEAL,OIL(6X34X10)

€ 9.50

22

2311744102
ref: 22

RETAINER,PUSH ROD OIL SEAL

€ 6.50

23

0150006123
ref: 23
01500-0612A

BOLT

€ 2.00

24

2320001D00
ref: 24

SCREW ASSY,CLUTCH RELEASE

€ 78.00

25

0913406010
ref: 25

SCREW(6X25)

€ 3.00

26

0831000067
ref: 26

NUT

€ 2.50

27

0314106163
ref: 27

SCREW 6X16

€ 2.00

28

0944308001
ref: 28

SPRING

€ 3.00
