Buy Suzuki GS Parts Online
home
HANDLEBAR (MODEL K4/K5/K6)
GS500F 2005 (K5) USA (E03)

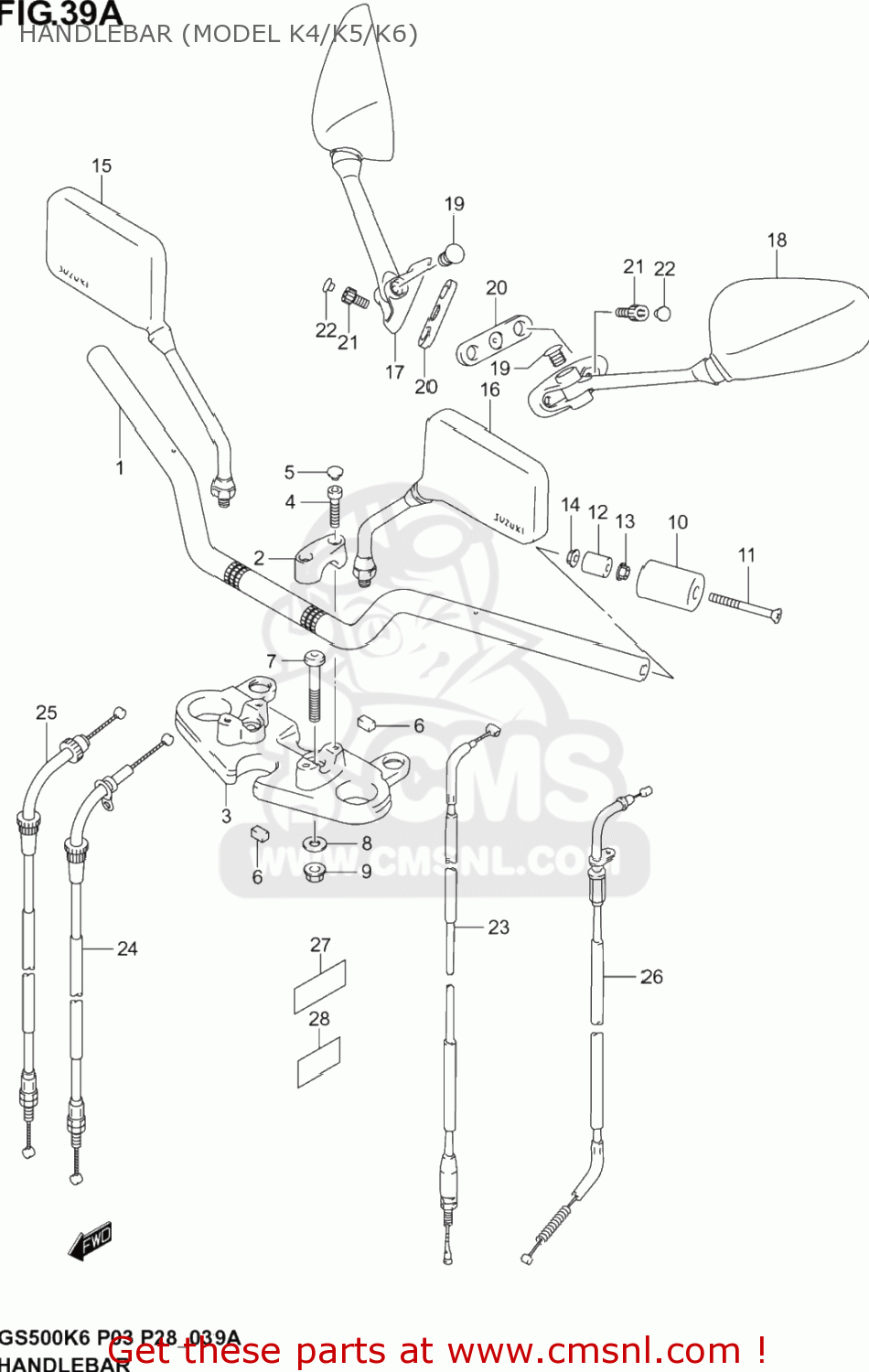

Handlebar (model k4/k5/k6) diagram GS500F 2005 (K5) USA (E03)
HANDLEBAR (MODEL K4/K5/K6) GS500F 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611101DC0ETN
ref: 1
HANDLEBAR
€ 49.00
2
562110BE00
ref: 2
HOLDER,UPPER
€ 21.00
3
562210BE00
ref: 3
HOLDER, LOWER
€ 268.50
4
D710908307
ref: 4
BOLT
€ 1.50
5
0925006011
ref: 5
CAP(OD:11)
€ 2.50
6
5624101D00
ref: 6
CUSHION,HANDLE HOLDER
€ 5.50
7
0713010653
ref: 7
07130-1065B
BOLT
€ 3.50
8
D832291105
ref: 8
WASHER
€ 1.00
9
0831931108
ref: 9
NUT
€ 3.00
10
5627804F00
ref: 10
56200-01841
BALANCER,HANDLEBAR
€ 49.50
11
0212206853
ref: 11
02122-0685B
SCREW,HANDLE B
€ 2.00
12
5627244500
ref: 12
EXPANDER,HANDLE BALANCER
€ 3.00
13
0831610083
ref: 13
08316-1008B
NUT
€ 3.00
14
0915906024
ref: 14
NUT
€ 2.00
15
5650003F30
ref: 15
56500-03F31
MIRROR ASSEMBLY,REAR VIEW
€ 72.00
16
5660003F30
ref: 16
56600-03F31
MIRROR ASSEMBLY,REAR VIEW
€ 143.50
17
5650001DA0
ref: 17
MIRROR ASSY,RR VIEW,R
€ 130.50
18
5660001DA0
ref: 18
MIRROR ASSY,RR VIEW,L
€ 130.50
19
0925009001
ref: 19
CAP(OD:14)
€ 1.00
20
9457624F00
ref: 20
CUSHION,RR VIEW MIRRORR
€ 5.00
21
D710706165
ref: 21
D7107-0616B
BOLT
€ 1.00
22
0925005009
ref: 22
CAP(OD:10)
€ 2.50
23
5820001DA0
ref: 23
CABLE ASSY,CLUTCH
€ 28.50
24
5830001DA0
ref: 24
CABLE ASSY,THROTTLE NO.1
€ 36.00
25
5830001DB0
ref: 25
CABLE ASSY,THROTTLE NO.2
€ 33.50
26
5841001D70
ref: 26
CABLE,STARTER
€ 30.00
27
94474C22D00J000
ref: 27
94474-22D00
PROTECTOR, CABLE
€ 6.50
28
72895C78A30J000
ref: 28
72895-78A30
PROTECTOR, CABLE
€ 1.50
