FUEL TANK (MODEL K5)

GS500F 2006 (K6) USA (E03)

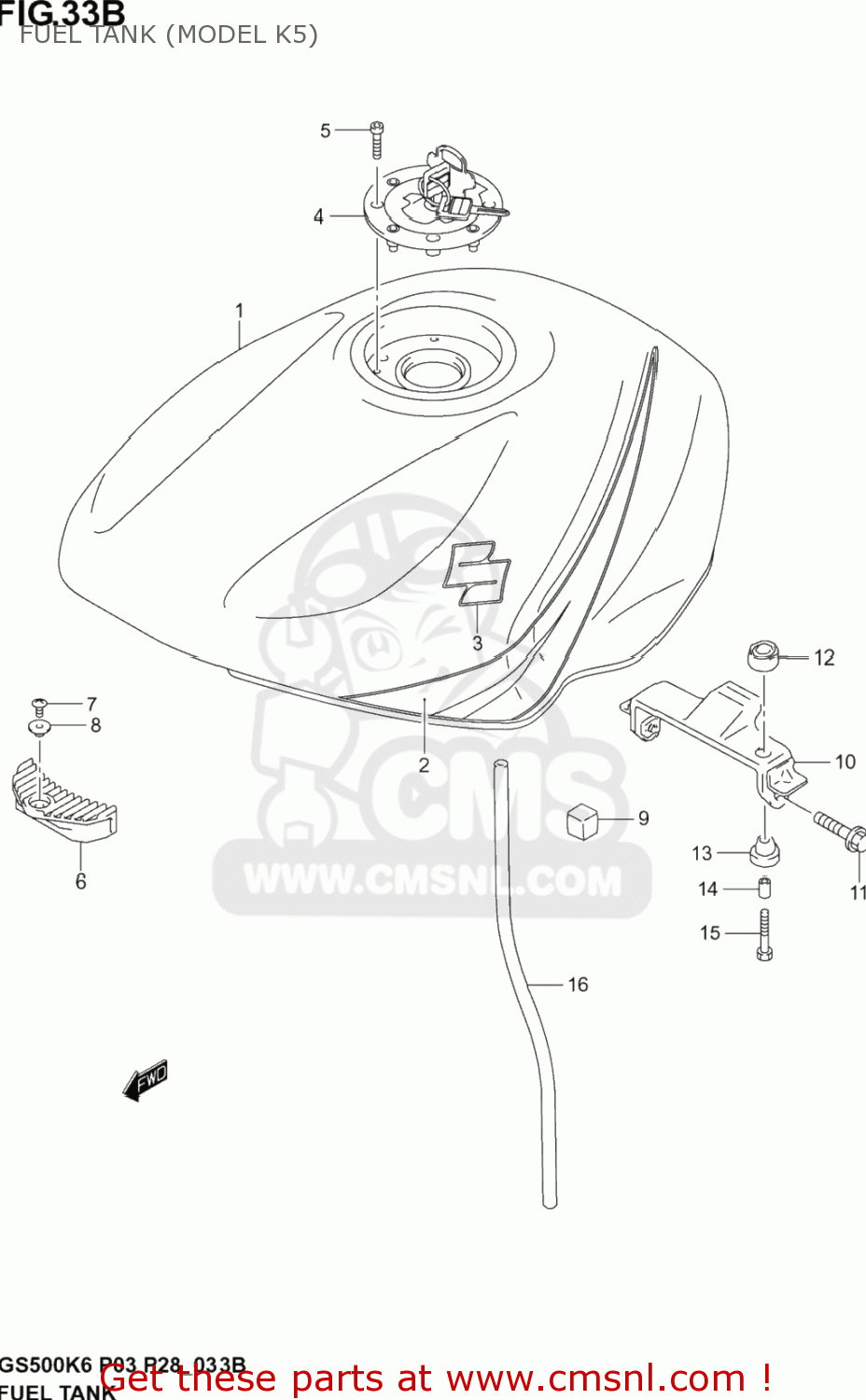

Fuel tank (model k5) diagram GS500F 2006 (K6) USA (E03)

FUEL TANK (MODEL K5) GS500F 2006 (K6) USA (E03)

FUEL TANK (MODEL K5) GS500F 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4910001D30YC2
ref: 1-1

TANK ASSY,FUEL(BLUE)

€ 0.00

1-2

4910001D30Y7L
ref: 1-2

TANK ASSY,FUEL(BLACK)

€ 0.00

1-3

4910001D30Y9H
ref: 1-3

TANK ASSY, FUEL (YELLOW) E3, E28

€ 0.00

1-4

4910001D50YC2
ref: 1-4

TANK ASSY,FUEL(BLUE)

€ 0.00

1-5

4910001D50Y7L
ref: 1-5

TANK ASSY,FUEL(BLACK)

€ 0.00

1-6

4910001D50Y9H
ref: 1-6

TANK ASSY, FUEL (YELLOW) E33

€ 0.00

2-1

6811001DC0BLN
ref: 2-1

TAPE SET,FUEL TANK

€ 37.00

2-2

6811001DC0BVL
ref: 2-2

TAPE SET,FUEL TANK

€ 35.50

2-3

6811001DC0FT6
ref: 2-3

TAPE SET,FUEL TANK

€ 45.00

3

6811118G20
ref: 3

EMBLEM,S

€ 22.50

4-1

4420133820
ref: 4-1

CAP SET,FUEL TANK

€ 234.50

4-2

4420033890
ref: 4-2

CAP ASSY,FUEL TANK FILLER

€ 0.00

5

0910605017
ref: 5

BOLT(5X20)

€ 3.00

6

4451127E00
ref: 6

CUSHION,FUEL TANK FR

€ 11.00

7

D211605105
ref: 7

SCREW

€ 1.00

8

0916905012
ref: 8

WASHER

€ 3.00

9

4454101D00
ref: 9

CUSHION,FUEL TANK SIDE

€ 6.00

10

445500BE00
ref: 10

BRACKET, REAR

€ 25.50

11

0155108403
ref: 11
01551-0840B

BOLT

€ 2.50

12

0932014017
ref: 12

CUSHION

€ 3.00

13

0932010038
ref: 13

CUSHION

€ 4.00

14

0918006271
ref: 14

SPACER(6.5X9X18)

€ 2.00

15

0911606172
ref: 15

BOLT(6X30)

€ 2.50

16

44423C0BE00J000
ref: 16
44423-01D00

HOSE, DRAIN

€ 0.00
