REAR SWINGING ARM (NOT FOR U.S. MARKET)

GS500F 2006 (K6) USA (E03)

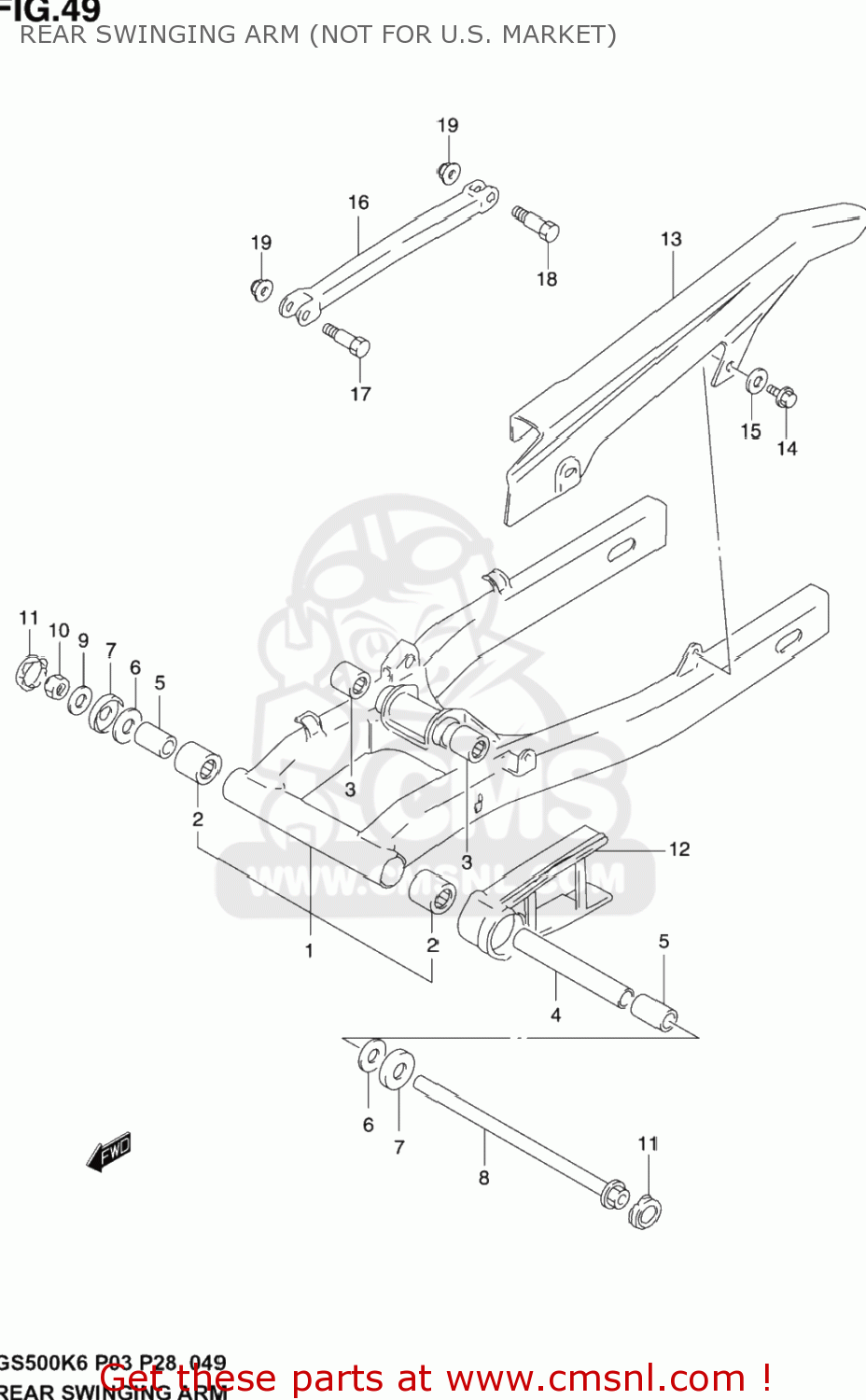

Rear swinging arm (not for u.s. market) diagram GS500F 2006 (K6) USA (E03)

REAR SWINGING ARM (NOT FOR U.S. MARKET) GS500F 2006 (K6) USA (E03)

REAR SWINGING ARM (NOT FOR U.S. MARKET) GS500F 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6100001D10YCH
ref: 1

SWINGING ARM

€ 168.00

2

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

61282C01D00J000
ref: 4
61282-01D00

SPACER, CENTER

€ 12.50

5

61251C45001J000
ref: 5
61251-45001

SPACER, PIVOT BEARING

€ 9.50

6

0916014020
ref: 6

WASHER(14.2X34X1)

€ 2.50

7

6126245002
ref: 7

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

8

6121130B00
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 22.50

9

0916014009
ref: 9

WASHER(14.5X29X2.3)

€ 3.50

10

0915914019
ref: 10

NUT

€ 8.50

11

6122248B00
ref: 11

CAP,RR SWINGING ARM PIVOT

€ 4.00

12

6127301D00
ref: 12

BUFFER,CHAIN TOUCH DEFENSE

€ 26.00

13

61310C01D00J000
ref: 13

CASE, CHAIN

61310C01D00J000

€ 38.50

14

D211606125
ref: 14
01550-0610B

SCHRIOEF

€ 2.50

15

0916906026
ref: 15

WASHER

€ 2.00

16

6431001D02
ref: 16

TORQUELINK,RR

€ 19.50

17

0911110052
ref: 17

BOLT(10X41)

€ 5.50

18

0910010187
ref: 18

BOLT(10X34)

€ 4.50

19

0831931103
ref: 19
08319-3110A

NUT

€ 3.00
