REAR SWINGING ARM (MODEL K4/K5/K6)

GS500F 2006 (K6) USA (E03)

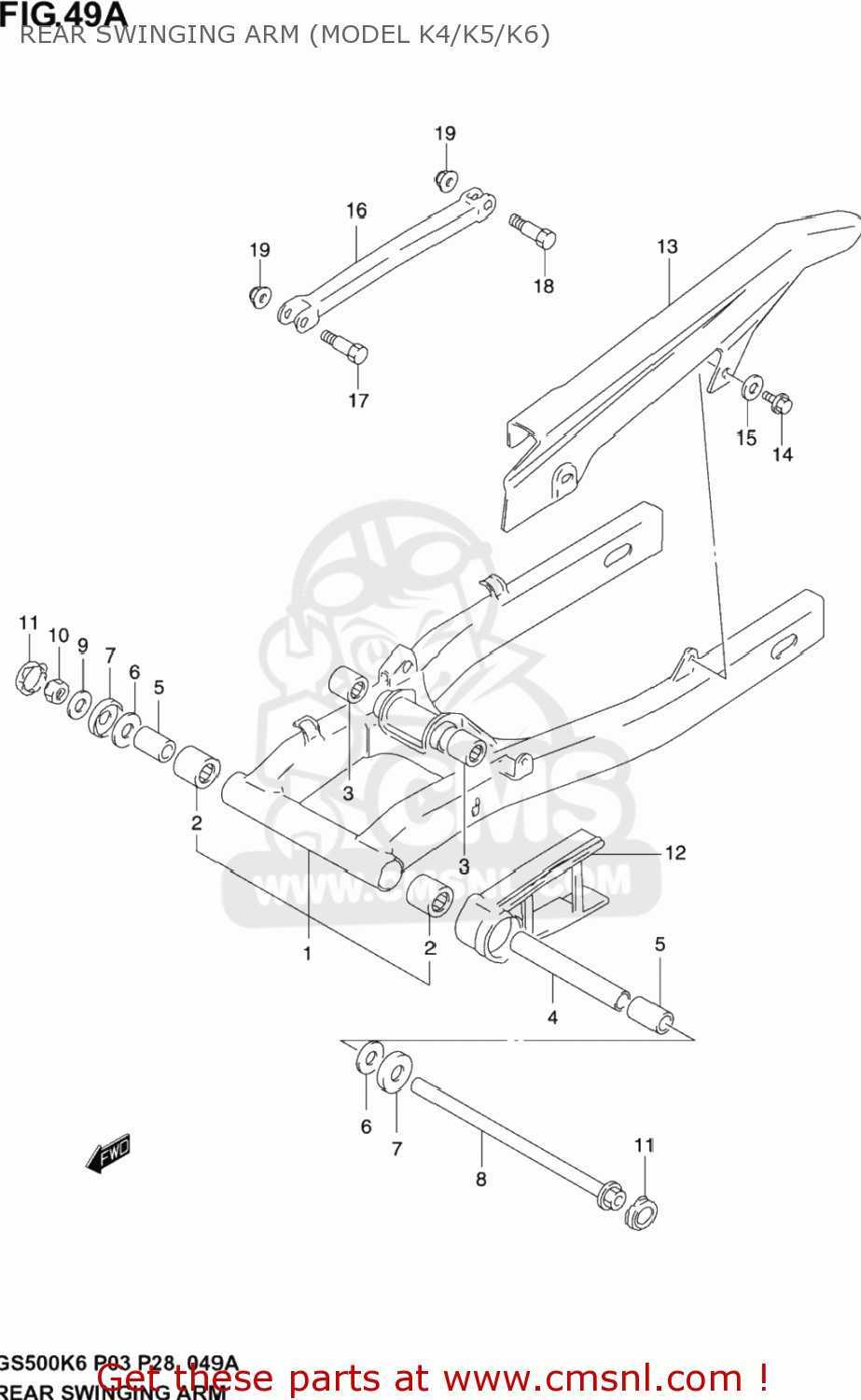

Rear swinging arm (model k4/k5/k6) diagram GS500F 2006 (K6) USA (E03)

REAR SWINGING ARM (MODEL K4/K5/K6) GS500F 2006 (K6) USA (E03)
REAR SWINGING ARM (MODEL K4/K5/K6) GS500F 2006 (K6) USA (E03)
REAR SWINGING ARM (MODEL K4/K5/K6) GS500F 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
61000C01D10JENM
ref: 1
SWINGING ARM ASSY, REAR BLACK
€ 168.00
2
0926322017
ref: 2
BEARING(22X29X30)
0926322017
€ 18.50
3
0926317037
ref: 3
BEARING(17X24X25)
0926317037
€ 19.00
4
61282C01D00J000
ref: 4
61282-01D00
SPACER, CENTER
€ 12.50
5
61251C45001J000
ref: 5
61251-45001
SPACER, PIVOT BEARING
€ 9.50
6
0916014020
ref: 6
WASHER(14.2X34X1)
0916014020
€ 2.50
7
6126245002
ref: 7
CVR,RR SWGARM DUST SEAL(OD:40)
6126245002
€ 4.50
8
6121130B00
ref: 8
SHAFT,RR SWINGINGARM PIVOT
6121130B00
€ 22.50
9
0916014009
ref: 9
WASHER(14.5X29X2.3)
0916014009
€ 3.50
10
0915914019
ref: 10
NUT
0915914019
€ 8.50
11
6122248B00
ref: 11
CAP,RR SWINGING ARM PIVOT
6122248B00
€ 4.00
12
6127301D00
ref: 12
BUFFER,CHAIN TOUCH DEFENSE
6127301D00
€ 26.00
13
61310C01D00J000
ref: 13
CASE, CHAIN
61310C01D00J000
€ 38.50
14
D211606125
ref: 14
01550-0610B
SCHRIOEF
€ 2.50
15
0916906026
ref: 15
WASHER
0916906026
€ 2.00
16
6431001D02
ref: 16
TORQUELINK,RR
6431001D02
€ 19.50
17
0911110052
ref: 17
BOLT(10X41)
0911110052
€ 5.50
18
0910010187
ref: 18
BOLT(10X34)
0910010187
€ 4.50
19
0831931103
ref: 19
08319-3110A
NUT
0831931103
€ 3.00
