OIL FILTER - OIL PUMP
GS500F 2006 (K6) USA (E03)

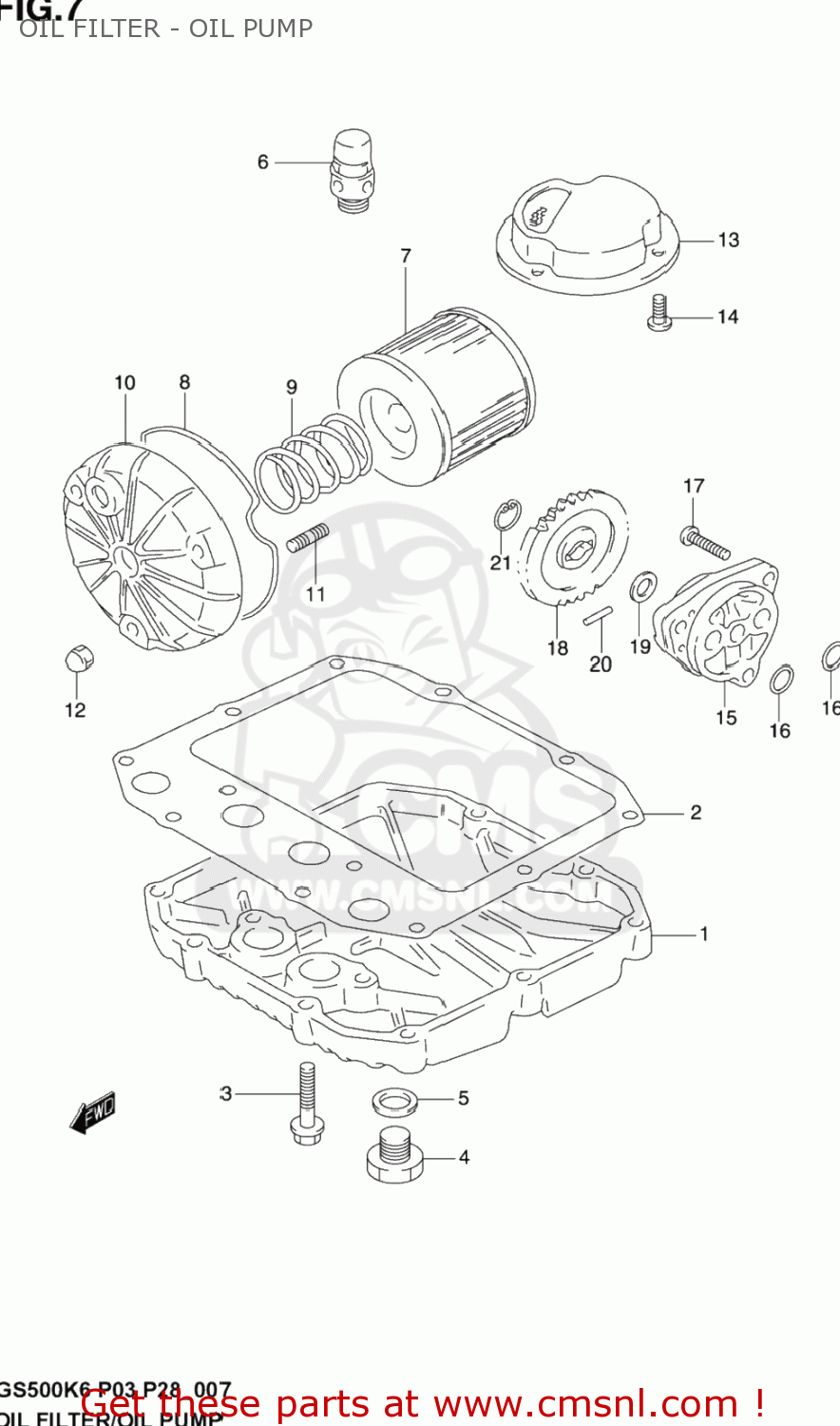

Oil filter - oil pump diagram GS500F 2006 (K6) USA (E03)
OIL FILTER - OIL PUMP GS500F 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151101D00
ref: 1
PAN,OIL
€ 136.50
2
1148901D00
ref: 2
GASKET,OIL PAN(ASB) (NAS)
€ 9.50
3
0155006303
ref: 3
01550-0630A
BOLT
€ 2.50
4
0924714026
ref: 4
PLUG(14X12)
€ 3.50
5
0916814002
ref: 5
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
6
1644011D00
ref: 6
REGULATOR,ENGINE OIL(6.5K)
€ 37.00
7
1651045040
ref: 7
FILTER ASSY,ENGINE OIL
€ 7.50
8
1651845000
ref: 8
O RING,OIL FILTER CHAMBER CAP
€ 7.50
9
0944032004
ref: 9
SPRING
€ 13.50
10
1651245D00
ref: 10
CAP,OIL FILTER
€ 47.00
11
0142106208
ref: 11
01421-0620A
STUD 6X20
€ 2.50
12
0831320063
ref: 12
08313-2006A
NUT
€ 2.00
13
1652001D01
ref: 13
STRAINER,ENGINE OIL
€ 12.50
14
0157006123
ref: 14
01570-0612A
BOLT
€ 1.50
15
1640044100
ref: 15
PUMP ASSY,ENGINE OIL
€ 164.50
16
0928013004
ref: 16
O RING(D:1.9,ID:13)
€ 2.50
17
0211206253
ref: 17
02112-0625A
SCREW
€ 1.50
18
1633101D10
ref: 18
GEAR,OIL PUMP DRIVEN
€ 46.00
19
0918110158
ref: 19
SHIM(10X18X0.5)
€ 2.50
20
0926104009
ref: 20
PIN(4X15.8)
€ 1.50
21
0833131106
ref: 21
08331-3110A
CIRCLIP,10MM
€ 2.00
