REAR MASTER CYLINDER (NOT FOR U.S. MARKET)

GS500F 2006 (K6) USA (E03)

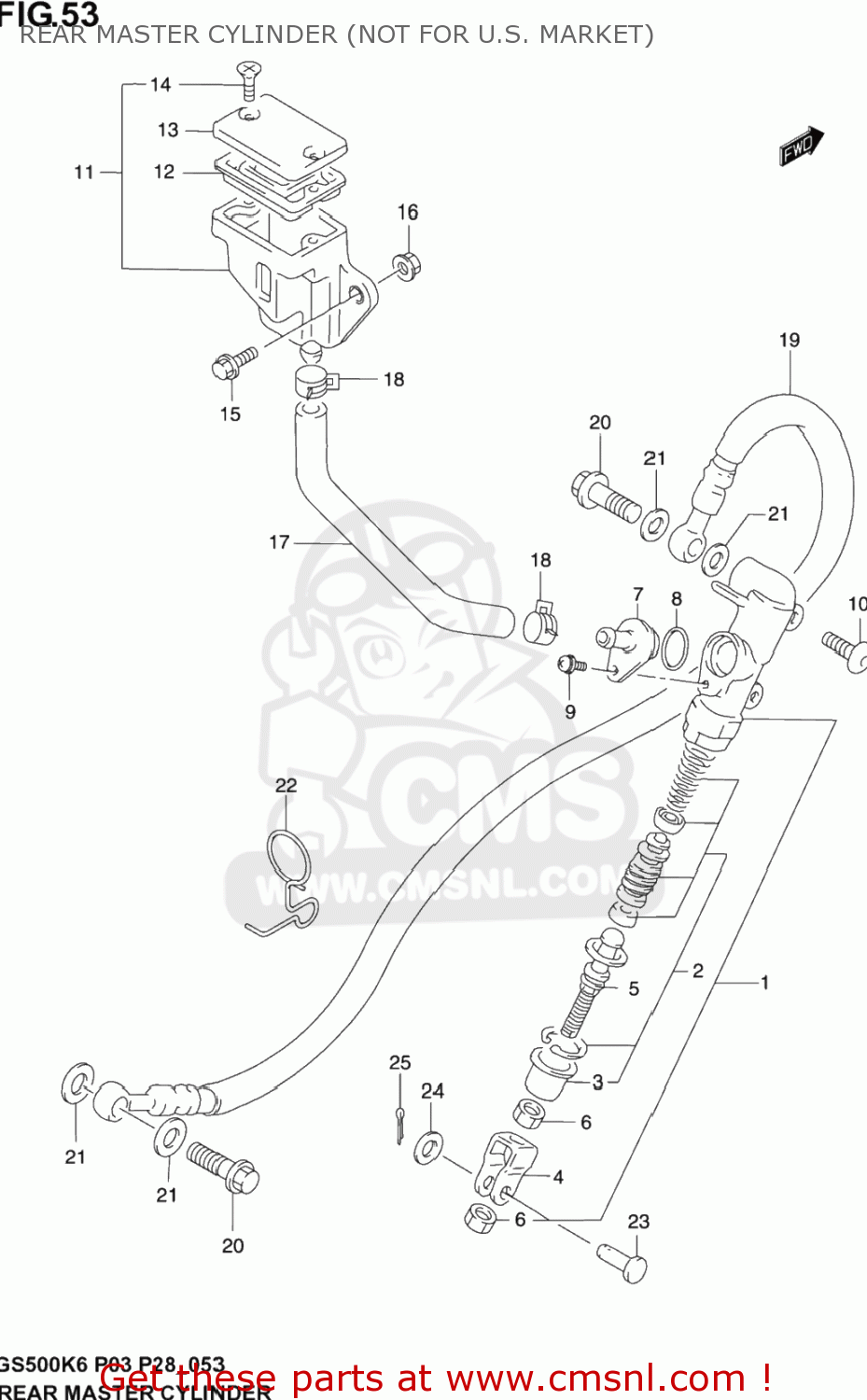

Rear master cylinder (not for u.s. market) diagram GS500F 2006 (K6) USA (E03)

REAR MASTER CYLINDER (NOT FOR U.S. MARKET) GS500F 2006 (K6) USA (E03)

REAR MASTER CYLINDER (NOT FOR U.S. MARKET) GS500F 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6960001D00
ref: 1

CYLINDER ASSY,RR MASTER

€ 174.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969219A00
ref: 4

YOKE

€ 10.50

5

6967001D00
ref: 5

ROD,PUSH

€ 24.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200A00
ref: 7

CONNECTOR

€ 5.50

8

6968634200
ref: 8

O RING

€ 3.50

9

0211274123
ref: 9
02112-7412A

SCREW

€ 2.50

10

0913906057
ref: 10

SCREW(6X25)

€ 2.50

11

6974001D02
ref: 11

TANK ASSY,RR RESERVOIR

€ 58.00

12

5966704700
ref: 12

DIAPHRAGM

€ 8.00

13

5966905D00
ref: 13

CAP

€ 13.50

14

6968904A00
ref: 14

SCREW

€ 2.00

15

D155706165
ref: 15

BOLT

€ 1.00

16

D832010065
ref: 16

NUT

€ 1.00

17

6973101D02
ref: 17

HOSE,RESERVOIR TANK

€ 19.50

18

0940113417
ref: 18

CLIP

€ 2.50

19

6948001D20
ref: 19

HOSE,RR BRAKE

€ 112.00

20

0936010041
ref: 20
09360-10061

BOLT UNION

€ 6.50

21

09161C10009J000
ref: 21
09161-10009

WASHER

09161C10009J000

€ 2.00

22

6924301D10
ref: 22

GUIDE,RR BRAKE HOSE

€ 7.00

23

0920006037
ref: 23
09200-06068

PIN

€ 5.00

24

D832201065
ref: 24

WASHER

€ 2.00

25

D411120158
ref: 25

PIN, COTTER

€ 3.00
