GS550 1977 (B) USA (E03)

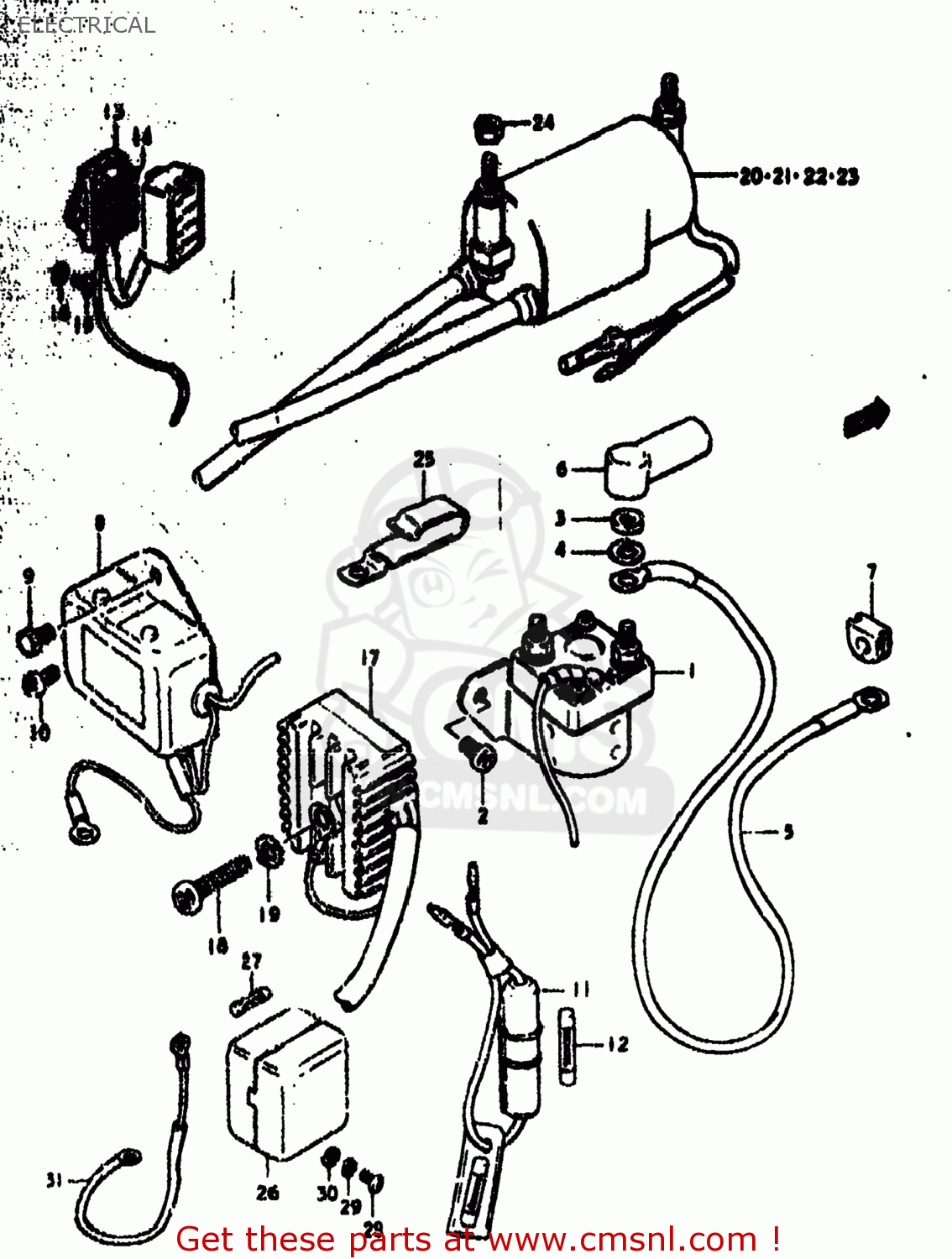

Electrical diagram GS550 1977 (B) USA (E03)
ELECTRICAL GS550 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206068
ref: 2
02112-06067
SCREW,6X6
€ 2.00
3
0831022068
ref: 3
08310-00067
NUT 6MM
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5-1
3385024102
ref: 5-1
33850-47010
WIRE,STARTER MOTOR LEAD
€ 50.00
5-2
3385047010
ref: 5-2
WIRE,STARTER MOTOR LEAD
€ 50.00
6
3186135100
ref: 6
31861-48B10
CAP,STARTER RELAY
€ 4.50
7
3148247000
ref: 7
GROMMET,STARTER CABLE
€ 2.00
8-1
3250045011
ref: 8-1
REGULATOR ASSEMBLY
€ 952.00
8-2
3250045021
ref: 8-2
REGULATOR ASSY,VOLTAGE
€ 952.00
9
0110706108
ref: 9
01500-06107
BOLT
€ 2.00
10
0211206088
ref: 10
02112-06087
SCREW
€ 2.00
11
3674015010
ref: 11
36740-15011
BOX ASSEMBLY,FUSE
€ 11.00
12
0948115001
ref: 12
FUSE(15A)
€ 3.00
13
3674049000
ref: 13
36740-49X00
BOX ASSEMBLY,FUSE
€ 81.50
14-1
0948115001
ref: 14-1
FUSE(15A)
€ 3.00
14-2
0948110001
ref: 14-2
FUSE(10A)
€ 2.00
15
0211206128
ref: 15
02112-06127
SCREW 6X12
€ 2.00
16
0832221068
ref: 16
08322-01067
WASHER
€ 2.00
17
3280044010
ref: 17
RECTIFIER ASSY
€ 269.00
18
0211206258
ref: 18
02112-06257
SCREW
€ 2.00
19
0832121068
ref: 19
08321-01067
LOCK WASHER
€ 2.50
20
3341045010
ref: 20
33410-45012
COIL ASSEMBLY,IGNITION
€ 152.50
21
3342045010
ref: 21
33410-45012
COIL ASSEMBLY,IGNITION
€ 152.50
22
3341045020
ref: 22
33410-45021
COIL ASSEMBLY,IGNITION
€ 235.00
23
3342045020
ref: 23
33410-45021
COIL ASSEMBLY,IGNITION
€ 235.00
24
0831011068
ref: 24
08310-00067
NUT
€ 2.50
25
0940306307
ref: 25
CLAMP
€ 4.50
26
3885047000
ref: 26
TERMINAL ASSEMBLY,POWER SO
€ 94.00
27
0948110001
ref: 27
FUSE(10A)
€ 2.00
28
0211206168
ref: 28
02112-06167
SCREW
€ 2.50
29
0832121068
ref: 29
08321-01067
LOCK WASHER
€ 2.50
30
0832221068
ref: 30
08322-01067
WASHER
€ 2.00
31
3685147000
ref: 31
WIRE,POWER SOURCE LEAD
€ 8.50
31
3685147000
ref: 31
WIRE,POWER SOURCE LEAD
€ 8.50
