OIL PUMP
GS550 1977 (B) USA (E03)

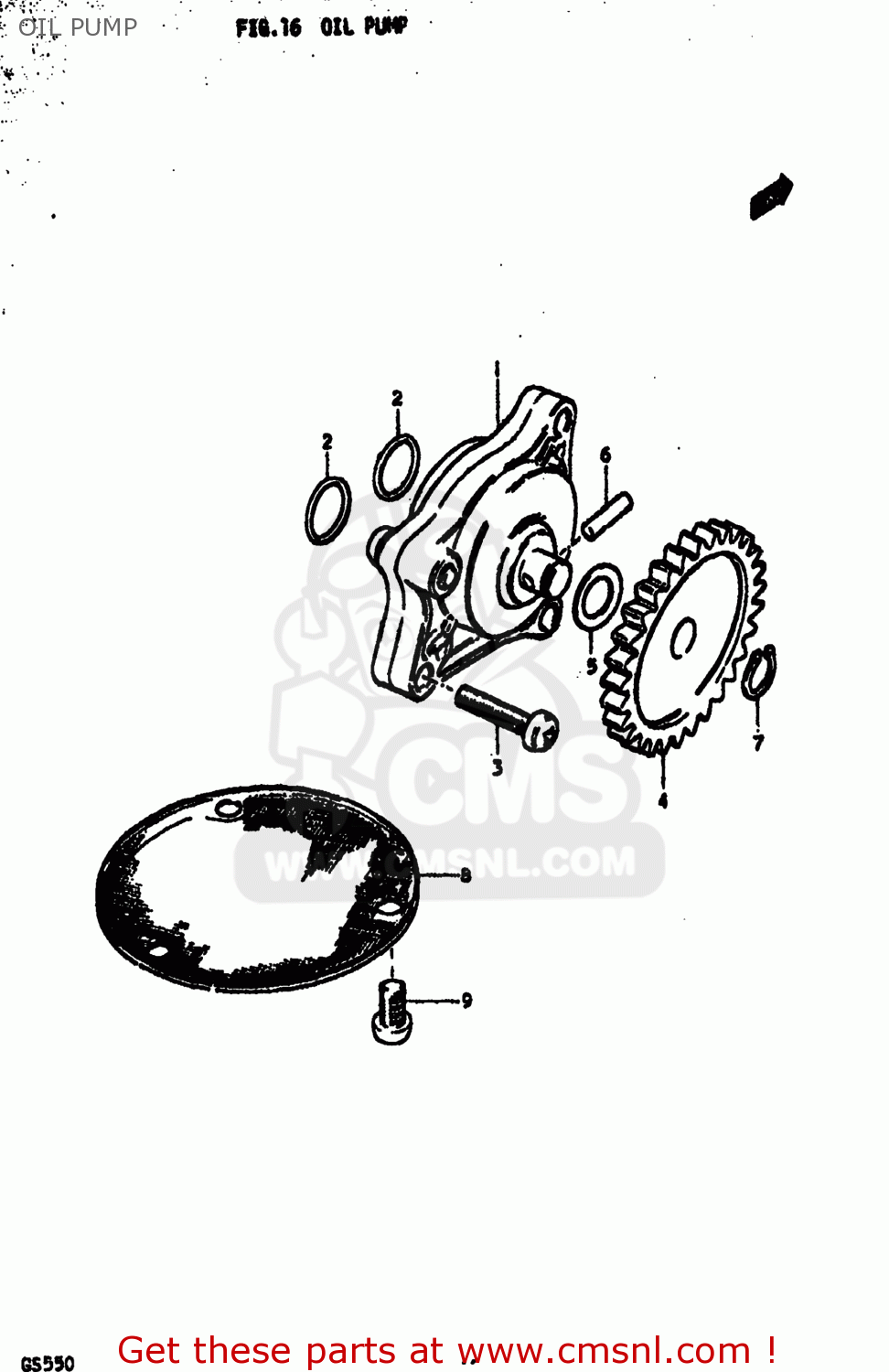

Oil pump diagram GS550 1977 (B) USA (E03)
OIL PUMP GS550 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1640045011
ref: 1-1
16400-45020
PUMP ASSEMBLY,OIL
€ 185.00
1-2
1640045013
ref: 1-2
16400-45020
PUMP ASSEMBLY,OIL
€ 185.00
2
0928013004
ref: 2
O RING(D:1.9,ID:13)
€ 2.50
3
0211206258
ref: 3
02112-06257
SCREW
€ 2.00
4
1633147000
ref: 4
GEAR,OIL PUMP DRIVEN
€ 25.00
5
0822110185
ref: 5
SHIM
€ 2.00
6
0926104009
ref: 6
PIN(4X15.8)
€ 1.50
7
0833131109
ref: 7
CIRCLIP
€ 2.00
8
1652045000
ref: 8
16520-45010
STRAINER,ENGINE OIL
€ 12.00
9
0211206128
ref: 9
02112-06127
SCREW 6X12
€ 2.00
