REAR BRAKE (GS550B

GS550 1977 (B) USA (E03)

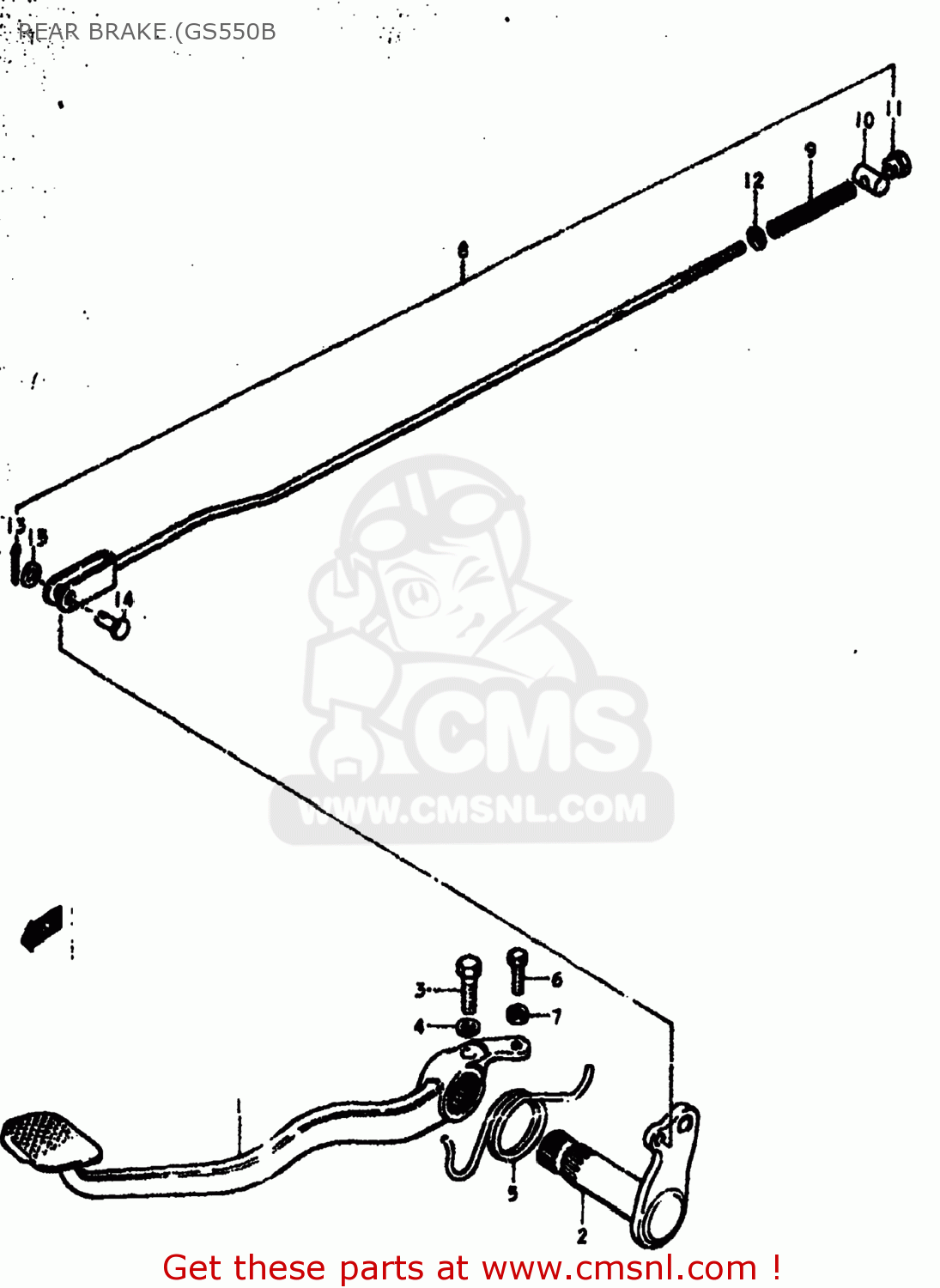

Rear brake (gs550b diagram GS550 1977 (B) USA (E03)

REAR BRAKE (GS550B GS550 1977 (B) USA (E03)

REAR BRAKE (GS550B GS550 1977 (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4311047000
ref: 1

PEDAL,BRAKE

€ 60.50

2

4312047000
ref: 2

ARM,BRAKE PEDAL

€ 41.50

3

0110708258
ref: 3
01500-08257

BOLT

€ 2.50

4

0832121088
ref: 4
08321-01087

LOCK WASHER

€ 2.00

5

0944837002
ref: 5
09448-37002-XC0

SPRING

€ 5.50

6

0110706208
ref: 6
01500-06207

BOLT

€ 2.00

7

0831011068
ref: 7
08310-00067

NUT

€ 2.50

8

4330047000
ref: 8

ROD ASSEMBLY,REAR BRAKE

€ 15.50

9

0944009004
ref: 9

SPRING

€ 2.00

10

0920913003
ref: 10
09209-13018

PIN

€ 3.50

11

0915006001
ref: 11
09150-06010

NUT

€ 3.50

12

0832221068
ref: 12
08322-01067

WASHER

€ 2.00

13

0411120208
ref: 13
04111-2020A

PIN 20X20

€ 1.50

14

0920006013
ref: 14

PIN(L:13.5)

€ 2.00

15

0832221068
ref: 15
08322-01067

WASHER

€ 2.00
