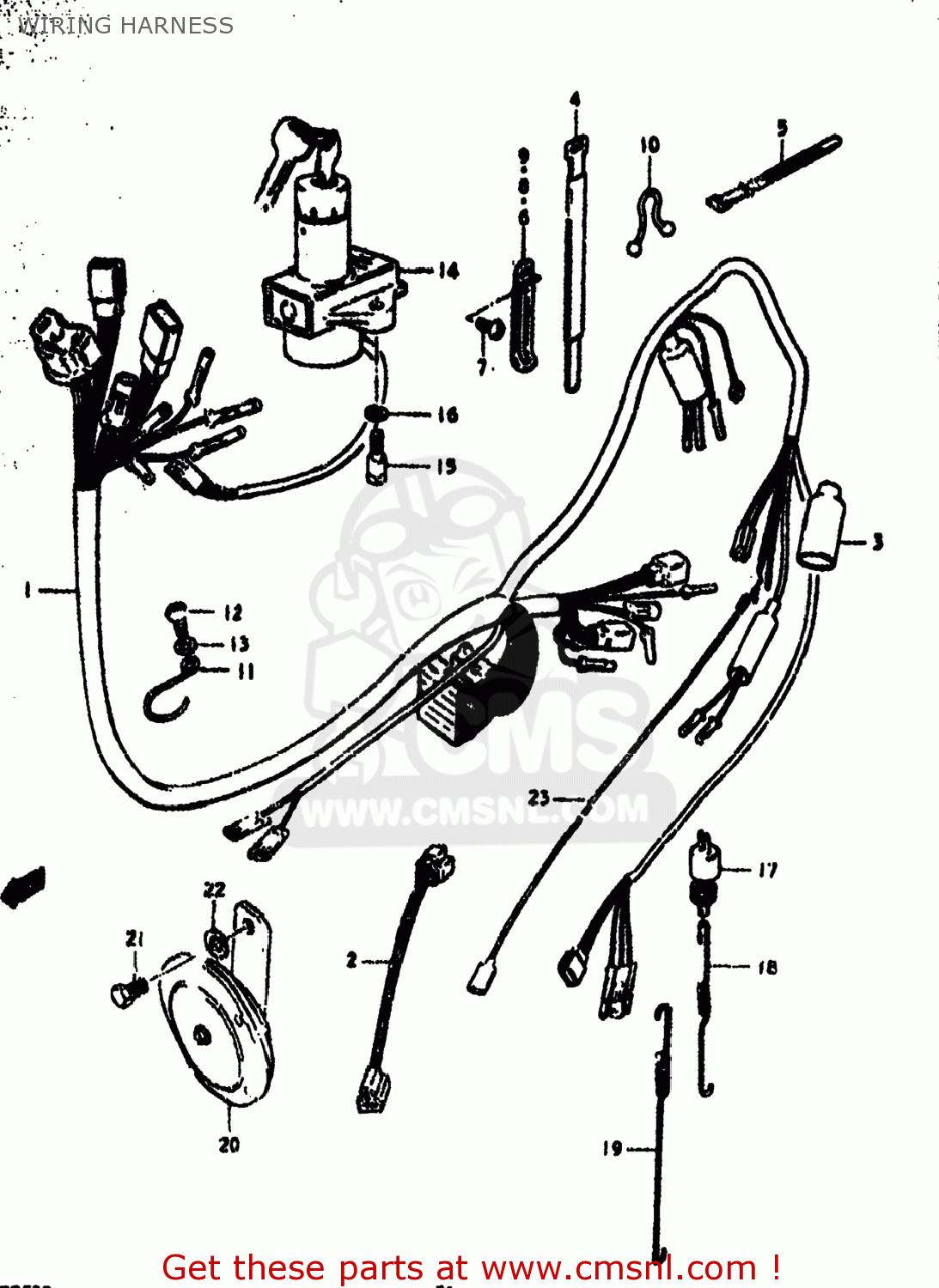

WIRING HARNESS

ref

part #

description

quantity

1-1

3661047000
ref: 1-1
36610-47001

HARNESS,WIRING

€ 148.00

1-2

3661047002
ref: 1-2
36610-47003

HARNESS,WIRING

€ 40.00

1-3

3661047010
ref: 1-3

HARNESS,WIRING

€ 138.00

2

3685247990
ref: 2

WIRE

€ 2.50

3

3661828000
ref: 3
36618-30000

COVER,WIRING HARNESS

€ 8.50

4

0940718301
ref: 4

CLAMP

€ 6.00

5

0940712402
ref: 5

CLAMP(L:120)

€ 3.00

6

0940406415
ref: 6
09404-06433

CLAMP

€ 3.00

7

0940406415
ref: 7
09404-06433

CLAMP

€ 3.00

8

0211206108
ref: 8
02112-06107

SCREW

€ 1.50

9

0940406414
ref: 9
09404-06433

CLAMP

€ 3.00

10

0940406402
ref: 10
09404-06432

CLAMP

€ 2.50

11

0940800011
ref: 11
09408-00020

CLAMP

€ 2.00

12

3661944000
ref: 12
36619-44002

GUIDE,WIRING HARNESS

€ 2.50

13

0211206128
ref: 13
02112-06127

SCREW 6X12

€ 2.00

14

3710047010
ref: 14
37100-45301

LOCK ASSEMBLY,STEERING

€ 127.50

15

3715247010
ref: 15
07130-0616B

BOLT

€ 3.00

16

3715247010
ref: 16
07130-0616B

BOLT

€ 3.00

17

0832121068
ref: 17
08321-01067

LOCK WASHER

€ 2.50

18

3761053011
ref: 18

SWITCH ASSY,BRAKE LAMP

€ 34.50

19

0944306018
ref: 19
09443-06018-XC0

SPRING

€ 4.50

20

0944306021
ref: 20
09443-06045-XC0

SPRING

€ 5.50

21

3850064130
ref: 21
38502-49001

HORN ASSY

€ 77.00

22

0110708128
ref: 22
01500-08127

BOLT 8X12

€ 2.50

23

0832211088
ref: 23
08322-01087

WASHER

€ 2.00

24

3685345000
ref: 24
36853-45001

WIRE

€ 9.50

all assemblies
