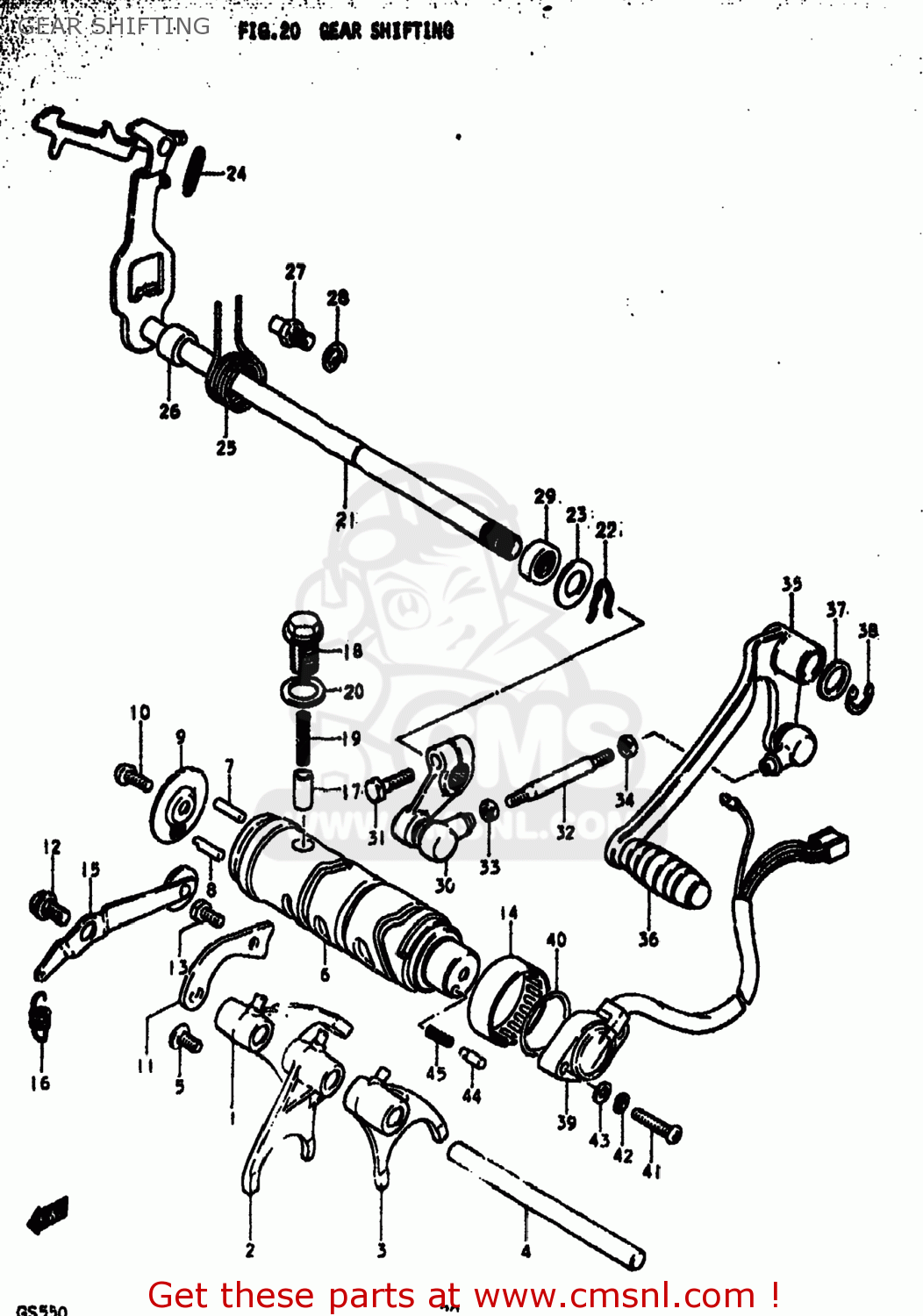

GEAR SHIFTING

ref

part #

description

quantity

1

2521144000
ref: 1
25211-44001

FORK,GEAR SHIFT NO.1

€ 70.00

2

2522144000
ref: 2
25221-44001

FORK,GEAR SHIFT NO.2

€ 74.50

3

2523144000
ref: 3

FORK,GEAR SHIFT NO.2

€ 74.50

4

2541131000
ref: 4
25411-18900

SHAFT,GEAR SHIFT FORK

€ 14.50

5

0214206108
ref: 5
02142-06107

SCREW

€ 2.00

6

2531147000
ref: 6
25311-47001

CAM,GEAR SHIFT

€ 68.50

7

0926104001
ref: 7

PIN(4X18.5)

€ 1.50

8

0920904013
ref: 8

PIN

€ 5.00

9

2532244000
ref: 9

RETAINER,GEAR SHIFT CAM DR PIN

€ 2.50

10

0211206168
ref: 10
02112-06167

SCREW

€ 2.50

11

2534144000
ref: 11
25341-33300

GUIDE,GEAR SHIFTING CABLE

€ 6.00

12

0911106019
ref: 12
09111-06054

BOLT

€ 1.50

13

0110706128
ref: 13
01500-06127

BOLT

€ 2.00

14

0926340001
ref: 14

BEARING(40X47X12)

€ 21.00

15

2535044000
ref: 15

STOPPER,GEAR SHIFT CAM NO.1

€ 10.50

16

0944309007
ref: 16

SPRING

€ 14.50

17

2535130010
ref: 17

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

18

2535430000
ref: 18

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

19

0944006014
ref: 19

SPRING

€ 1.50

20

0916814004
ref: 20

GASKET(14X19.2X2) (NAS)

€ 2.50

21

2551047000
ref: 21

SHAFT,GEAR SHIFT

€ 58.50

22

0938412001
ref: 22
08331-3112A

SPRING,RETAINER

€ 2.00

23

0916012020
ref: 23
09160-12089

WASHER (12.5X27X1.6)

€ 2.00

24

0944307013
ref: 24

SPRING

€ 2.50

25

0944426012
ref: 25
09444-26013

SPRING

€ 3.50

26

0918012068
ref: 26

SPACER(12X20X15.3)

€ 3.00

27

2567101000
ref: 27
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

28

0832121088
ref: 28
08321-01087

LOCK WASHER

€ 2.00

29

0928512002
ref: 29
09285-12006

OIL SEAL

€ 7.00

30

2552047000
ref: 30

ARM,GEAR SHIFT LINK

€ 53.50

31

0110706208
ref: 31
01500-06207

BOLT

€ 2.00

32

2552547000
ref: 32
25525-47020

ROD,GEAR SHIFT LINK

€ 9.00

33

0831011068
ref: 33
08310-00067

NUT

€ 2.50

34

0914006011
ref: 34

NUT

€ 1.50

35

2560047000
ref: 35

LEVER ASSEMBLY,GEAR SHIFTING

€ 55.50

36

2565216500
ref: 36

RUBBER,GEAR SHIFT PEDAL

€ 4.00

37

0916012011
ref: 37

WASHER(12.5X20X1)

€ 1.50

38

0833131128
ref: 38
08331-3112A

CIRCLIP

€ 2.00

39

3772045010
ref: 39
37720-45100

BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL

€ 92.50

40

0928026003
ref: 40
09280-26005

O-RING (D:2.4 ID:26.2)

€ 2.50

41

0211205208
ref: 41
02112-05207

SCREW 5X20

€ 3.00

42

0832121058
ref: 42
08321-0105A

LOCK WASHER

€ 2.00

43

0832221058
ref: 43
08322-01057

WASHER

€ 2.50

44

0920905011
ref: 44

PIN(5X15.5)

€ 2.00

45

0944004010
ref: 45

SPRING

€ 1.50

all assemblies
