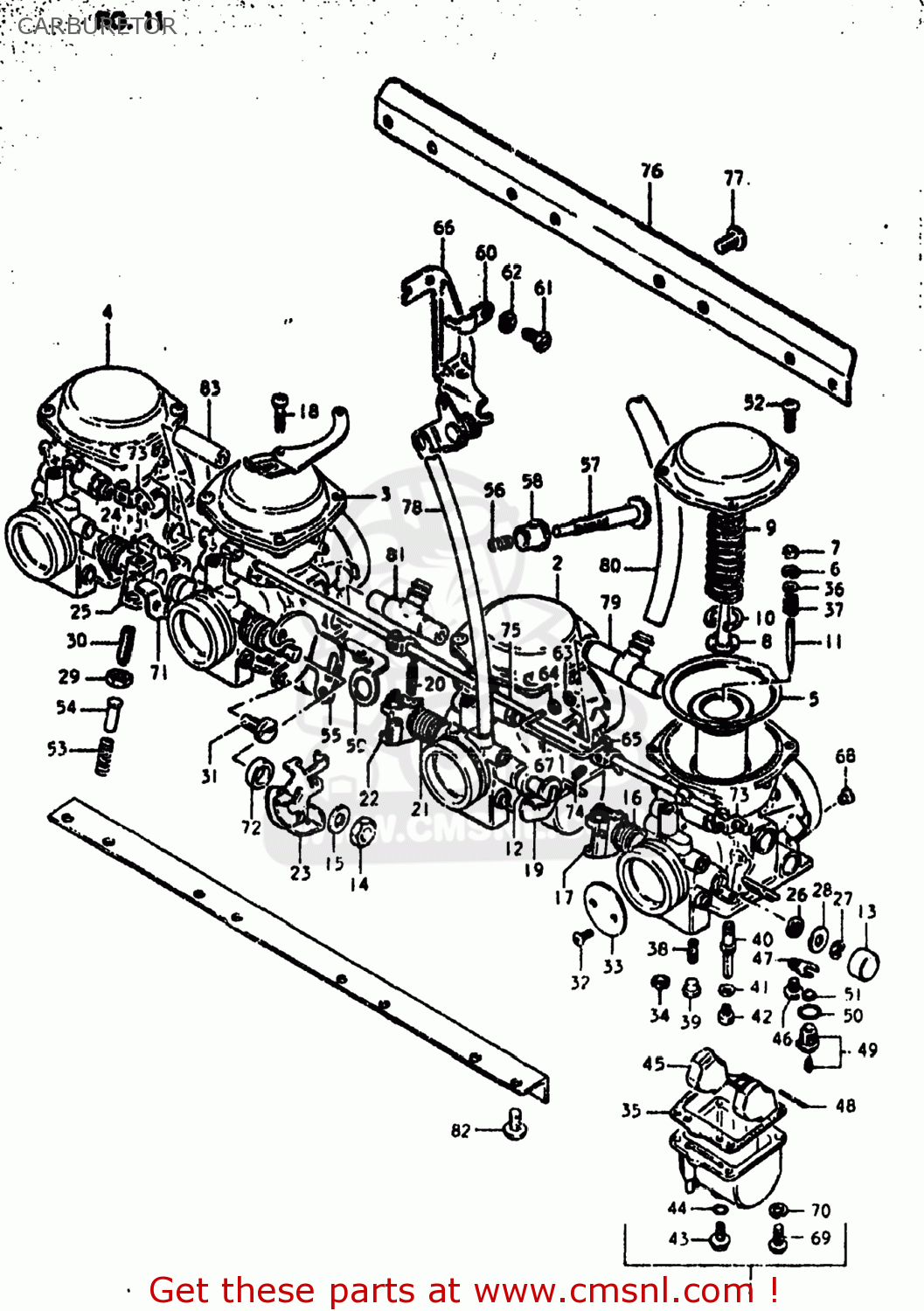

CARBURETOR

ref

part #

description

quantity

0

1320047070
ref: 0

CARBURETOR ASSEMBLY

€ 0.00

1

1320147070
ref: 1

CARBURETOR ASSEMBLY,NO.1 (A

€ 0.00

2

1320247070
ref: 2

CARBURETOR ASSEMBLY

€ 0.00

3

1320347070
ref: 3

CARBURETOR ASSEMBLY

€ 198.50

4

1320447070
ref: 4

CARBURETOR ASSEMBLY

€ 0.00

5

1350047070
ref: 5
13500-45110

DIAPHRAGM ASSEMBLY

€ 170.50

6

1339431210
ref: 6

CLIP,NEEDLE

€ 3.50

7

1338744030
ref: 7

RING

€ 5.00

8

1338944030
ref: 8

HOLDER,GUIDE

€ 10.50

9

1350347070
ref: 9

SPRING

€ 9.50

10

1358144030
ref: 10

E RING

€ 6.50

11

1338347070
ref: 11

NEEDLE JET

€ 0.00

12

1355795210
ref: 12

GASKET,THROTTLE SHAFT (NAS)

€ 2.50

13

1357847070
ref: 13

CAP

€ 5.50

14

0831012088
ref: 14
08310-00087

NUT

€ 2.00

15

1360547070
ref: 15

SCREW

€ 5.50

16

1357347070
ref: 16

SPRING,THROTTLE SHAFT

€ 6.00

17

1355047070
ref: 17

SHAFT,THROTTLE

€ 44.50

18

0211105158
ref: 18
02112-05167

SCREW

€ 2.50

19

1356347070
ref: 19

PIN,THROTTLE SHAFT

€ 0.00

20

1356347070
ref: 20

PIN,THROTTLE SHAFT

€ 0.00

21

1357345110
ref: 21

SPRING,THROTTLE SHAFT

€ 0.00

22

1355347070
ref: 22

LEVER,THROTTLE SHAFT

€ 0.00

23

1355547070
ref: 23

LEVER ASSEMBLY,THROTTLE

€ 0.00

24

1357347080
ref: 24

SPRING,THROTTLE SHAFT

€ 0.00

25

1355047090
ref: 25

SHAFT,THROTTLE

€ 0.00

26

1365151010
ref: 26

SEAL

€ 4.00

27

1361744080
ref: 27

E RING

€ 3.50

28

1355747070
ref: 28

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

29

1360747070
ref: 29

NUT

€ 4.00

30

1360547070
ref: 30

SCREW

€ 5.50

31

1360544100
ref: 31

SCREW,THROTTLE ADJUST B

€ 0.00

32

1360444080
ref: 32

SCREW

€ 3.50

33

1355147070
ref: 33

VALVE,THROTTLE

€ 0.00

34

1325844080
ref: 34

GASKET (NAS)

€ 4.00

35

1325144080
ref: 35
13251-44080-H17

GASKET,FLOAT CHAMBER (NAS)

€ 9.50

36

1338244030
ref: 36

WASHER

€ 3.50

37

1338844030
ref: 37

SPRING

€ 6.00

38

0949240007
ref: 38

JET,PILOT

€ 17.50

39

1335744080
ref: 39

PLUG,NEEDLE JET

€ 4.50

40

0949400264
ref: 40

JET,NEEDLE

€ 18.50

41

1333244080
ref: 41
13382-03110

WASHER,NEEDLE NOZZLE

€ 2.50

42

0949192004
ref: 42

JET,MAIN(92.5)

€ 8.50

43

1324744080
ref: 43

PLUG,DRAIN

€ 9.50

44

1324644080
ref: 44

GASKET (NAS)

€ 3.50

45

1325044080
ref: 45

FLOAT

€ 31.00

46

0211104067
ref: 46
02112-0406B

SCREW

€ 2.00

47

1337339110
ref: 47

PLATE

€ 6.50

48

1325492311
ref: 48

PIN,FLOAT

€ 2.00

49

1337044080
ref: 49
13370-44500

VALVE ASSEMBLY,NEEDLE

€ 40.50

50

1337444080
ref: 50
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

51

1337644080
ref: 51
13376-19F00

FILTER

€ 6.50

52

0211205128
ref: 52
02112-05127

SCREW

€ 2.50

53

1326844010
ref: 53

SPRING,THROTTLE SCREW

€ 3.00

54

1357547070
ref: 54

PIN,THROTTLE LEVER

€ 2.50

55

1362747070
ref: 55

BRACKET,THROTTLE ADJUST

€ 4.00

56

1327193011
ref: 56

SPRING

€ 4.50

57

1326747070
ref: 57

SCREW

€ 21.00

58

1327631210
ref: 58

BUSH

€ 4.00

59

1362744090
ref: 59

BRACKET,THROTTLE ADJUST

€ 0.00

60

1342147070
ref: 60

BRACKET,STARTER

€ 9.00

61

0110405108
ref: 61
01500-0510B

BOLT

€ 1.50

62

0832121058
ref: 62
08321-0105A

LOCK WASHER

€ 2.00

63

1341547070
ref: 63
13394-10010

CAP,LEVER

€ 4.50

64

1352398010
ref: 64

SEAT,SPRING

€ 5.00

65

1342247070
ref: 65

LEVER ASSY

€ 11.50

66

1362447070
ref: 66

BRACKET

€ 0.00

67

1342547070
ref: 67

ROD,STARTER LEVER

€ 9.50

68

0949330003
ref: 68

JET,AIR(150)

€ 13.00

69

0211205168
ref: 69
02112-05167

SCREW

€ 2.50

70

0832121058
ref: 70
08321-0105A

LOCK WASHER

€ 2.00

71

1355047100
ref: 71

SHAFT,THROTTLE

€ 0.00

72

1358947070
ref: 72

WASHER

€ 3.00

73

1342244080
ref: 73

LEVER

€ 10.00

74

1360547070
ref: 74

SCREW

€ 5.50

75

1341047070
ref: 75

SHAFT,STARTER

€ 29.00

76

1362847070
ref: 76

BRACKET

€ 0.00

77

0211205088
ref: 77
02112-05087

SCREW

€ 2.00

78

1368331610
ref: 78
09355-45855-600

HOSE

€ 14.00

79

1368547070
ref: 79

NIPPLE

€ 25.00

80

1368347070
ref: 80
09352-60103-600

HOSE

€ 18.00

81

1368547080
ref: 81

NIPPLE,CARBURETOR

€ 25.50

82

0211206128
ref: 82
02112-06127

SCREW 6X12

€ 2.00

83

1368547090
ref: 83

NIPPLE

€ 16.50

all assemblies
