FRONT CALIPERS
GS550 1980 (T) USA (E03)

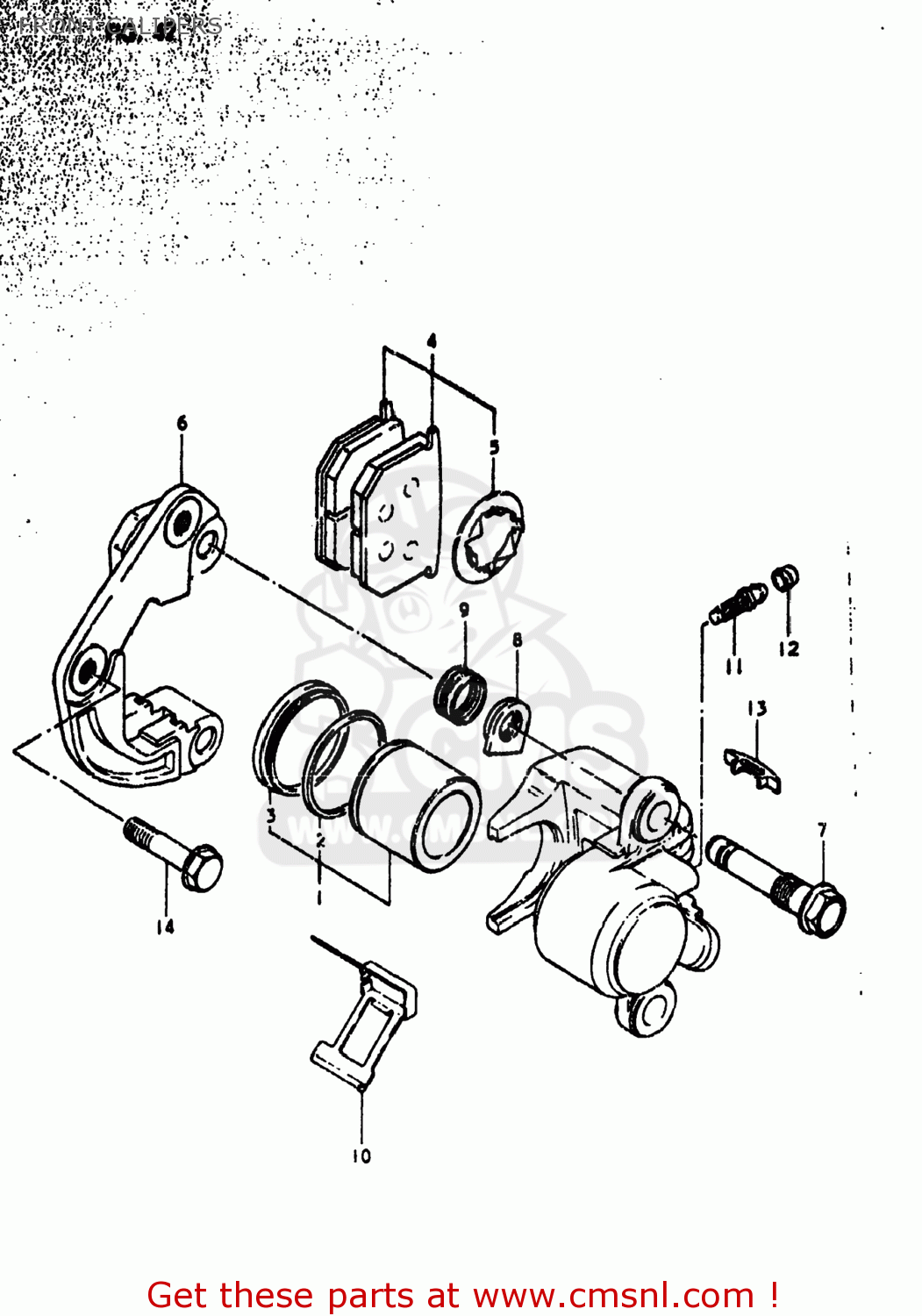

Front calipers diagram GS550 1980 (T) USA (E03)
FRONT CALIPERS GS550 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5930049050
ref: 0
59300-49053
CALIPERS ASSY, LH
€ 142.00
1
5930049830
ref: 1
PISTON SET
€ 35.00
2
5930745020
ref: 2
SEAL,PISTON
€ 8.50
3
5930849050
ref: 3
BOOT,PISTON
€ 7.50
4
5930049820
ref: 4
59300-49850
PAD & SHIM SET (MCA)
€ 91.00
5
5937149000
ref: 5
SHIM,PAD
€ 7.00
6
5935149000
ref: 6
59350-49001
BRACKET
€ 83.50
7
5930549000
ref: 7
59305-49001
AXLE,CALIPER
€ 42.00
8
5931749000
ref: 8
NUT,CALIPER AXLE
€ 14.00
9
5931249000
ref: 9
BOOT
€ 30.00
10
5931549000
ref: 10
SPRING
€ 9.50
11
5912147050
ref: 11
59121-34020
BREATHER
€ 11.50
12
5247460020
ref: 12
55156-66310
CAP,BLEEDER PL
€ 6.00
13
5932449000
ref: 13
COVER,INDICATOR
€ 12.50
14
0910310019
ref: 14
BOLT(10X37)
€ 2.50
