REAR COMBINATION LAMP

GS550 1980 (T) USA (E03)

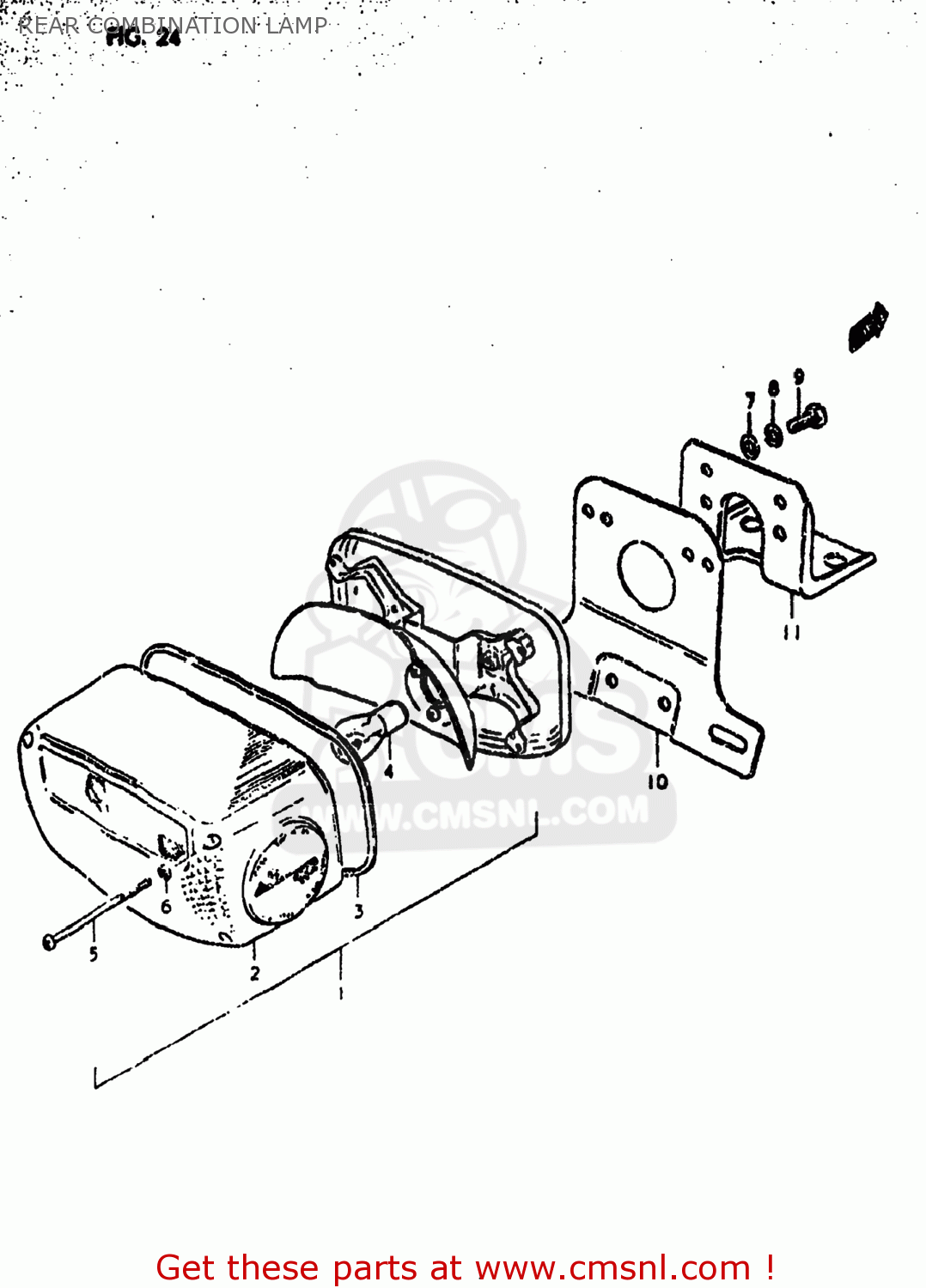

Rear combination lamp diagram GS550 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

3571045011
ref: 1

LAMP ASSEMBLY,REAR COMBINATION

€ 192.00

3571245012
ref: 2
35712-45013

LENS,REAR COMBINATION LAMP

€ 63.00

3571345010
ref: 3

GASKET (NAS)

€ 9.00

0947112035
ref: 4

BULB(12V23W)

€ 5.50

0912504002
ref: 5
02112-04558

SCREW (4X55)

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0832221068
ref: 7
08322-01067

WASHER

€ 2.00

0832121068
ref: 8
08321-01067

LOCK WASHER

€ 2.50

0110706128
ref: 9
01500-06127

BOLT

€ 2.00

3592745003
ref: 10

BRACKET,LICENSE PLATE

€ 17.00

3592845001
ref: 11

BRACKET,LICENSE PLATE

€ 8.50
