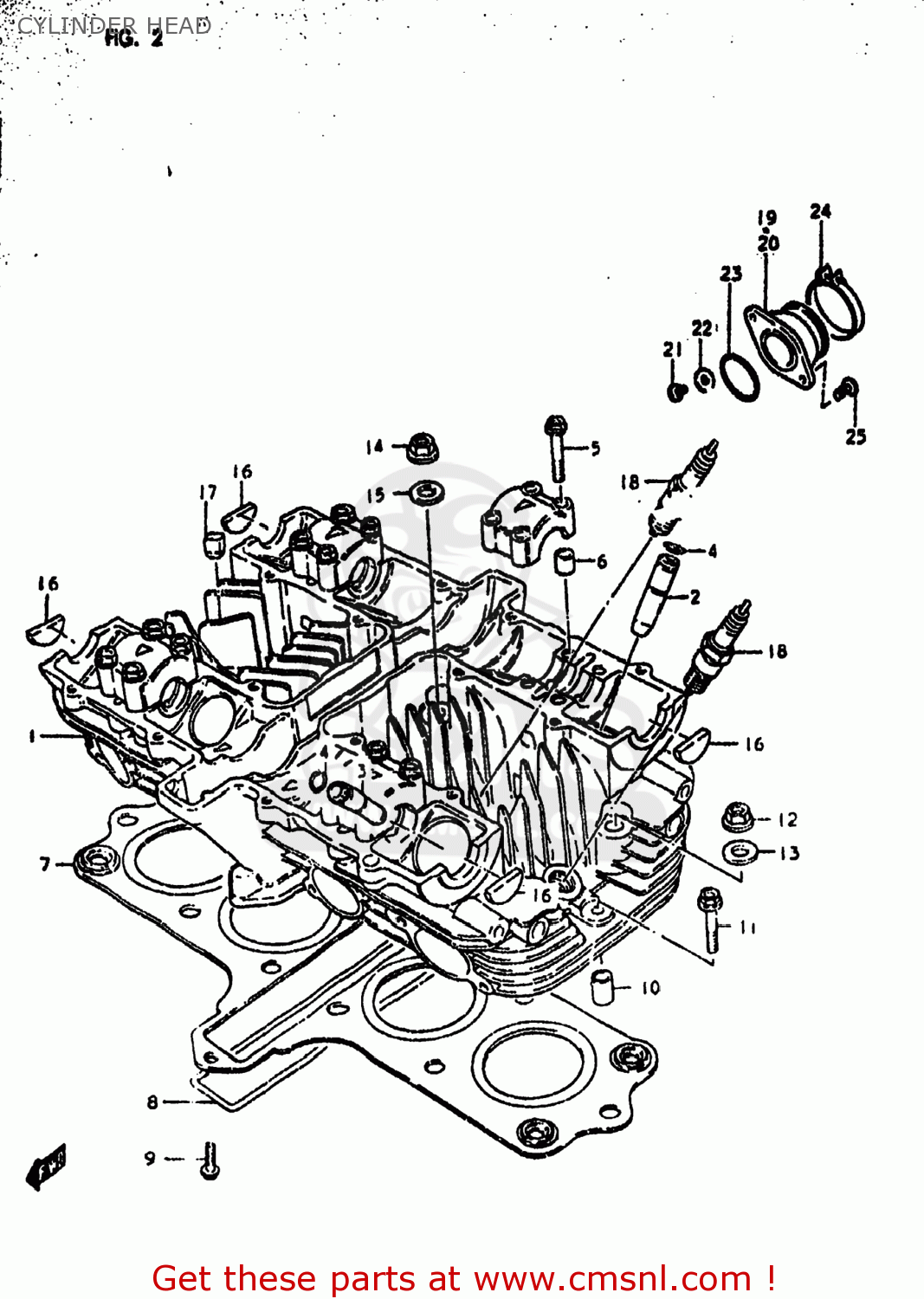

CYLINDER HEAD

ref

part #

description

quantity

1

1110047870
ref: 1
11100-47890

HEAD ASSEMBLY,CYLINDER

€ 458.00

2

1111547730
ref: 2
11115-47740

GUIDE,VALVE

€ 18.50

3

1111647730
ref: 3
11116-47740

GUIDE,VALVE

€ 17.50

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114147084
ref: 7
11141-47086-H17

GASKET,CYLINDER HEAD (MCA)

€ 118.00

8

0928099003
ref: 8

O RING(D:3,ID:26X157)

€ 34.00

9

0151706308
ref: 9
01550-06307

BOLT

€ 2.00

10

0421111189
ref: 10

PIN

€ 2.00

11

0151706458
ref: 11
01550-06457

BOLT,UNDER

€ 2.50

12

0915908029
ref: 12

NUT

€ 6.00

13

0916808009
ref: 13
09168-08013

GASKET (NAS)

€ 4.50

14

0915908031
ref: 14
09159-08034

NUT

€ 2.00

15

0916008039
ref: 15

WASHER(8.5X19X2.3)

€ 2.00

16

0924123002
ref: 16

PLUG

€ 8.50

17

1115245000
ref: 17
11152-38A00

PAD

€ 3.50

18-1

0948200225
ref: 18-1
09482-00091

SPARK PLUG

€ 3.00

18-2

0948200196
ref: 18-2
09482-00247-111

SPARK PLUG W24ES-U

€ 3.50

19

1311047010
ref: 19

PIPE,INTAKE,R

€ 40.00

20

1312047010
ref: 20

PIPE,INTAKE,L

€ 38.00

21

0910605006
ref: 21
07130-0510B

BOLT

€ 2.00

22

0832221058
ref: 22
08322-01057

WASHER

€ 2.50

23

0928038003
ref: 23
09280-38004

O-RING

€ 4.50

24

0940250306
ref: 24

CLAMP

€ 6.00

25

0211206168
ref: 25
02112-06167

SCREW

€ 2.50

all assemblies
