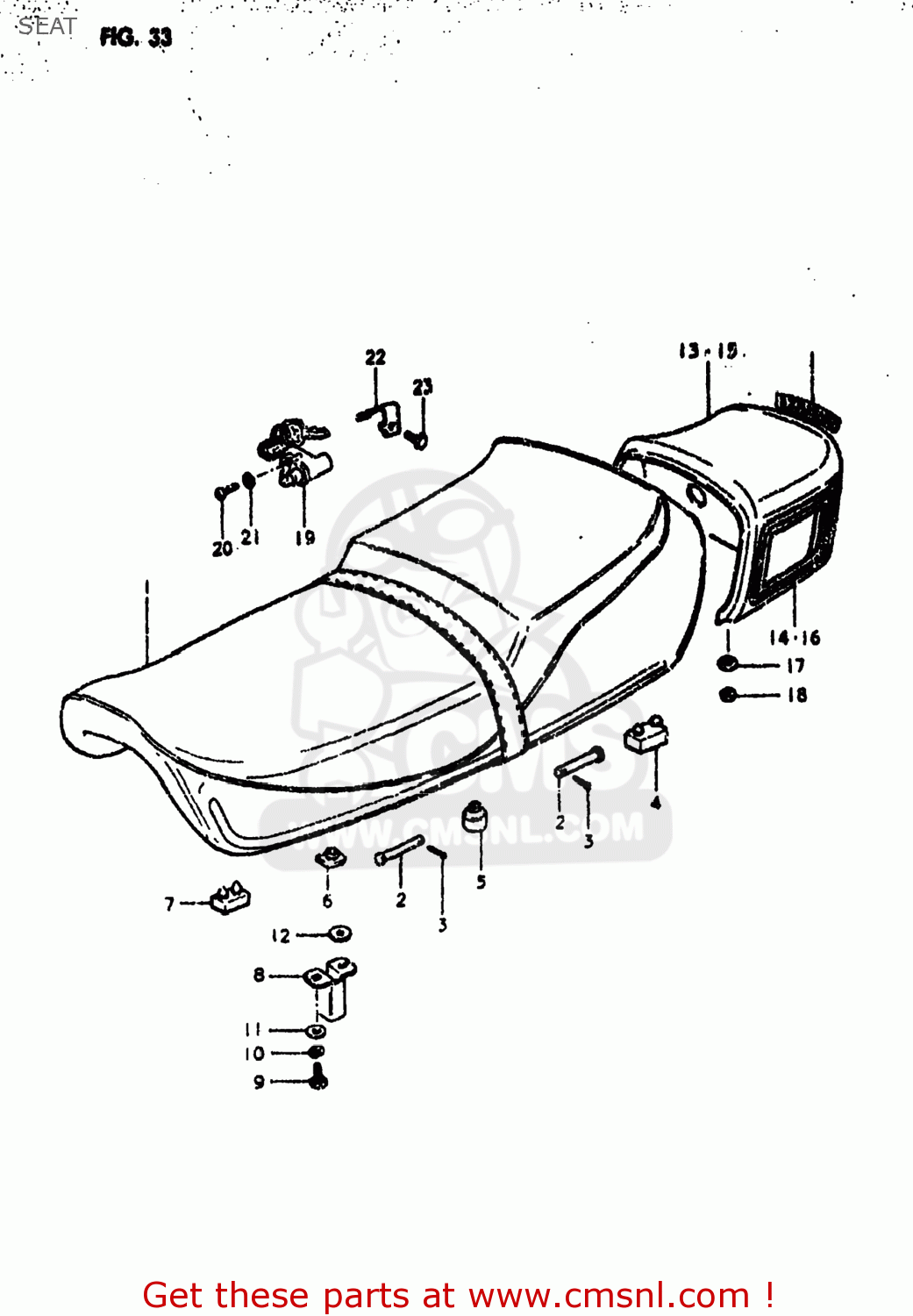

SEAT

ref

part #

description

quantity

1

451004701140P
ref: 1

SEAT ASSEMBLY

€ 381.50

2

0920006018
ref: 2

PIN

€ 2.00

3

0411120158
ref: 3
04111-2015A

PIN

€ 1.50

4

0932108006
ref: 4

CUSHION

€ 3.00

5

0932110002
ref: 5

CUSHION(11.5X22X20)

€ 2.00

6

0932910001
ref: 6

CUSHION

€ 2.50

7

0932108010
ref: 7

CUSHION

€ 4.00

8

4521347000
ref: 8

STRIKER,SEAT LOCK

€ 7.00

9

0110706128
ref: 9
01500-06127

BOLT

€ 2.00

10

0832121068
ref: 10
08321-01067

LOCK WASHER

€ 2.50

11

0832211068
ref: 11
08322-0106B

WASHER 6MM

€ 2.00

12

0916008043
ref: 12

WASHER(8.5X18X1)

€ 1.50

13

4551045001019
ref: 13
45510-45001

COVER,SEAT TAIL

€ 113.00

14

681604706072B
ref: 14

TAPE SET,SEAT TAIL COVER

€ 20.50

15

455104500100J
ref: 15
45510-45001

COVER,SEAT TAIL

€ 113.00

16

681604706072C
ref: 16

TAPE SET,SEAT TAIL COVER

€ 22.50

17

0916906016
ref: 17

WASHER

€ 1.50

18

0831921068
ref: 18
08319-2106A

NUT 6MM

€ 2.00

19

9570045813
ref: 19

LOCK ASSY,SEAT

€ 59.50

20

0211205128
ref: 20
02112-05127

SCREW

€ 2.50

21

0832121058
ref: 21
08321-0105A

LOCK WASHER

€ 2.00

22

9572245000
ref: 22

SPRING,HELMET HOLDER

€ 8.50

23

0110405088
ref: 23
01500-05087

BOLT 5X16

€ 2.00
