BRAKE HOSE

GS550E 1977 (B) USA (E03)

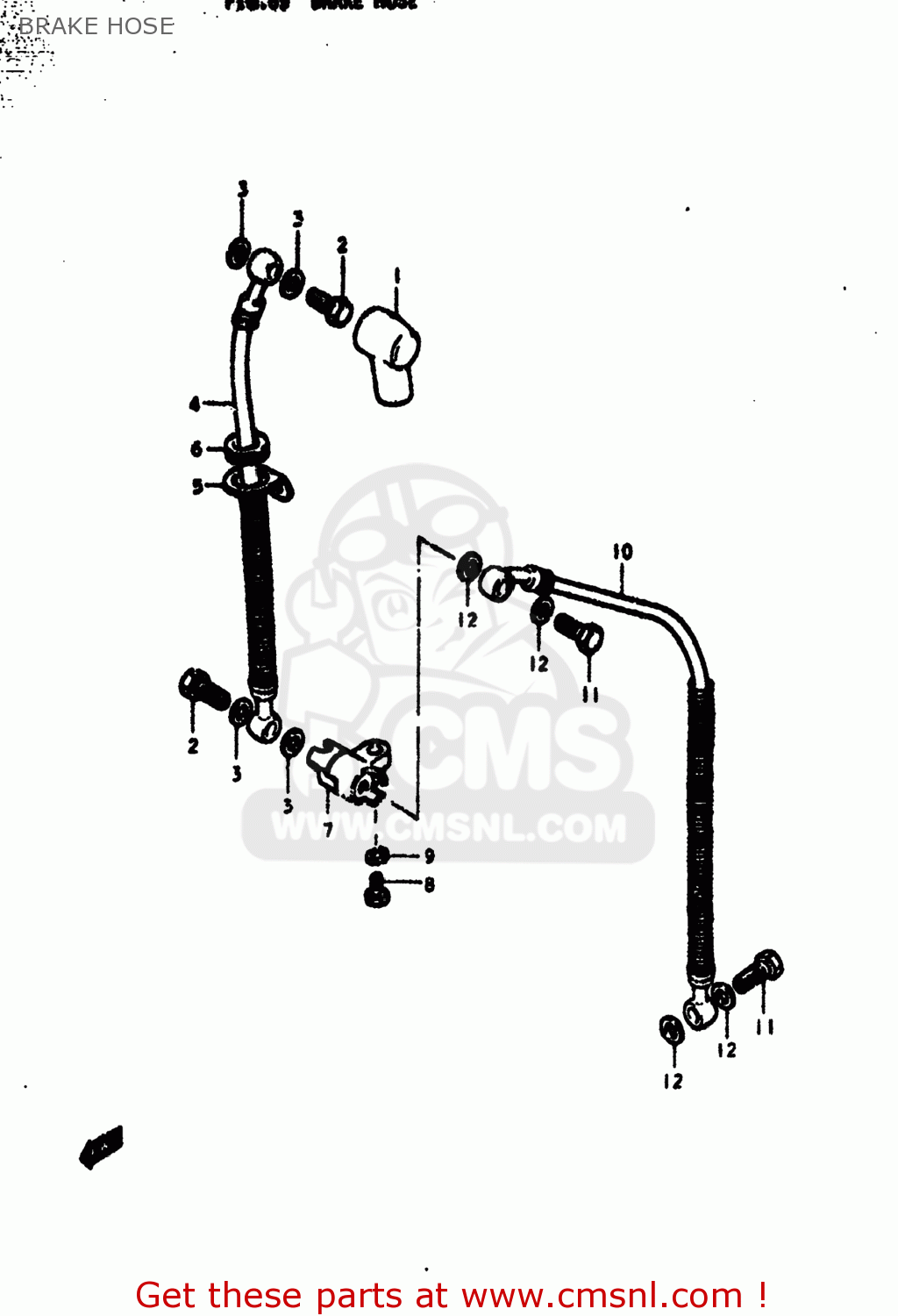

Brake hose diagram GS550E 1977 (B) USA (E03)

BRAKE HOSE GS550E 1977 (B) USA (E03)

BRAKE HOSE GS550E 1977 (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5971118400
ref: 1
59711-49001

BOOT,MASTER CYLINDER

€ 8.50

2

0936010003
ref: 2
09360-10017

BOLT UNION

€ 6.50

3

0916110005
ref: 3
09161-10009

WASHER

€ 2.00

4-1

5948037013
ref: 4-1

HOSE,BRAKE NO.1

€ 52.00

4-2

5948044000
ref: 4-2
59480-37013

HOSE,FRONT BRAKE

€ 52.00

5

5924331000
ref: 5

GUIDE,BRAKE HOSE

€ 11.50

6

0930814007
ref: 6

GROMMET

€ 4.00

7

5949145000
ref: 7
59491-45001

JOINT,BRAKE HOSE

€ 29.00

8

0110706208
ref: 8
01500-06207

BOLT

€ 2.00

9

0832121068
ref: 9
08321-01067

LOCK WASHER

€ 2.50

10

5924044000
ref: 10
59240-44001

HOSE,FRONT BRAKE

€ 64.50

11

0936010003
ref: 11
09360-10017

BOLT UNION

€ 6.50

12

0916110005
ref: 12
09161-10009

WASHER

€ 2.00
