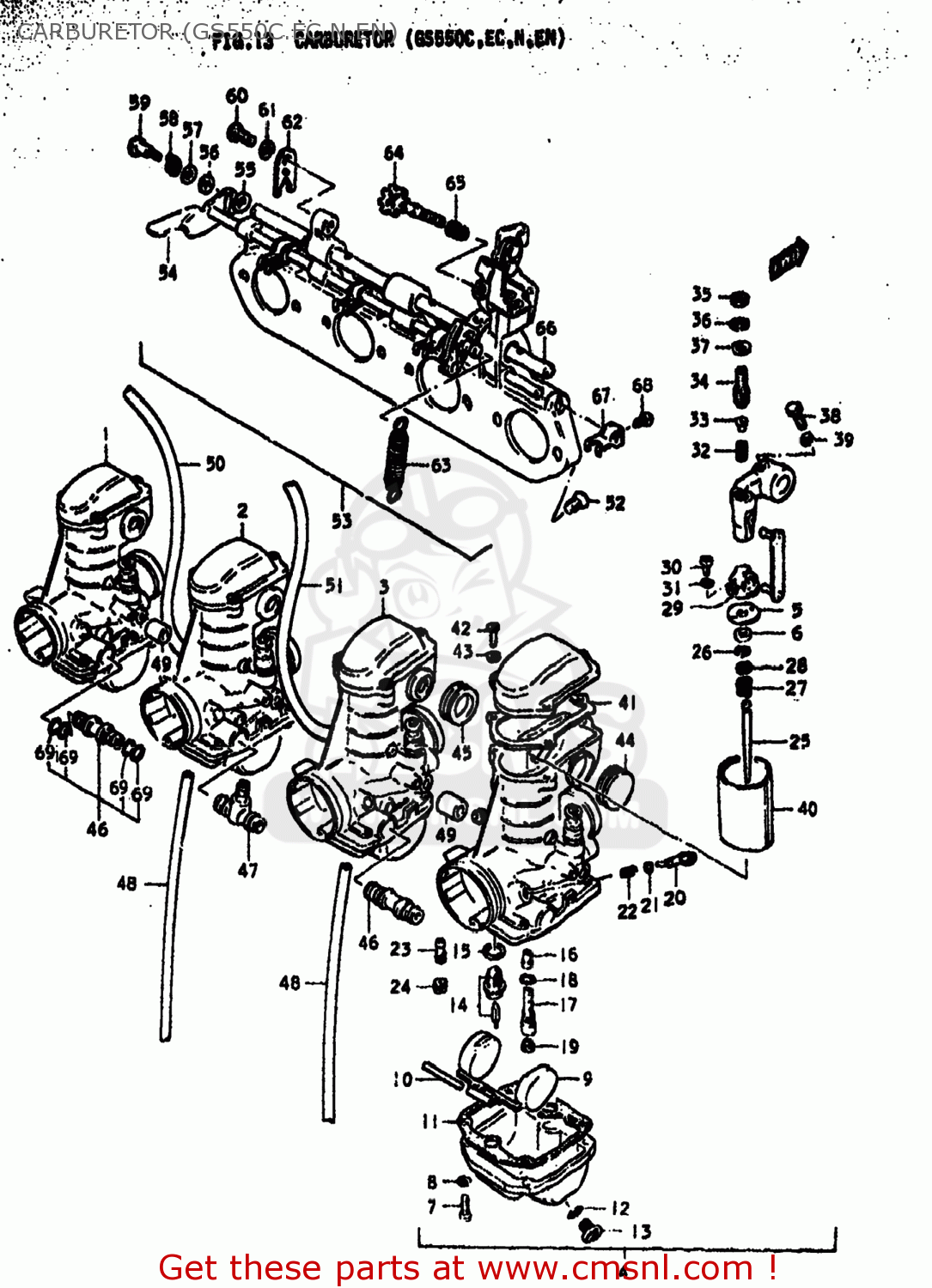

CARBURETOR (GS550C.EC.N.EN)

ref

part #

description

quantity

0

1320047030
ref: 0

CARBURETOR ASSEMBLY

€ 355.00

0

1320047030
ref: 0

CARBURETOR ASSEMBLY

€ 355.00

1

1320147030
ref: 1

CARBURETOR ASSEMBLY

€ 70.50

2

1320247030
ref: 2

CARBURETOR ASSEMBLY

€ 94.50

3

1320347030
ref: 3

CARBURETOR ASSEMBLY

€ 66.50

4

1320447030
ref: 4

CARBURETOR ASSEMBLY

€ 90.50

5

1358147010
ref: 5

PLATE,THROTTLE VALVE

€ 5.50

6

1338747010
ref: 6

RING

€ 7.50

7

0211204168
ref: 7
02112-0416A

SCREW

€ 1.00

8

0832121048
ref: 8
08321-0104A

LOCK WASHER

€ 2.00

9

1325243010
ref: 9

FLOAT

€ 41.00

10

1325401010
ref: 10

PIN,FLOAT

€ 3.00

11

1325147010
ref: 11
13251-43010

GASKET,FLOAT CHAMBER (NAS)

€ 9.50

12

1324643010
ref: 12

O RING

€ 4.00

13

1324745010
ref: 13

SCREW

€ 7.50

14

1337045010
ref: 14
13370-18111

VALVE ASSEMBLY,NEEDLE

€ 51.50

15

1339258600
ref: 15

GASKET,VALVE SEAT (NAS)

€ 2.00

16

0949400206
ref: 16
09494-00208

JET,NEEDLE

€ 12.50

17

1338547030
ref: 17

PIPE,BLEEDER

€ 25.00

18

1324643010
ref: 18

O RING

€ 4.00

19

0949180008
ref: 19

JET,MAIN

€ 9.00

20

1326932400
ref: 20

SCREW,PILOT AIR

€ 11.50

21

1329533010
ref: 21

O RING

€ 4.50

22

1326801010
ref: 22

SPRING

€ 3.50

23

0949215007
ref: 23

JET,PILOT(15)

€ 8.50

24

0949350003
ref: 24

JET,AIR(50)

€ 13.50

25

1338347030
ref: 25

NEEDLE JET

€ 6.00

26

1339410010
ref: 26

CLIP

€ 4.50

27

1338847010
ref: 27

SPRING

€ 7.00

28

1338247010
ref: 28

WASHER,JET NEEDLE

€ 3.00

29

1339847010
ref: 29

CONNECTOR

€ 10.00

30

0211103148
ref: 30
02112-0316B

SCREW

€ 1.50

31

0832121038
ref: 31
09162-03001

LOCK WASHER

€ 1.50

32

1354345010
ref: 32

SPRING

€ 2.50

33

1354443010
ref: 33

PIN,CARBURETOR

€ 2.50

34

1354845010
ref: 34

SCREW

€ 10.00

35

0831011058
ref: 35
08310-00057

NUT

€ 2.50

36

0832121058
ref: 36
08321-0105A

LOCK WASHER

€ 2.00

37

0832221058
ref: 37
08322-01057

WASHER

€ 2.50

38

0110405168
ref: 38
01500-0516B

BOLT

€ 1.50

39

0832121058
ref: 39
08321-0105A

LOCK WASHER

€ 2.00

40

1355147030
ref: 40

VALVE,THROTTLE

€ 16.00

41

1326643010
ref: 41

GASKET (NAS)

€ 7.00

42

0211204168
ref: 42
02112-0416A

SCREW

€ 1.00

43

0832121048
ref: 43
08321-0104A

LOCK WASHER

€ 2.00

44

1367843010
ref: 44

PIPE,DELIVERY

€ 4.50

45

1355645010
ref: 45

SEAL

€ 15.50

46

1368547030
ref: 46

NIPPLE

€ 19.50

47

1368547040
ref: 47

NIPPLE

€ 34.50

48

1368347020
ref: 48
13683-45070

HOSE

€ 10.00

49

1368347010
ref: 49
09356-58127-600

HOSE

€ 21.00

50

1368347050
ref: 50

HOSE

€ 14.00

51

1368345050
ref: 51
09355-45855-600

HOSE 4.5X8X390

€ 14.00

52

0212206128
ref: 52
02122-06127

SCREW

€ 3.00

53

1321047020
ref: 53

CARBURETOR ASSEMBLY

€ 223.50

54

1341047010
ref: 54

SHAFT,STARTER

€ 22.50

55

1361545010
ref: 55

WASHER,STARTER SHAFT

€ 3.50

56

1343233110
ref: 56

WASHER

€ 5.00

57

1361543010
ref: 57

WASHER,STARTER SHAFT

€ 2.50

58

1342643010
ref: 58

SPRING

€ 4.50

59

1343333110
ref: 59

SCREW,STARTER LEVER

€ 5.50

60

0211105158
ref: 60
02112-05167

SCREW

€ 2.50

61

0832121058
ref: 61
08321-0105A

LOCK WASHER

€ 2.00

62

1355733110
ref: 62

GASKET

€ 3.50

63

1357347010
ref: 63

SPRING,THROTTLE VALVE

€ 8.00

64

1326745010
ref: 64
13267-47030

ADJUSTER

€ 10.00

65

1326833110
ref: 65

SPRING,THROTTLE SCREW

€ 4.00

66

1355047010
ref: 66

SHAFT ASSEMBLY

€ 43.50

67

1342243010
ref: 67

LEVER, STARTER

€ 5.50

68

1360531210
ref: 68

SCREW

€ 3.00

69

1367943010
ref: 69
13374-73000

O-RING

€ 7.00

69

1367943010
ref: 69
13374-73000

O-RING

€ 7.00
