GENERATOR

GS550E 1977 (B) USA (E03)

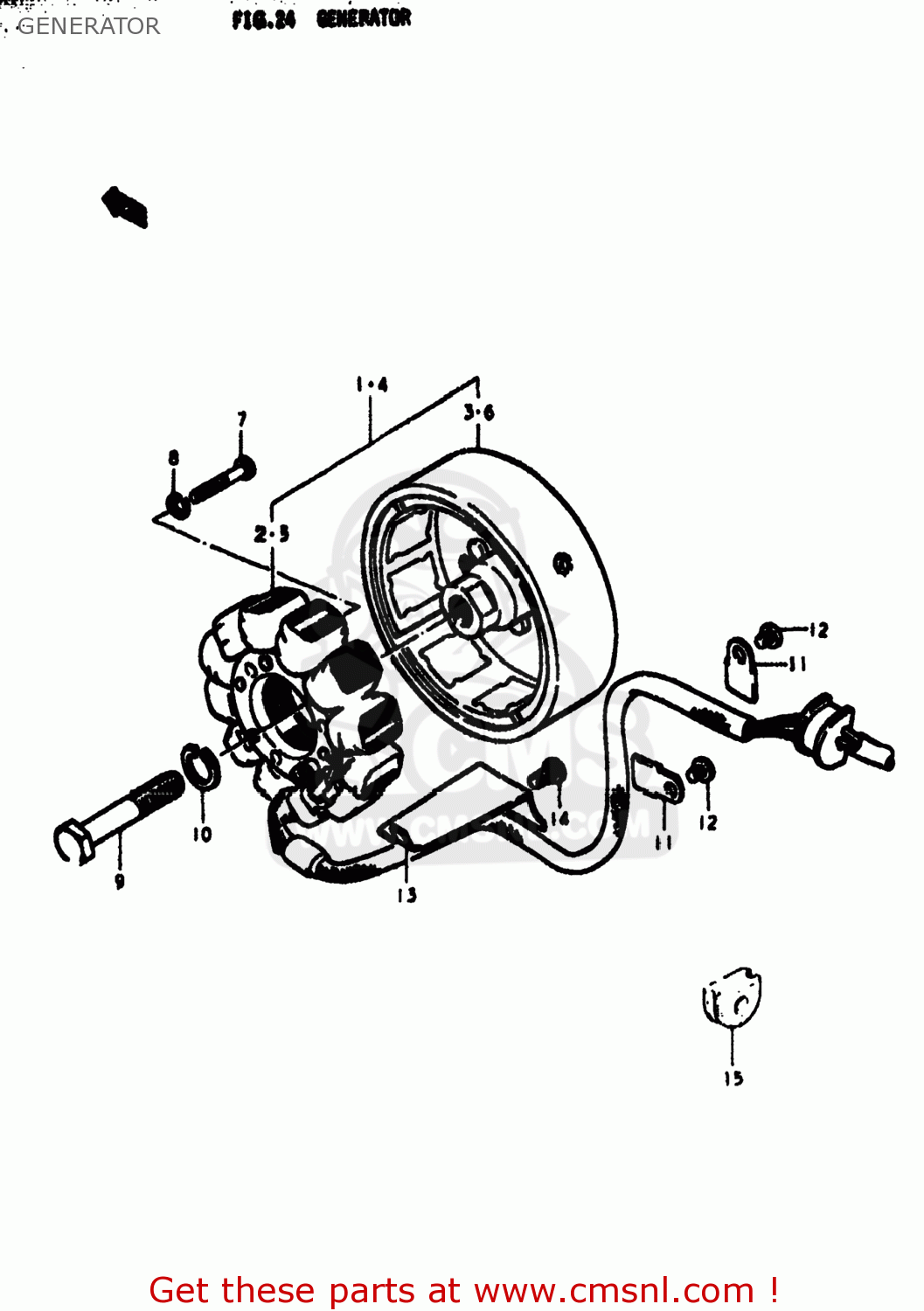

Generator diagram GS550E 1977 (B) USA (E03)

GENERATOR GS550E 1977 (B) USA (E03)

GENERATOR GS550E 1977 (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140045010
ref: 1
31401-45011

GENERATOR ASSEMBLY

€ 712.50

2

3140145010
ref: 2
31401-45011

STATOR ASSEMBLY

€ 372.50

3

3140245010
ref: 3
31402-45011

ROTOR ASSEMBLY

€ 348.50

4

3140045020
ref: 4
31401-45030

GENERATOR ASSEMBLY

€ 719.50

5

3140145020
ref: 5
31401-45030

STATOR ASSEMBLY

€ 334.50

6

3140245020
ref: 6
31402-45030

ROTOR ASSEMBLY

€ 385.00

7

0211205308
ref: 7
02112-0530A

SCREW

€ 1.50

8

0832121058
ref: 8
08321-0105A

LOCK WASHER

€ 2.00

9

0110712458
ref: 9
01500-12457

BOLT 12X45

€ 5.50

10

0832121128
ref: 10
08321-01127

WASHER,LOCK 12

€ 2.50

11

3149745000
ref: 11

CLAMP,GENERATOR LEAD WIRE

€ 1.50

12

0211205068
ref: 12
09125-05122

SCREW

€ 4.00

13

3149845000
ref: 13

CLAMP,GENERATOR LEAD WIRE

€ 2.00

14

0211206108
ref: 14
02112-06107

SCREW

€ 1.50

15

3148247000
ref: 15

GROMMET,STARTER CABLE

€ 2.00

all assemblies
