FUEL TANK (GS550B
GS550E 1977 (B) USA (E03)

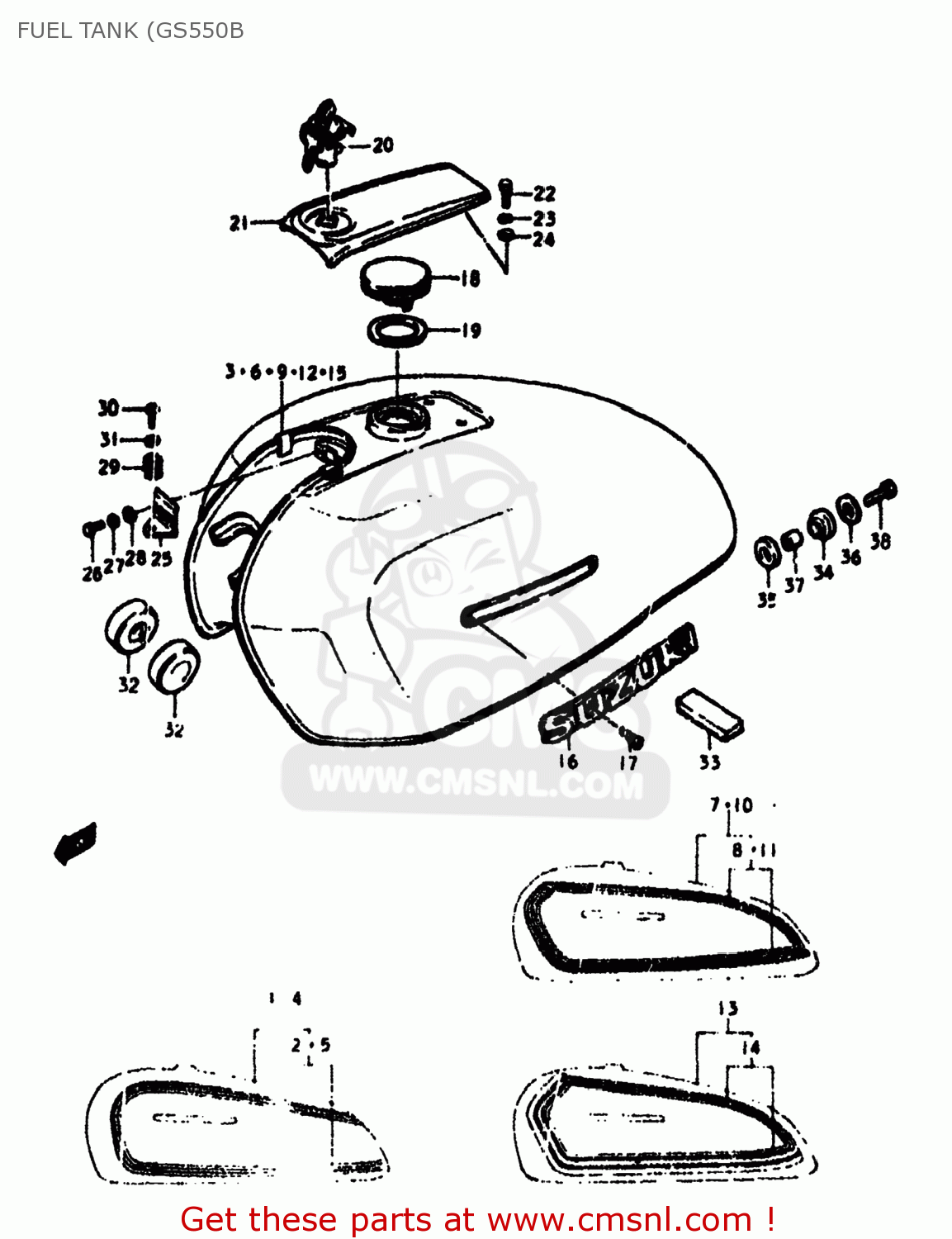

Fuel tank (gs550b diagram GS550E 1977 (B) USA (E03)
FUEL TANK (GS550B GS550E 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4411047000019
ref: 1
44110-47030-13L
TANK ASSEMBLY,FUEL
€ 681.50
1
4411047000019
ref: 1
44110-47030-13L
TANK ASSEMBLY,FUEL
€ 681.50
2
681004781061U
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 22.50
3
4427637001
ref: 3
CUSHION,FUEL TANK FR COVER
€ 4.00
4
441104700000X
ref: 4
44110-47030-13L
TANK ASSEMBLY,FUEL
€ 681.50
4
441104700000X
ref: 4
44110-47030-13L
TANK ASSEMBLY,FUEL
€ 681.50
5
681004781061P
ref: 5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6
4427637001
ref: 6
CUSHION,FUEL TANK FR COVER
€ 4.00
7
441104701005T
ref: 7
44110-47030-13L
TANK ASSEMBLY,FUEL
€ 681.50
7
441104701005T
ref: 7
44110-47030-13L
TANK ASSEMBLY,FUEL
€ 681.50
8
681004782063P
ref: 8
68100-47820-63D
TAPE SET.FUEL T
€ 38.50
9
4427637001
ref: 9
CUSHION,FUEL TANK FR COVER
€ 4.00
10
441104701005U
ref: 10
44110-47030-13L
TANK ASSEMBLY,FUEL
€ 681.50
10
441104701005U
ref: 10
44110-47030-13L
TANK ASSEMBLY,FUEL
€ 681.50
11
681004782063D
ref: 11
TAPE SET.FUEL T
€ 38.50
12
4427637001
ref: 12
CUSHION,FUEL TANK FR COVER
€ 4.00
13
4411047020019
ref: 13
44110-47030-13L
TANK ASSEMBLY,FUEL
€ 681.50
14
681004783063D
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 37.50
15
4427637001
ref: 15
CUSHION,FUEL TANK FR COVER
€ 4.00
16-1
6811145000
ref: 16-1
EMBLEM,FUEL TANK
€ 22.00
16-2
6811145010
ref: 16-2
EMBLEM,FUEL TANK
€ 26.00
17
0912703002
ref: 17
02122-0306B
SCREW
€ 2.00
18
4421023300
ref: 18
44200-23810
CAP,FUEL TANK
€ 60.50
19
8541370000
ref: 19
GASKET (NAS)
€ 4.50
20
4428037010
ref: 20
LOCK,FUEL TANK FR COVER
€ 36.50
21
4427047000
ref: 21
44270-47001
COVER,FUEL TANK
€ 25.00
22
0110405108
ref: 22
01500-0510B
BOLT
€ 1.50
23
0832121058
ref: 23
08321-0105A
LOCK WASHER
€ 2.00
24
0832221058
ref: 24
08322-01057
WASHER
€ 2.50
25
4429037001
ref: 25
HOLDER,FUEL TANK FRONT COVER
€ 11.50
26
0110405108
ref: 26
01500-0510B
BOLT
€ 1.50
27
0832121058
ref: 27
08321-0105A
LOCK WASHER
€ 2.00
28
0832221058
ref: 28
08322-01057
WASHER
€ 2.50
29
0944617001
ref: 29
SPRING
€ 8.00
30
0211205088
ref: 30
02112-05087
SCREW
€ 2.00
31
0832121058
ref: 31
08321-0105A
LOCK WASHER
€ 2.00
32
0932910007
ref: 32
CUSHION
€ 3.00
33
4454147000
ref: 33
CUSHION
€ 8.50
34
0932012013
ref: 34
CUSHION
€ 3.00
35
0932012017
ref: 35
CUSHION
€ 2.50
36
0916008002
ref: 36
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
37
0918008067
ref: 37
SPACER(8.5X12X19)
€ 2.50
38
0110708308
ref: 38
01500-08307
BOLT (8X30)
€ 2.50
