HEADLAMP (KOITO)
GS550E 1977 (B) USA (E03)

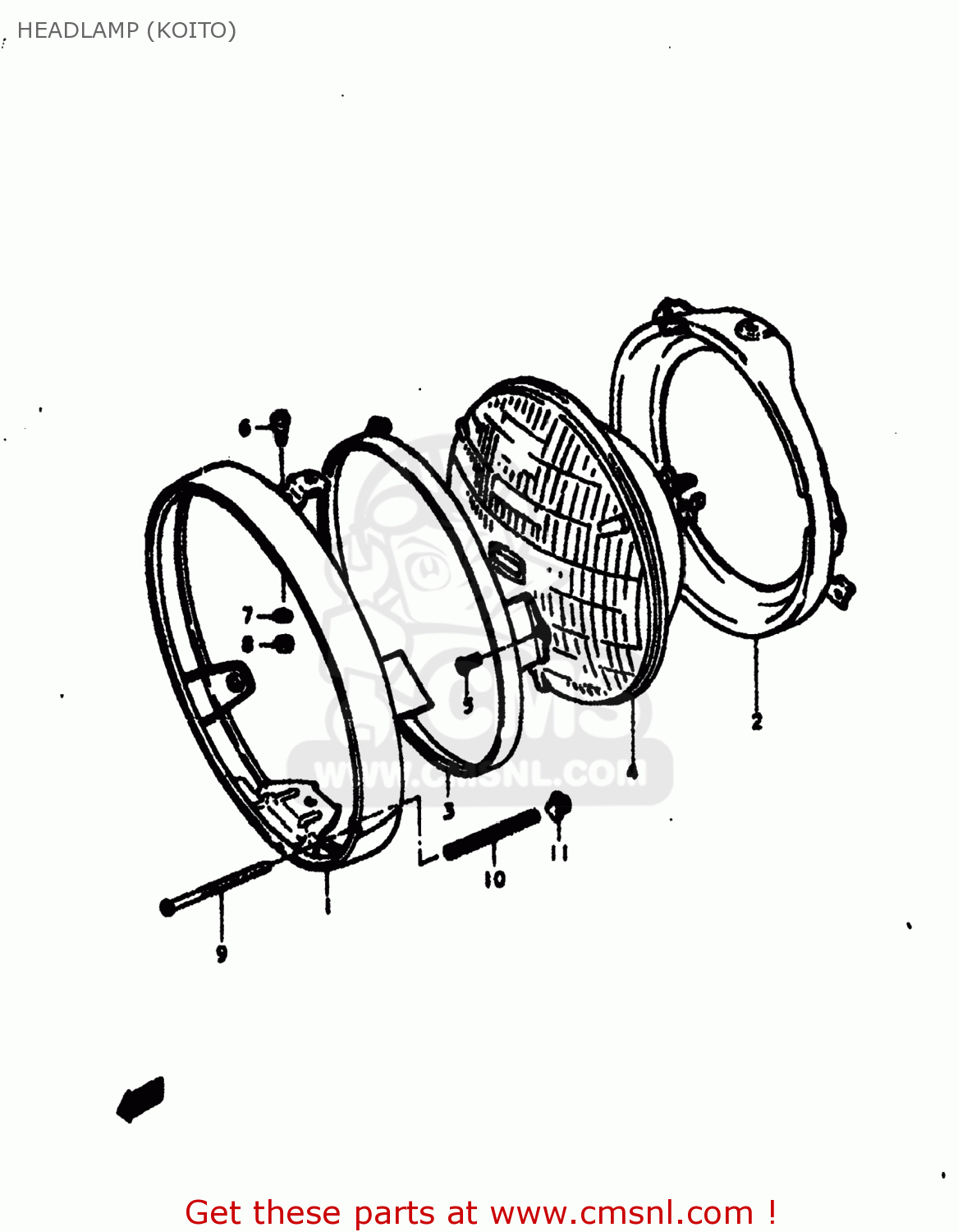

Headlamp (koito) diagram GS550E 1977 (B) USA (E03)
HEADLAMP (KOITO) GS550E 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3510047610
ref:
LAMP ASSEMBLY,HEAD
€ 85.50
1
3511145030
ref: 1
RIM
€ 53.50
2
3513045030
ref: 2
RING
€ 29.50
3
3512745030
ref: 3
RETAINING RING
€ 19.50
4
3512131610
ref: 4
UNIT,HEADLAMP
€ 39.00
5
0211104087
ref: 5
02112-04087
SCREW
€ 1.50
6
3518115611
ref: 6
H/LAMP LENS UNIT FITING SCRE
€ 3.00
7
0832121058
ref: 7
08321-0105A
LOCK WASHER
€ 2.00
8
0831011048
ref: 8
08310-00047
NUT
€ 2.00
9
3515145030
ref: 9
35151-45900
SCREW,HEADLAMP ADJUST
€ 4.00
10
3515431900
ref: 10
SPRING,ADJUSTING
€ 3.50
11
3515215611
ref: 11
NUT
€ 3.50
