CYLINDER

GS550E 1983 (D) USA (E03)

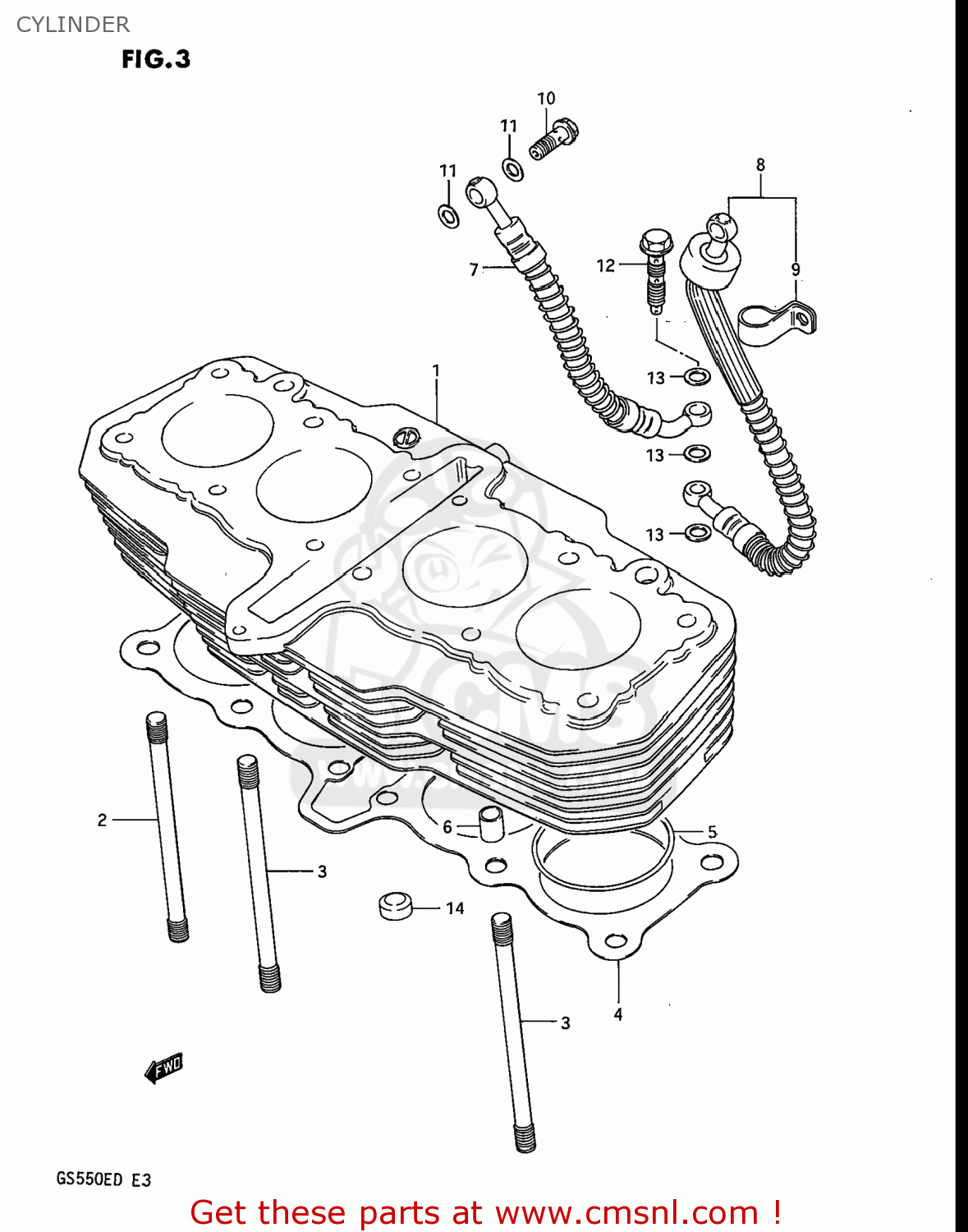

Cylinder diagram GS550E 1983 (D) USA (E03)

CYLINDER GS550E 1983 (D) USA (E03)

CYLINDER GS550E 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121043403
ref: 1

CYLINDER

€ 818.00

2

0910808058
ref: 2
09108-08241

STUD

€ 6.00

3

0910808129
ref: 3
09108-08170

STUD

€ 13.00

4

1124143401
ref: 4
11241-43403-H17

GASKET,CYLINDER (MCA)

€ 20.00

5

0928061001
ref: 5

O RING(D:2,ID:61)

€ 4.00

6

0920611003
ref: 6
04211-11169

PIN

€ 2.00

7

1128143404
ref: 7

HOSE,OIL CRANKCASE,R

€ 87.00

8

1128243404
ref: 8
11283-43404

HOSE,OIL

€ 77.50

9

1128443400
ref: 9

CLAMP,OIL HOSE CRANKCASE

€ 4.00

10

0936008008
ref: 10
09360-08011

BOLT UNION

€ 4.00

11

0916808008
ref: 11
09168-08016

GASKET 8.2X14X1 (NAS)

€ 1.00

12

1128531301
ref: 12

BOLT,OIL PIPE

€ 12.50

13

0916110005
ref: 13
09161-10009

WASHER

€ 2.00

14

1125202300
ref: 14

PAD,CYLINDER HEAD

€ 6.50
