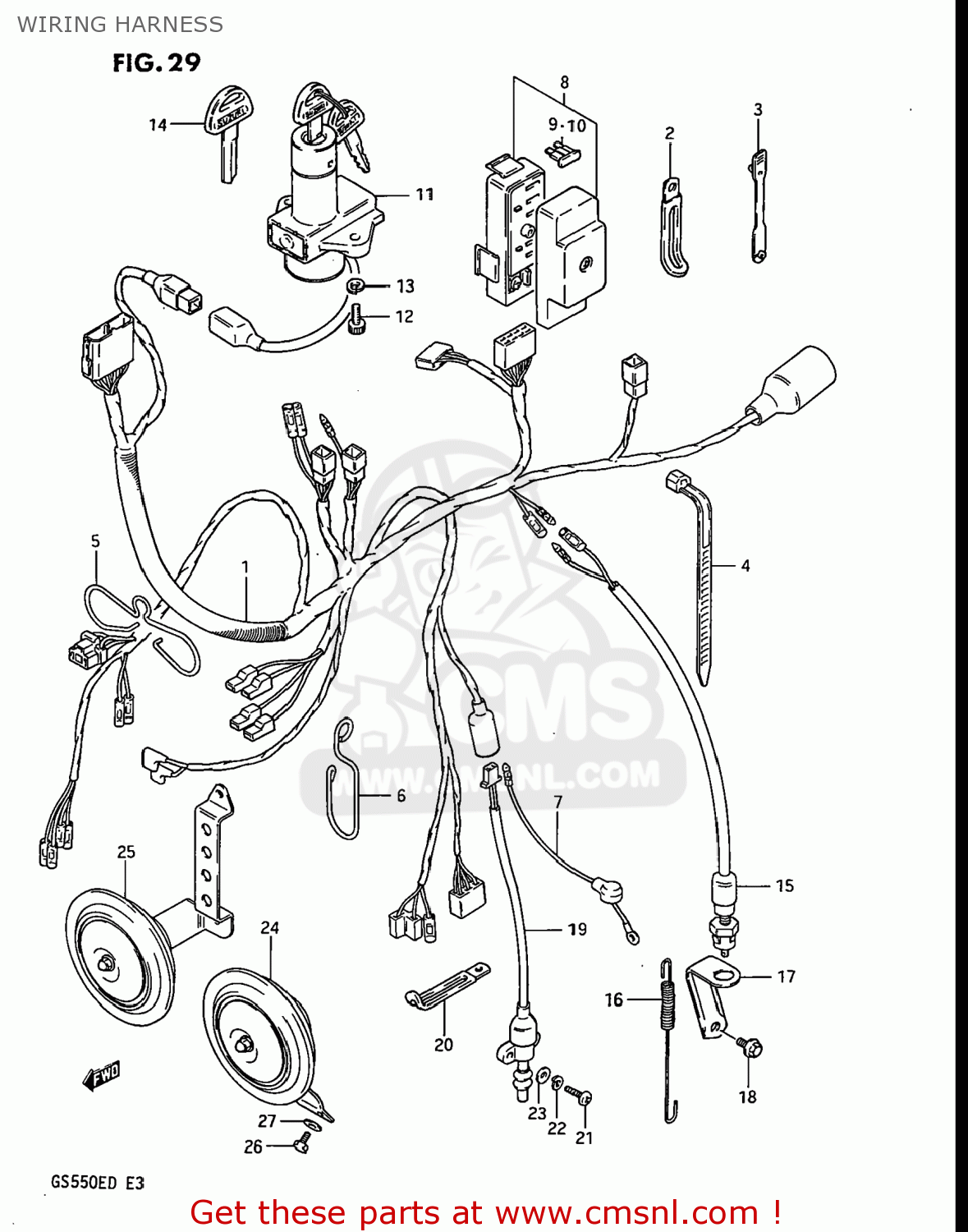

WIRING HARNESS

ref

part #

description

quantity

1-1

3661043400
ref: 1-1
36610-43401

HARNESS,WIRING

€ 179.50

1-2

3661043450
ref: 1-2
36610-43461

HARNESS,WIRING

€ 199.50

2-1

0940406412
ref: 2-1
09404-06432

CLAMP

€ 2.50

2-2

0940406415
ref: 2-2
09404-06433

CLAMP

€ 3.00

3

0940705403
ref: 3

CLAMP,L:88

€ 1.50

4-1

0940711401
ref: 4-1

CLAMP(L:95)

€ 2.50

4-2

0940714403
ref: 4-2

CLAMP(L:125)

€ 2.50

4-3

0940725401
ref: 4-3

CLAMP(L:235)

€ 4.00

5

3661843400
ref: 5

BOOT,WIRING HARNESS

€ 0.00

6

3661849301
ref: 6
36618-49302

BOOT,WIRING HARNESS

€ 4.50

7

3685143410
ref: 7
36851-13A00

WIRE

€ 3.00

8

3674043401
ref: 8

FUSE BOX ASSY

€ 61.00

9

0948110101
ref: 9

FUSE(10A)

€ 2.50

10

0948115101
ref: 10

FUSE(15A)

€ 1.50

11-1

3710049201
ref: 11-1

SWITCH ASSY,IGNITION

€ 141.00

11-2

3710043450
ref: 11-2
37100-43451

LOCK ASSEMBLY,STEERING

€ 122.50

12

3715247010
ref: 12
07130-0616B

BOLT

€ 3.00

13

0832121068
ref: 13
08321-01067

LOCK WASHER

€ 2.50

14

3714647010
ref: 14

KEY,BLANK

€ 15.00

15

3774004572
ref: 15
37740-48071

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

16

0944306005
ref: 16

SPRING

€ 6.00

17

4325143400
ref: 17

BRACKET,BRAKE LAMP SWITCH

€ 0.00

18

0151706108
ref: 18
01550-06107

BOLT

€ 2.50

19

3784031300
ref: 19
37840-31302

SWITCH ASSEMBLY,SIDE STAND

€ 58.50

20

0940406415
ref: 20
09404-06433

CLAMP

€ 3.00

21

0211205208
ref: 21
02112-05207

SCREW 5X20

€ 3.00

22

0832121058
ref: 22
08321-0105A

LOCK WASHER

€ 2.00

23

0832221058
ref: 23
08322-01057

WASHER

€ 2.50

24

3850043400
ref: 24

HORN ASSEMBLY

€ 47.00

25

3850043450
ref: 25

HORN ASSEMBLY

€ 60.00

26

0110706128
ref: 26
01500-06127

BOLT

€ 2.00

27

0832221068
ref: 27
08322-01067

WASHER

€ 2.00
