REAR CALIPERS

GS550E 1983 (D) USA (E03)

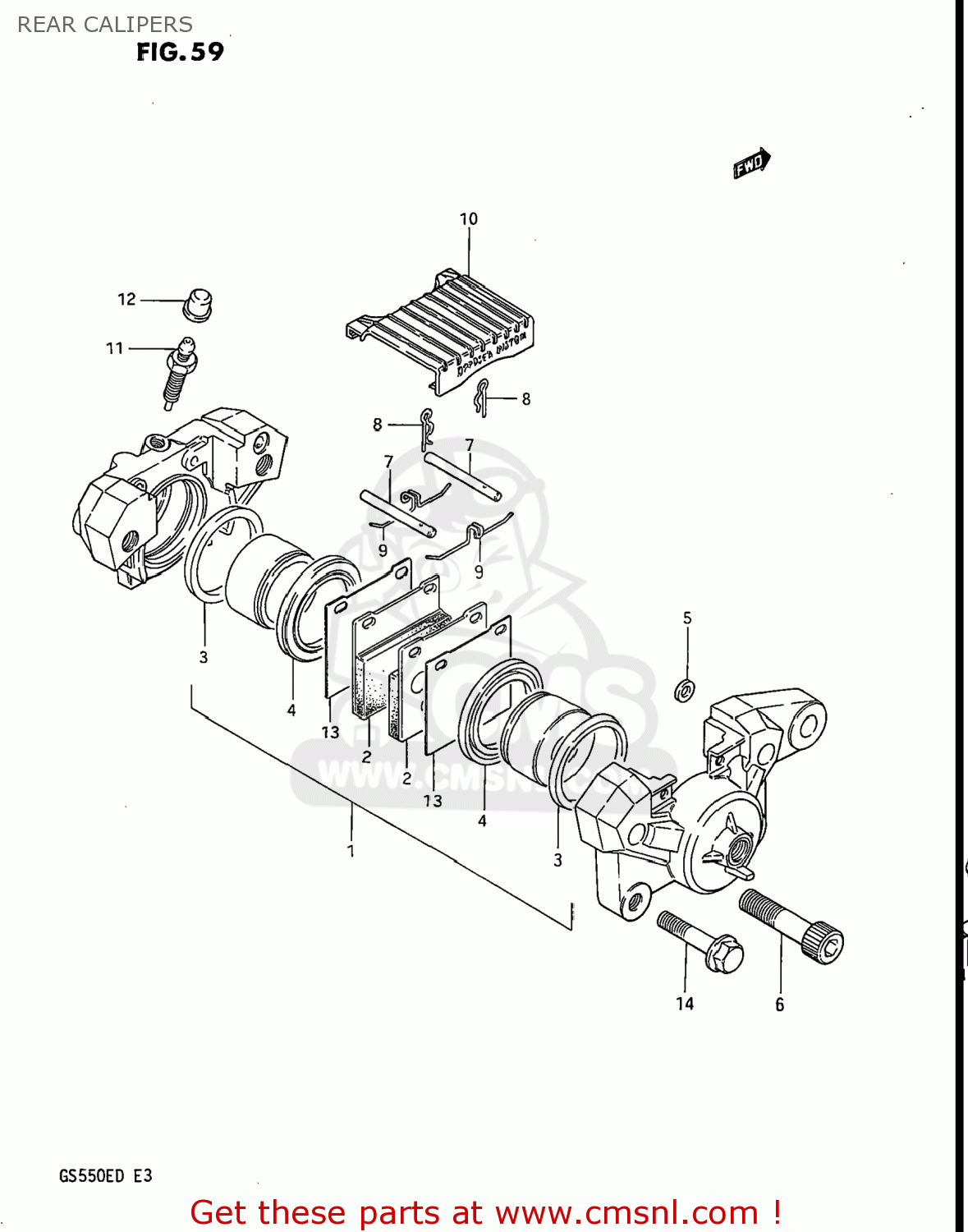

Rear calipers diagram GS550E 1983 (D) USA (E03)

REAR CALIPERS GS550E 1983 (D) USA (E03)

REAR CALIPERS GS550E 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity



6910033400
ref:

CALIPER ASSEMBLY,REAR (ASB)

€ 362.00

1

5913016810
ref: 1
69100-27821

PISTON SET

€ 192.50

2

6913016700
ref: 2
59100-16820

59130-16700 (MCA)

€ 43.00

3

5910718410
ref: 3
69107-05CF0

SEAL,PISTON

€ 17.00

4

5910816700
ref: 4

BOOT

€ 16.50

5

6910734200
ref: 5

SEAL,JOINT

€ 12.00

6

6914534200
ref: 6
59145-05C50

BOLT,CALIPER HOUSING

€ 9.50

7

6914145000
ref: 7

PIN,PAD

€ 6.50

8

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

9

5914316700
ref: 9

SPRING

€ 7.50

10

5915116700
ref: 10
59151-16701

COVER,CALIPER

€ 13.50

11

5912118410
ref: 11

BLEEDER

€ 8.00

12

5912218410
ref: 12
55156-66310

CAP,BREATHER

€ 6.00

13

5937133410
ref: 13

SHIM,PAD

€ 15.00

14

0152708305
ref: 14

BOLT

€ 3.00
